ARRIVING ON SITE
Functions

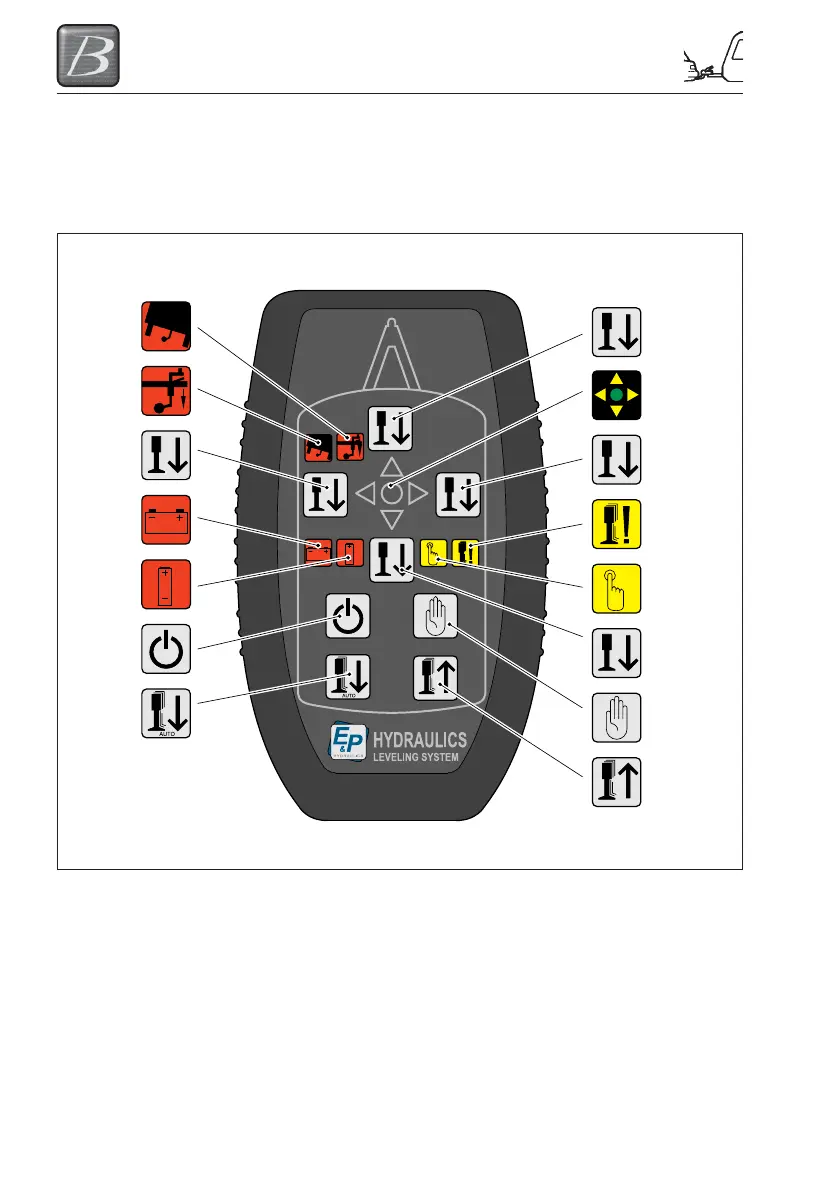

The diagram below shows the appearance of
the remote control. By using the remote
control you can operate the hydraulic
levelsystem.
Function declaration:
(1) LED: Slope too steep
(2) LED: Battery low voltage
(3) LED: Withdraw front wheel
(4) LED: Jacks not (fully) retracted
(5) Button: ON/OFF
(6) Button: Manual mode
(7) Button: Automatic mode
(8) Button: Retract all Jacks
(9) LED: Manual mode
(10) Button: Left side
(11) Button: Rear side
(12) Button: Front side
(13) Button: Right side
(14) LED: Level indicator
(15) LED: E&P logo
1
3
10
2
15
5
7
12
14
13
4
9
11
6
8
