ARRIVING ON SITE
Retracting the jacks
Follow the procedure below to retract the axle and corner supports.

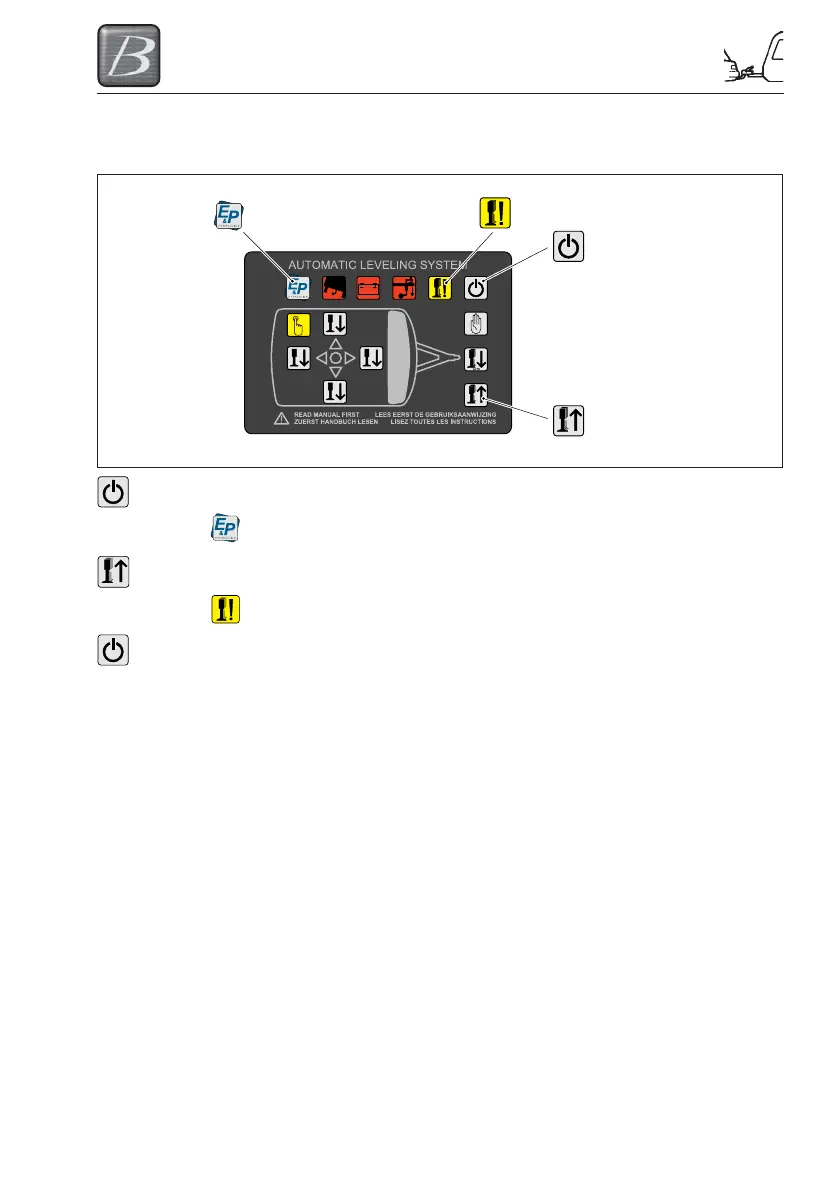

Step 1 Press 1x on the button “ON/OFF” (no.5) to switch the levelsystem ON.
The “E&P-logo” LED lights up, indicating that the levelsystem is switched
on.
Step 2 Press 1x on the button “RETRACT ALL JACKS” (no.8) once.
The indicator LED “JACKS NOT FULLY RETRACTED” (no.4) goes out
when all jacks have been fully retracted.
Step 3 Press 1x on the button “ON/OFF” (no.5) to switch the levelsystem OFF.
IMPORTANT: Before departure ensure all supports have been retracted.
Extra Extra
Extra Extra
Extra functions
Calibration (setting the zero point)
The calibration procedure described below has already been carried out at your dealer/installer.
You don’t have to perform this procedure by yourself. E&P Hydraulics has decided to include this
chapter as an extra in this manual in case of failure and/or service & repair matters.
Consider setting the zero point** as a condition to make it possible to level the caravan
automatically and/or manually. When this operation, for some reason, has not been done or has
been carried out incorrectly, it is not possible to level the caravan.
**The zero point is the point (level) at which the hydraulic levelling system (in an automatic cycle)
returns.
Start: Manual levelling
Before automatic levelling can be activated, you must set the zero point. For setting the zero
point, you must FIRST perform the manual levelling procedure.
REMARK: Do this by placing a spirit level in the centre of the caravan.
ATTENTION! Never put the rear brackets first to the ground. This in case creating too
much load on the caravan.
ON/OFF
(no.5)
RETRACT ALL
JACKS (no.8)
