eldoLED LINEARdrive 720D - Manual Configuration; Operation Mode Selection; LED Group Settings; Standalone and Networked Operations

Page 2Rev 4-7-2022 The content of this document is subject to change without notice.

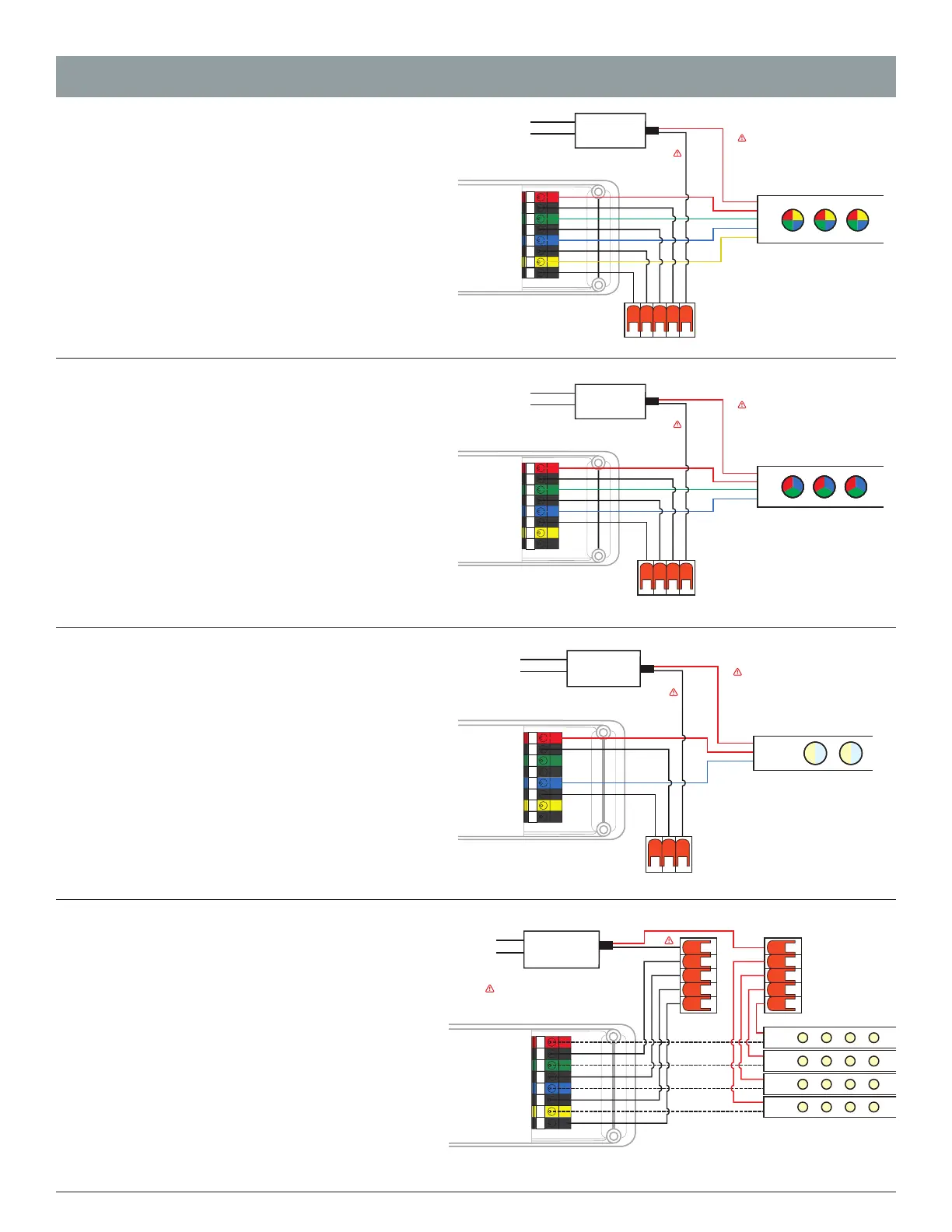

Wiring Diagram LINEARdrive 720D (LIN720D3)
Connecting an RGBW LED Strip
Maximum current per output: 6 Amps
Use a star connection for the ground wires and keep the
length of the wires that deal with high amperages under
10 - 15cm / 3.9 - 5.9 inches.
Conguration of the LED groups:
Press M and + sumultaneously. In the LED menu choose
RGBW and save this setting by pressing M.
LINEARdrive 720D
LED Group 1
Group 1 GND
LED Group 2
Group 2 GND
LED Group 3
Group 3 GND
LED Group 4
Group 4 GND
V+
R
G
B
W
Pos (+)
Line
Neutral
Neg (-)
Terminal Block
RGBW LED Strip
PSU
PSU output current must be a minimum
of 24 Amps (4 outputs at 6 Amps max
current per output)
24A
LINEARdrive 720D
LED Group 1
Group 1 GND
LED Group 2
Group 2 GND
LED Group 3
Group 3 GND
LED Group 4
Group 4 GND
V+
R
G
B
Pos (+)
Line
Neutral
Neg (-)
Terminal Block
RGB LED Strip
PSU
PSU output current must be a minimum
of 18 Amps (3 outputs at 6 Amps max
current per output)
18A
LINEARdrive 720D
LED Group 1
Group 1 GND
LED Group 2
Group 2 GND
LED Group 3
Group 3 GND
LED Group 4
Group 4 GND
V+
Cool White -
Warm White -
Pos (+)
Line
Neutral
Neg (-)
Terminal Block
LED Strip
PSU
PSU output current must be a minimum
of 12 Amps (2 outputs at 6 Amps max
current per output)
12A
LINEARdrive 720D
LED Group 1
Group 1 GND
LED Group 2
Group 2 GND
LED Group 3
Group 3 GND
LED Group 4
Group 4 GND
Pos (+)
Line
Neutral
Neg (-)
White LED Strips
PSU
PSU output current must be a minimum
of 24 Amps (4 outputs at 6 Amps max
current per output)
24A
Terminal Block
V+
V-
V+
V-
V+
V-
V+
V-
Connecting an RGB Strip
Maximum current per output: 6 Amps
Use a star connection for the ground wires and keep the
length of the wires that deal with high amperages under
10 - 15cm / 3.9 - 5.9 inches.
Conguration of the LED groups:
Press M and + sumultaneously. In the LED menu choose
RGB and save this setting by pressing M.
Connecting a Tunable White LED Strip
Maximum current per output: 6 Amps
Use a star connection for the ground wires and keep the
length of the wires that deal with high amperages under
10 - 15cm / 3.9 - 5.9 inches.
Conguration of the LED groups:
Press M and + sumultaneously. In the LED menu choose
CCWW and save this setting by pressing M.
Connecting Four White or Self-Colored LED Strips
Maximum current per output: 6 Amps
Use a star connection for the ground wires and keep the
length of the wires that deal with high amperages under
10 - 15cm / 3.9 - 5.9 inches.
Conguration of the LED groups:
Press M and + sumultaneously. In the LED menu choose
1-4L and save this setting by pressing M.
