Eldom WG50 - General Description; Technical Data

A
F
B
H
D
E
I
J
K
L
M
N
C
G
- power: 40W
- voltage supply: 230V ~ 50Hz

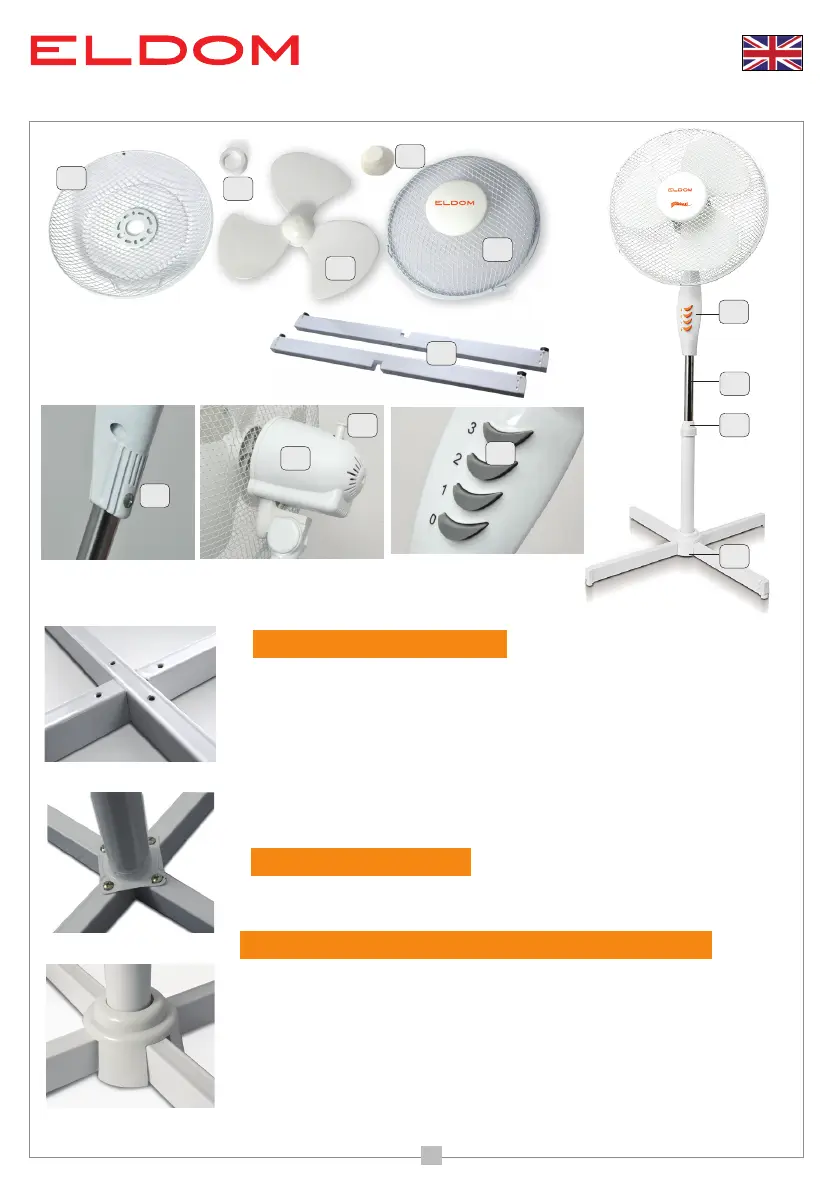

A. Protective mesh - rear
B. Nut
C. Airscrew
D. Nut securing the airscrew
E. Protective mesh - front
F. base feet
G. ArmH. Shank
I. height regulation locki
J. Base
K. Arm assembly lock
L. Oscillation switch
M. Body
N. Switch and gears: I, II and II
Before the first use, unpack the unit and put particular elements together.
- unscrew screws from the base feet (F) and couple the feet of the base
together (cross), fig. 01
- using the screws couple the feet (F) with the collar of the base (J), fig. 02
- remove the shield from the base (J), fig. 03
- couple the arm (G) with the body (M) together with the shank (H). To do
the above, slide the arm into the shank (if it is necessary loosen the lock (K))
and lock it by tightening the lock (K)
- unscrew the nuts (B,D) from the body’s shaft (M)
- fix the rear protective mesh (A). Adjust the holes in the mesh to the clamps of the
body, fig. 04
- fix the nut (B), twisting it clockwise, fig. 5
USER’S MANUAL FOR
ROOM FAN WG50
GENERAL DESCRIPTION
ASSEMBLY AND THE APPLIANCE OPERATION
fig. 01
fig. 02
fig. 03
TECHNICAL DATA
