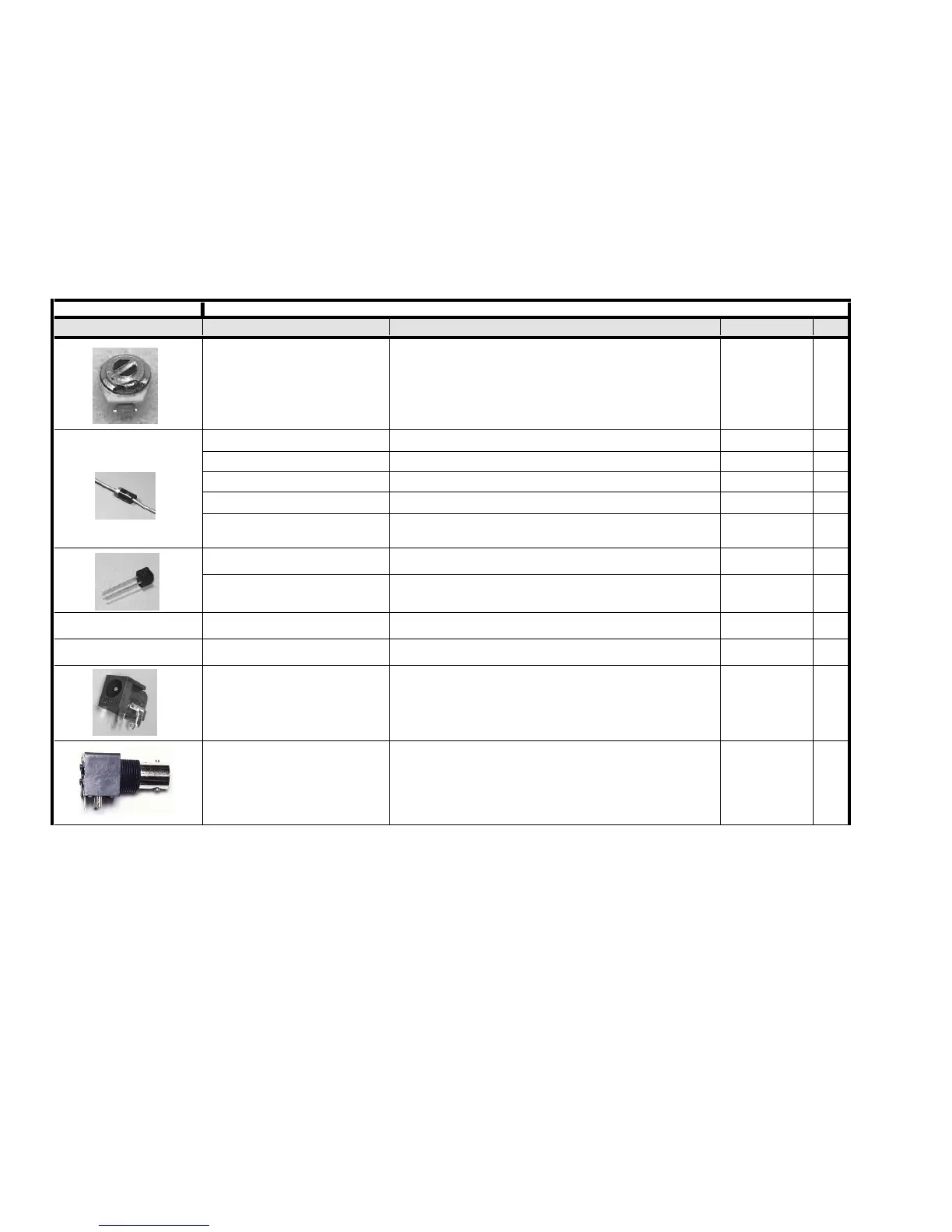

Appendix A K1 RF Board Parts List
PICTURE Designators Description Part Number
QTY
C13, C20 Ceramic trimmer capacitor, 8-50pF E530000
2
D2, D15 1N5711 Shottky diode, small glass pkg E560004
2
D5, D9-D14, D18 1N4007 PIN diode, large plastic pkg, black E560001
8
D19 1N4753 zener diode, 36 V, 1 watt E560007
1
D1, D17 1N4148 switching diode, small glass pkg E560002
2
D16
SB530 Shottky diode, 5A, very large plastic pkg (black)
(alternate: 1N5821) E560003
1
D4 MV209 E560006
1
D3, D6, D7, D8 1SV149; TO-92 pkg E560005
4
J6, J7, J8 8-pin 0.1" conn., female; Samtec SSW-108-01-G-S. E620005
3
J1 Supplied with noise blanker option (KNB1) E620005
0
J4 2.1 mm DC barrel connector E620026
1
J5 BNC jack E620020
1
