ELECRAFT K1 - Appendix A K1 RF Board Parts List (continued)

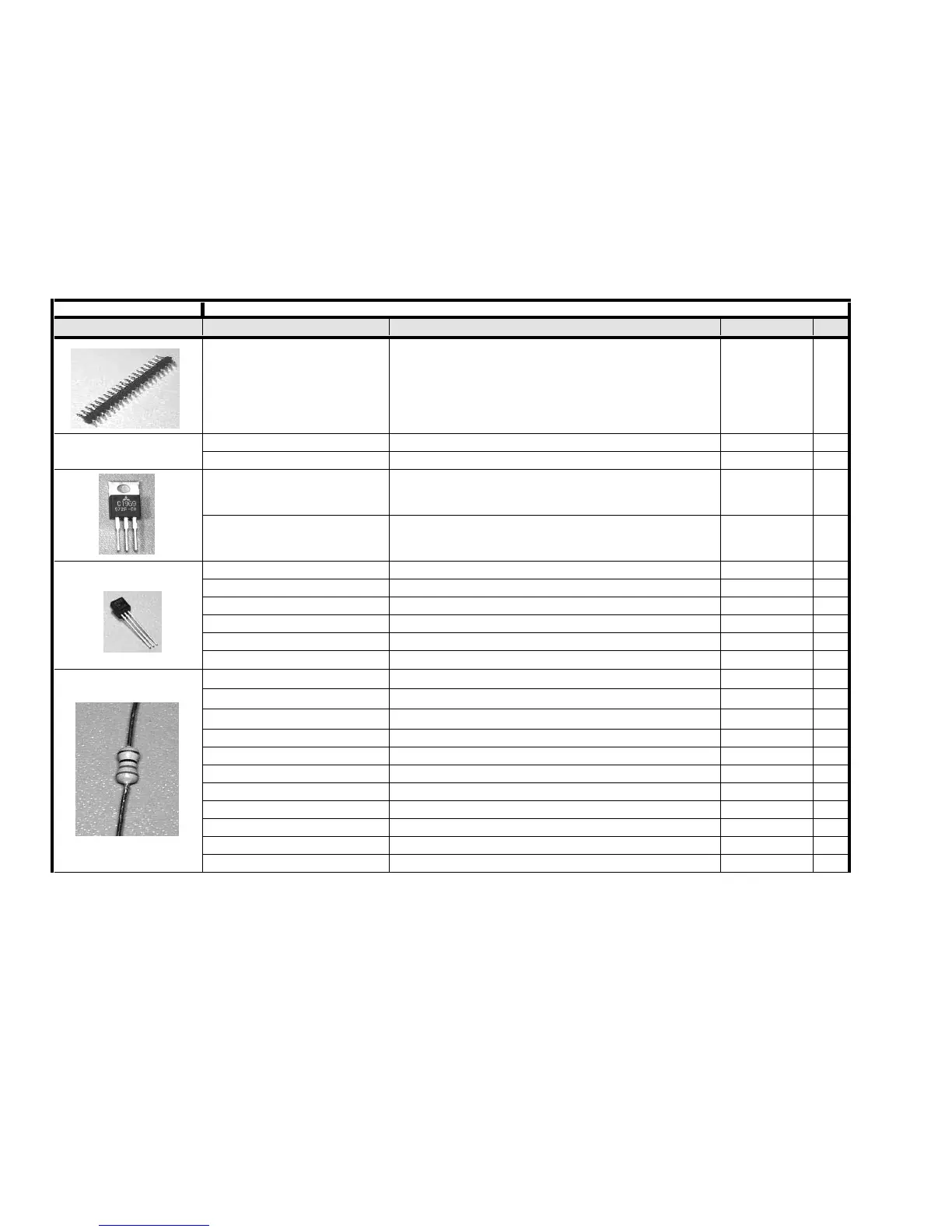

Appendix A K1 RF Board Parts List
PICTURE Designators Description Part Number
QTY
P1
20 x 1 ,male, RA; 20 pin male, right angle. To Front Panel,
J1 E620029
1
P2 2 pin, male, 0.1" conn with locking ramp; for speaker E620024
1
P3 3 pin, male, 0.1" conn.; RF detector select E620007
1
Q6 2SC2166; driver E580007
1
Q7 2SC1969; PA (Power Amp) E580008
1
Q5, Q8, Q11 J309, JFET, TO-92 E580009
3
Q9 2N3906, PNP, TO-92 E580000
1
Q3, Q14 2N4124, NPN, TO-92 E580010
2
Q1, Q10 2N7000, MOSFET, TO-92 E580002
2
Q2 MPSA14, NPN Darlington, TO-92 E580011
1
Q4 ZVN4424A, MOSFET, Hi-V; Thinner TO-92 Style E580005
1
R37 226 Ω, 1/4W, 1%; color code: red-red-blue-black E500033
1
R36 1.50 k, 1/4W, 1%; color code: brown-green-black-brown E500034
1
R3 8.25 k, 1/4W, 1%; color code: gray-red-green-brown E500065
1
R23 1.5 Ω, 1/4W, 5%; color code: brown-green-gold E500044
1
R30 3.3 Ω, 1/4W, 5%; color code: orange-orange-gold E500064
1
R15 10 Ω, 1/4W, 5%; color code: brown-black-black E500054
1
R22, R31, R32 33 Ω, 1/4W, 5%; color code: orange-orange-black E500036
3
R16, R18 75 Ω, 1/4W, 5%; color code: violet-green-black E500037
2
R11 82 Ω, 1/4W, 5%; color code: gray-red-black E500038
1
R17, R35 120 Ω, 1/4W, 5%; color code: brown-red-brown E500022
2
R29, R38 270 Ω, 1/4W, 5%; color code: red-violet-brown E500039
2
Page 4 RF
