Appendix A

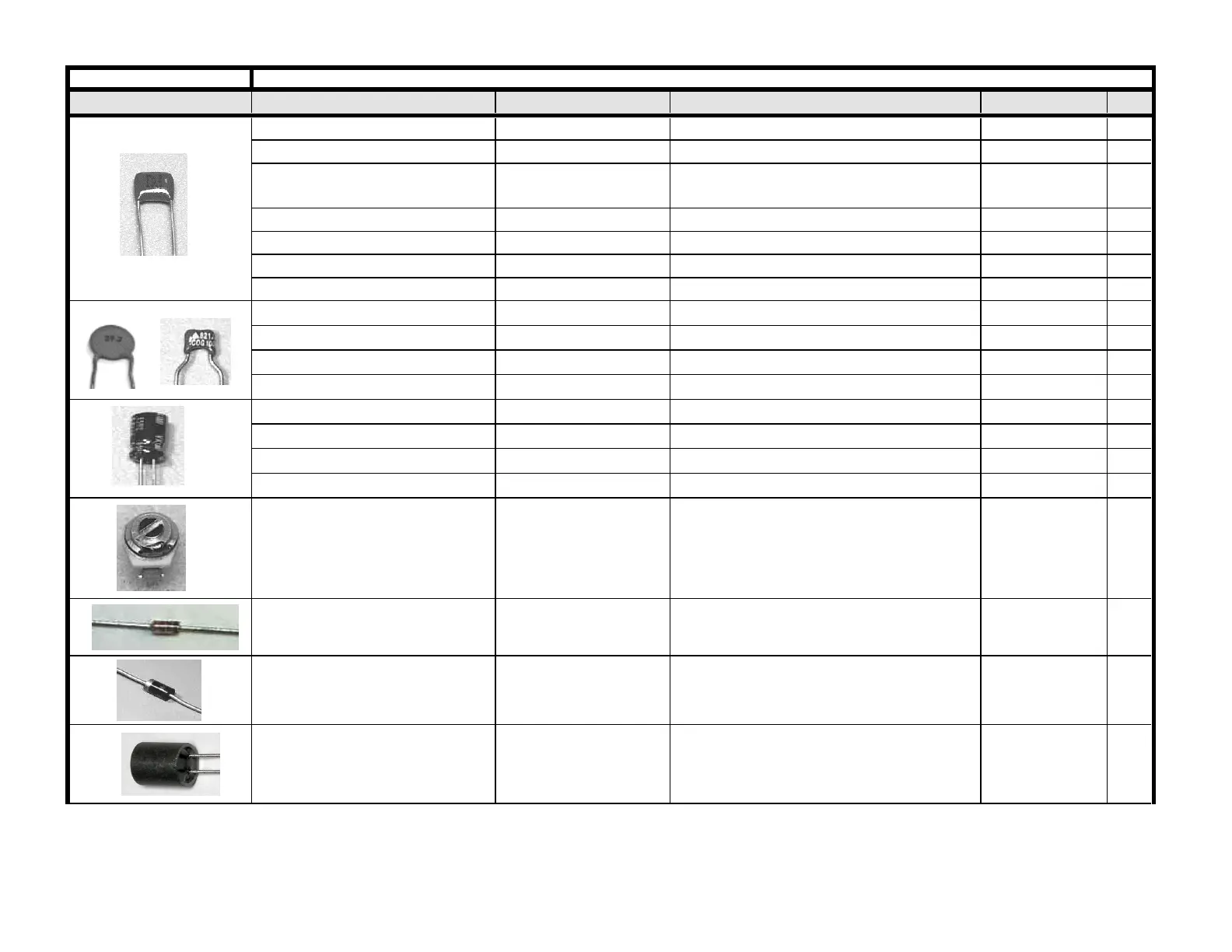

Appendix A K2 Control Board Parts List (p/n E850002)
PICTURE Designators Value Description Part Number
QTY
C2, C20, C34, C43 .001 Monolithic Cap, "102" E530001
4
C12, C24, C36 .0027 Monolithic Cap, "272" E530055
3
C3, C5, C9, C10, C11 C17, C18,
C23, C35, C37, C39, C40, C41 .01 Monolithic Cap, "103" E530009
13
C27 .022 Monolithic Cap, "223" E530056
1
C6, C14, C16, C19, C30, C31 .047 Monolithic Cap, "473" E530025
6
C25, C26, C42 0.1 Monolithic Cap, "104" E530011
3
C4 0.47uF Monolithic Cap, "474" E530057
1
C21 33 NPO disc cap, "33" or "330" (see page 9) E530064
1
C8 39 NPO disc cap, "39" or "390" E530036
1
C7 330 NPO disc cap, "331" E530043
1
C38 680 NPO disc cap, "681" E530053
1
C1, C33 2.2µF Electrolytic cap E530023
2
C13, C32 22µF Electrolytic cap E530012
2
C15 100µF Electrolytic cap E530061
1
C28, C29 220µF Electrolytic cap E530062
2
C22 var, 8-50pF
Ceramic trim cap (Green paint on screw
with RED Marking on side; or no markings
at all.) E540000
1
D1, D2 1N4148 Silicon switching diode, small glass body E560002
2
D3 1N5817 Shottky diode, black body E560008
1
L1 82 mH inductor, 5% Shielded, cylindrical, dark gray E690015
1
