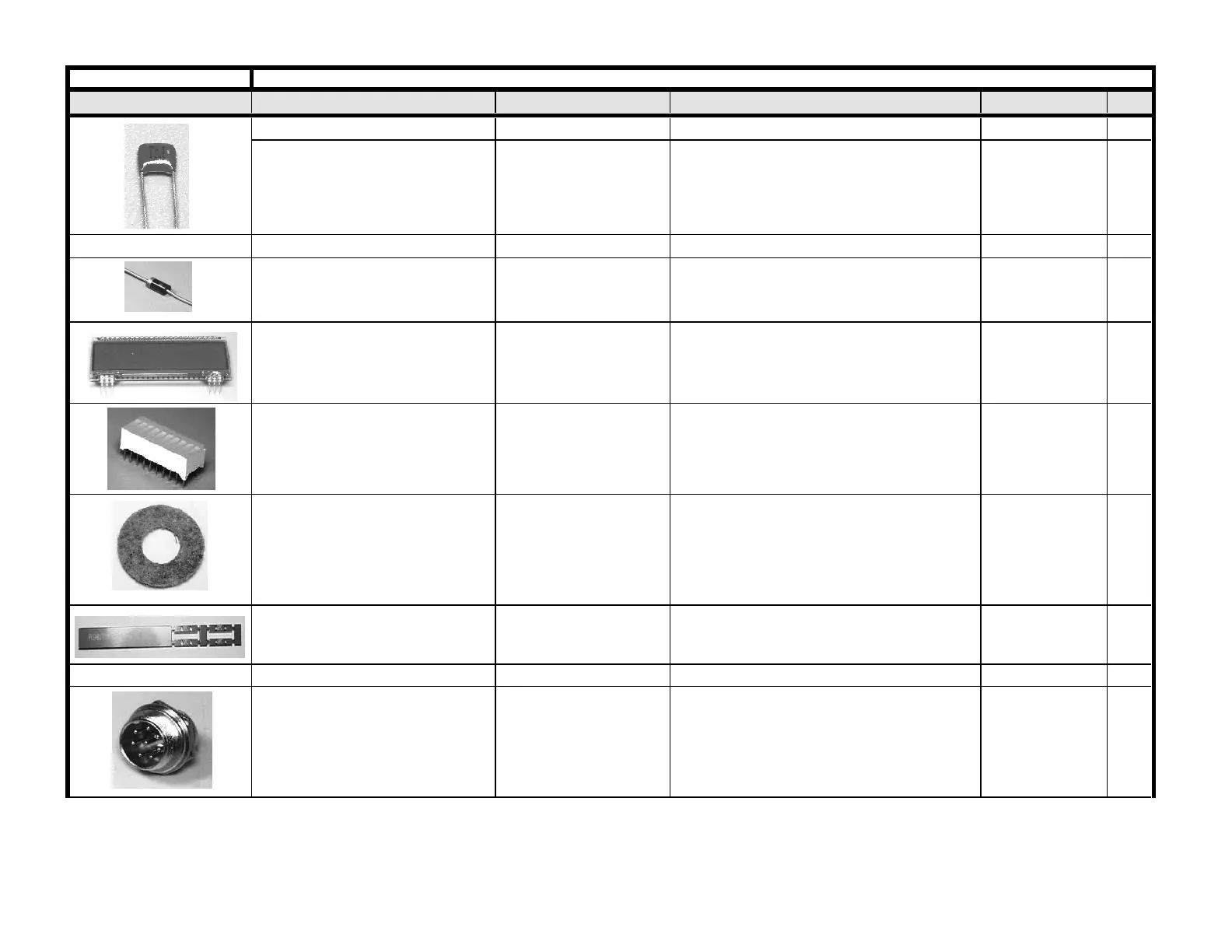

Appendix A K2 Front Panel Board Parts List (p/n E850003)
PICTURE Designators Value Description Part Number
QTY
C1, C3 .047 Monolithic, "473" E530025
2
C2, C9 .01 Monolithic, "103"
E530009 2
D2, D3 LCD Backlight Assy LED Backlights mounted in Diffuser E570004
1
D4, D5, D6 1N5817 (BLACK) E560008
3
DS1 VIM-838-DP 4-character, 7-Segment multiplexed LCD E570003
1
DS2 10LED array Hi-eff. Green LED bargraph E570005
1
HW Felt Washer, 1" OD Mounts under main tuning knob E700033
1
HW
Spacer Set (made from
PCB stock)
(4) 0.75" spacers for Backlight LEDs; (1)
spacing tool for push button switches E100079
1
J1 socket FP to RF Board
E620025 1
J2 8p male Mic Jack; Male; PCB Mount, Round E620034
1
