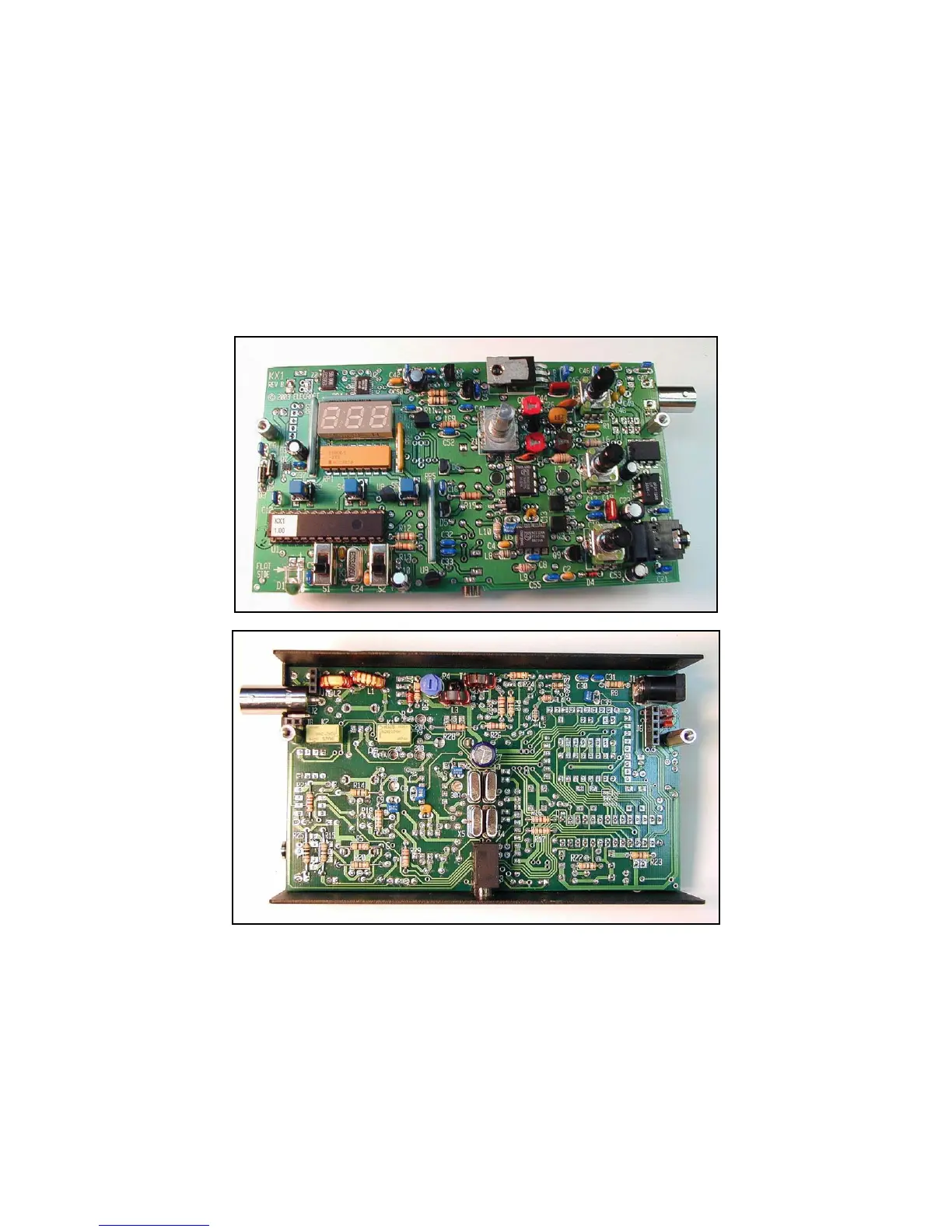

Appendix D. KX1 Assembly Photographs
Assembled PC
board, top view
Assembled PC
b
oard, bottom view,
with top cover
installed
