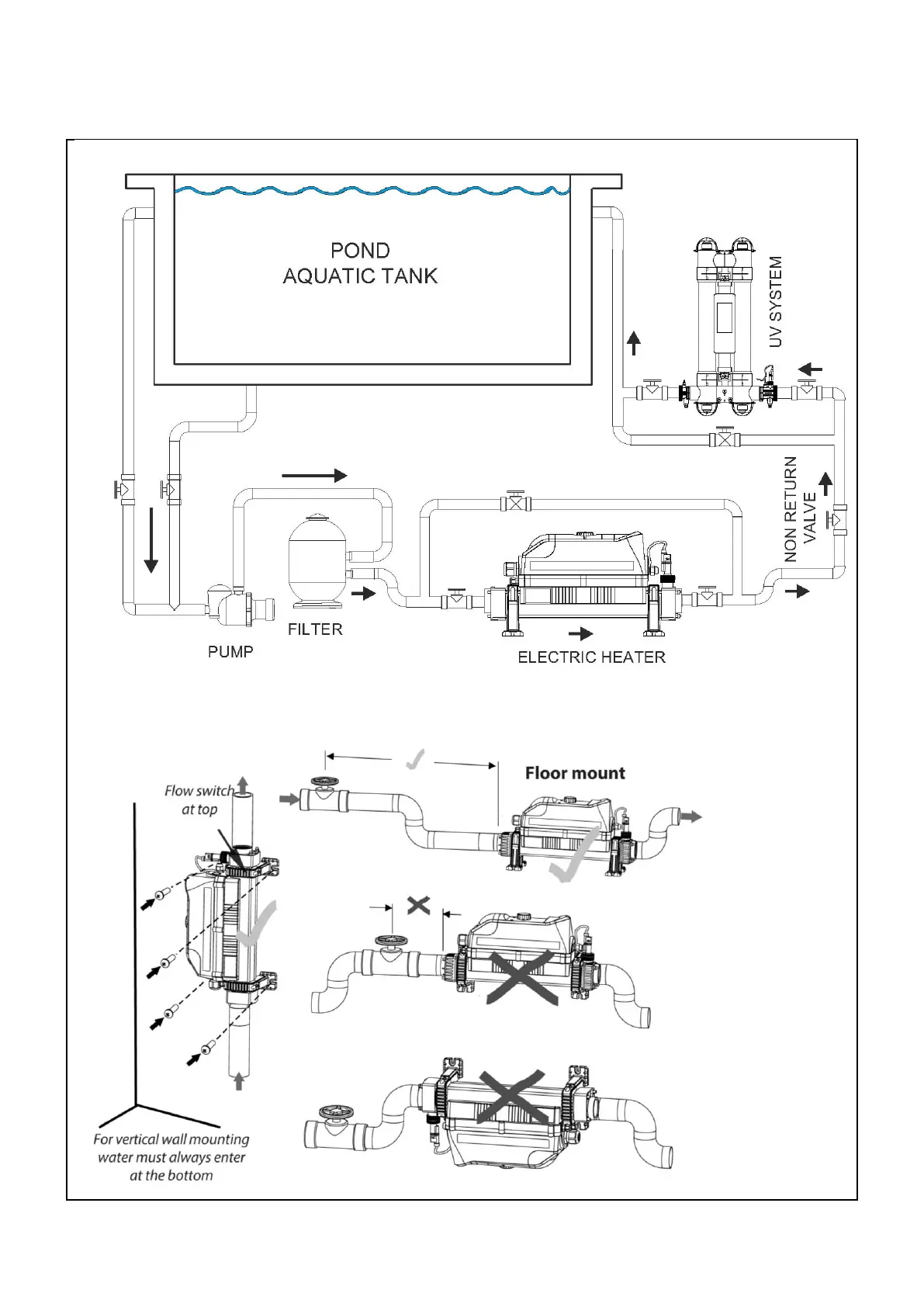

2.2 Pipe work
The heater should be installed at a low point in the filtration system. It should be positioned downstream
of (after) the filter and upstream of (before) any dosing or other water treatment plan (see Fig 3).
Fig.3
`
Fig.4
