8. WIRE THE DIMMING SWITCH (if applicable)
The dimming switches will not be compatible with Ava or Keen technology upgrades.
If you are connecting the lighted mirror to a dimming switch, follow these instructions. If not, skip to step 9.

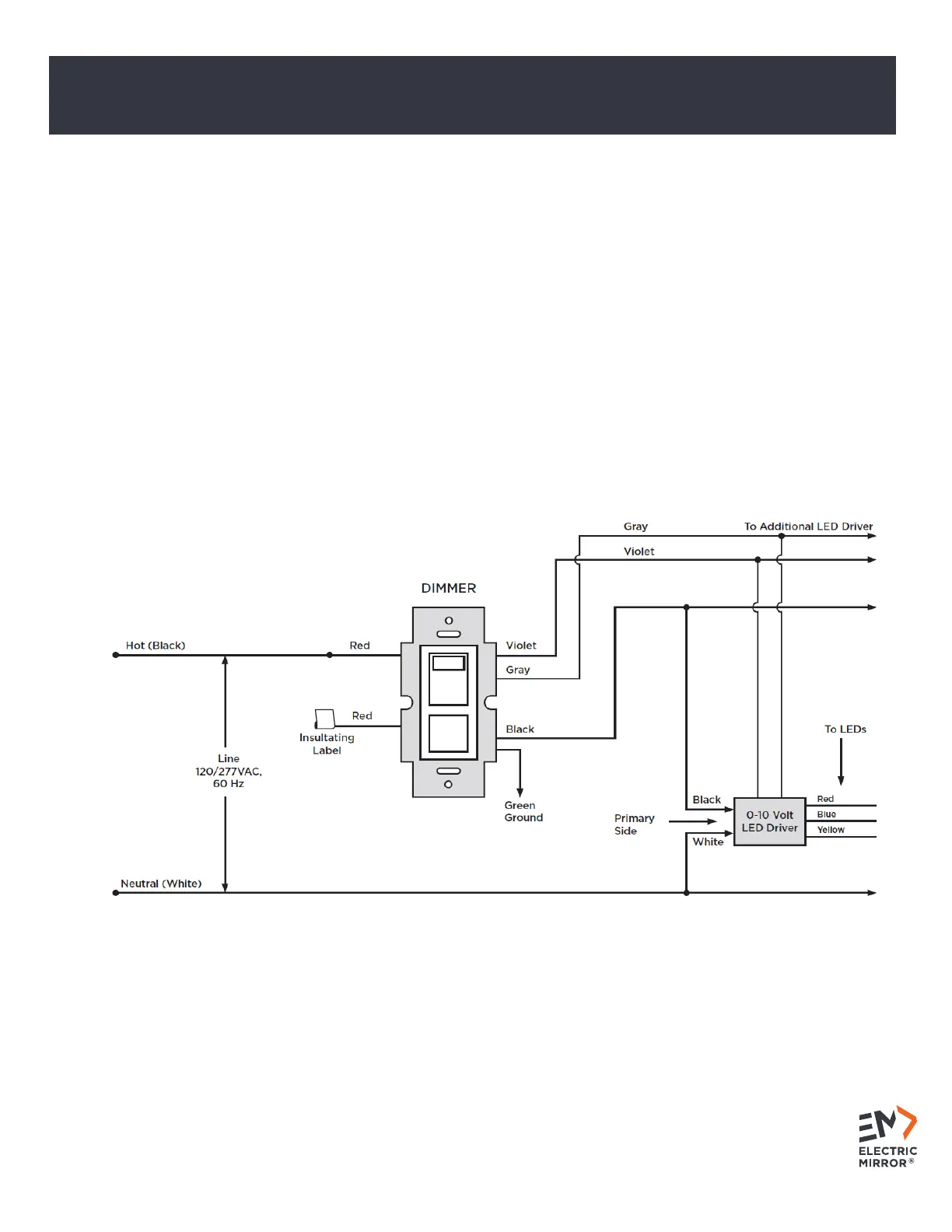

A. D1 0-10 Volt Dimming
Electric Mirror recommends Leviton IP710-LFZ (not included) for 0-10 Volt Dimming.
A 0-10 Volt control signal is a DC voltage that varies between zero and ten volts. The controlled lighting should
scale its output so that at 10 V, the controlled light is at 100% of its potential output, and at 0 V it should be at
the lowest possible dimming level. The low voltage wires must be run in separate conduit from the line voltage
supply. The chassis has two knockouts to accommodate the two sets of wire.
A second luminaire disconnect is provided for the low voltage dimming wires, refer to luminaire connector notes
above for information. Match colored wires, purple to purple, grey to grey.
