Warning! Do not attempt to lift any of the scooter components unless you are capable of doing so. The
weight for each component is shown in the Technical Specification.
Warning! Do not attempt to lift the chassis unassisted - back or other injury may result!

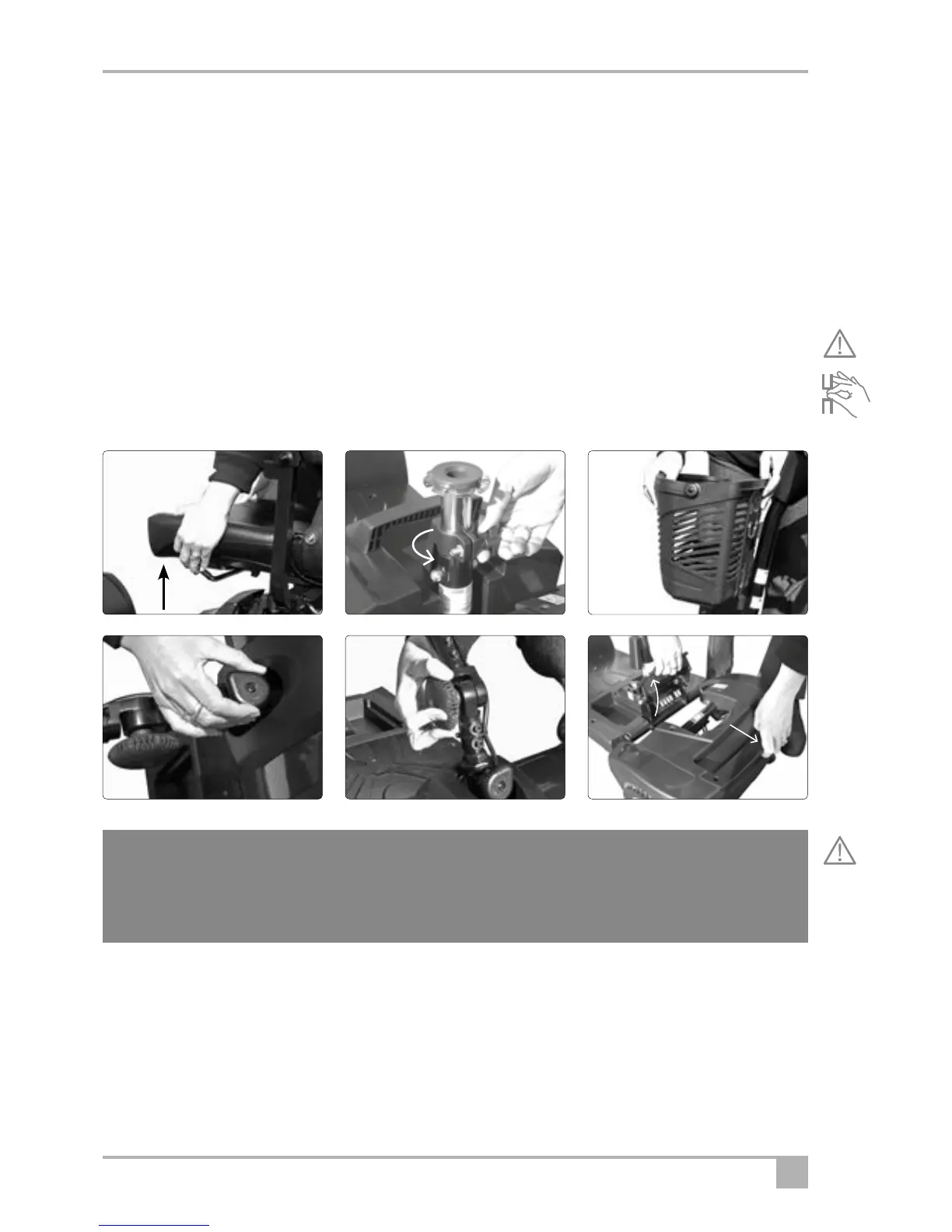

Disassembly:
• Turn the power off. (Turn key to the off position and remove from the scooter).
• Remove the seat by squeezing the seat swivel lever and lifting the seat off the seat post. (Fig 1)
• Fold the seat arms down & the seat-back forward on itself for easy storage.
• Remove the battery pack by loosening the battery securing clamp (Fig 2), and rotate it so that the
clamp no longer holds the battery in position. Now lift the battery clear. - Warning, these parts are heavy!
• Remove the shopping basket by lifting /sliding up. (Fig 3)
• Lock the steering position by pulling and then twisting the transport tiller lock knob with the
wheels pointing straight forwards. (Fig 4)
• Fold the tiller unit down by first loosening the tiller securing thumb-wheel, lower the tiller to the
desired position and re-tighten the thumb-wheel (Fig 5).
• Separating the chassis The two halves of the chassis can also be split apart to make transportation
more easy. To do this, raise the transaxle release handle with one hand. With the other hand grasp the
handle at the rear of the scooter and pull which will separate the front and rear halves. (Fig 6)
Be careful not to pinch your fingers between the two halves of the chassis
• Safely stow the component parts in the boot of the car.
