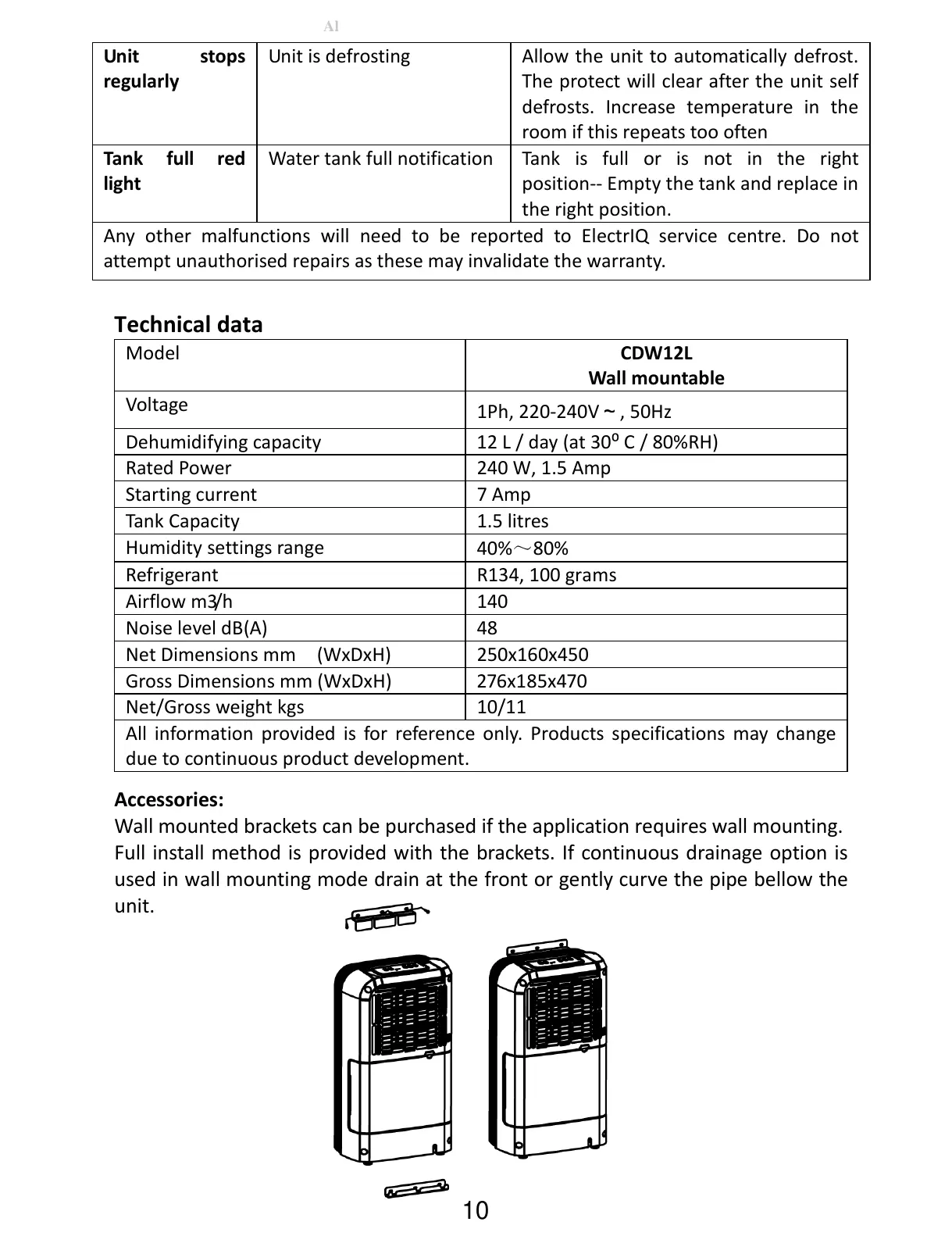

Unit stops
regularly
Unit is defrosting Allow the unit to automatically defrost.
The protect will clear after the unit self
defrosts. Increase temperature in the
room if this repeats too often
Tank full red
light
Water tank full notification Tank is full or is not in the right
position-- Empty the tank and replace in
the right position.
Any other malfunctions will need to be reported to ElectrIQ service centre. Do not
attempt unauthorised repairs as these may invalidate the warranty.
Technical data
Model CDW12L
Wall mountable
Voltage
1Ph, 220-240V
～
, 50Hz
Dehumidifying capacity 12 L / day (at 30⁰ C / 80%RH)
Rated Power 240 W, 1.5 Amp
Starting current 7 Amp
Tank Capacity 1.5 litres
Humidity settings range
40%
～
80%
Refrigerant R134, 100 grams
Airflow m3/h 140
Noise level dB(A) 48
Net Dimensions mm (WxDxH) 250x160x450
Gross Dimensions mm (WxDxH) 276x185x470
Net/Gross weight kgs 10/11
All information provided is for reference only. Products specifications may change
due to continuous product development.
Accessories:
Wall mounted brackets can be purchased if the application requires wall mounting.
Full install method is provided with the brackets. If continuous drainage option is
used in wall mounting mode drain at the front or gently curve the pipe bellow the
unit.
10
