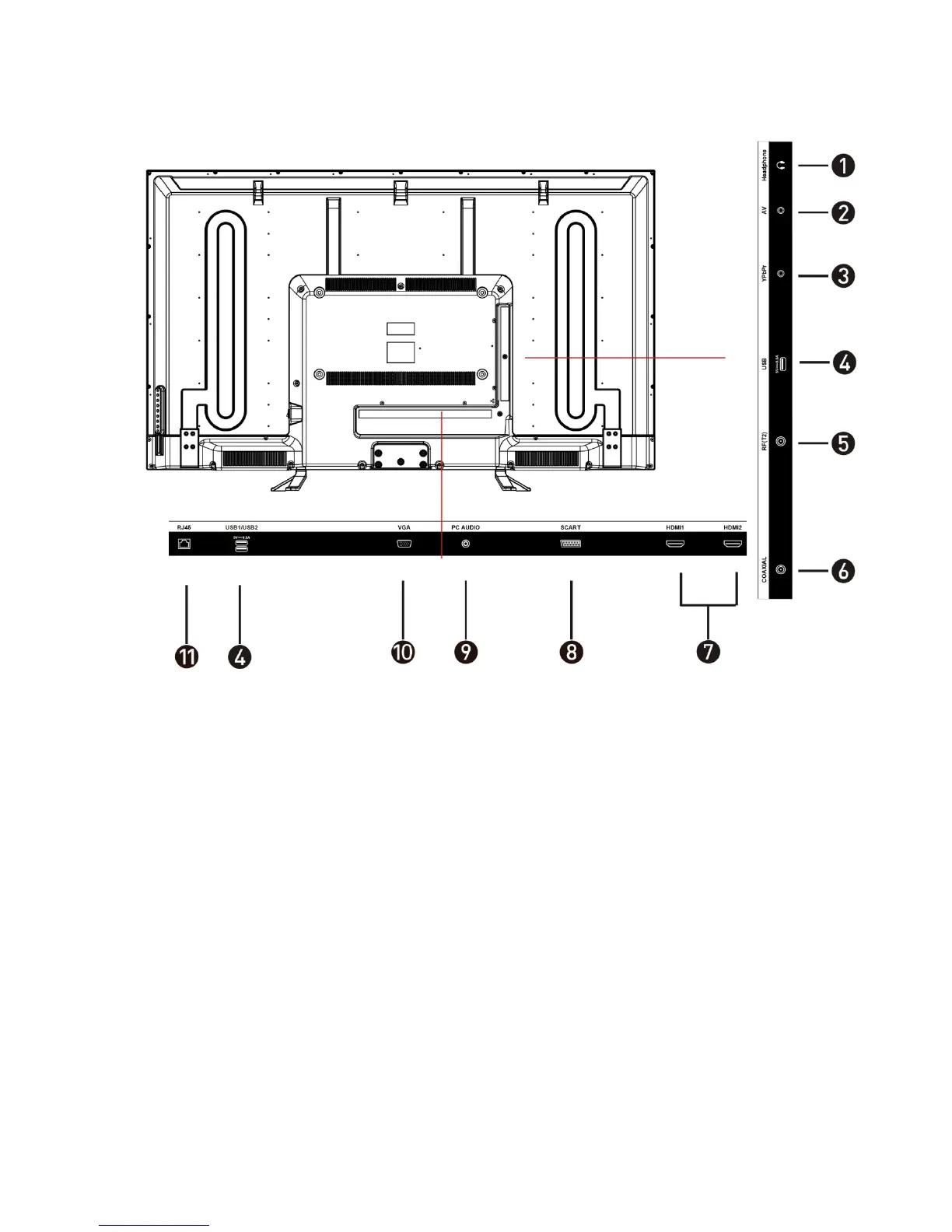

INPUT / OUTPUT TERMINALS
1. Headphones
2. AV input terminal
3. YPbPr: Connect to the YPbPr video output terminal of the DVD player
4. Back USB x2. Provides access to SMART TV. Connect smart remotes,
keyboards, gaming accessories or usb flash drive
Side USB x 1 can be used for DTV recording, timeshift or as a media player
file.
Note: only connect low power USB flash drives or externally powered hard
drives to the 3x USB ports as they only provide 0.5 Amps power
5. RF: Antenna connection
6. Coaxial output terminal
7. HDMI x2
8. Scart input terminal
9. PC Audio: connect it to the audio output terminal of the PC
10. VGA: PC Video input
11. RJ45: Smart TV ethernet connection can be used instead of WIFI
connection
