r
(
L

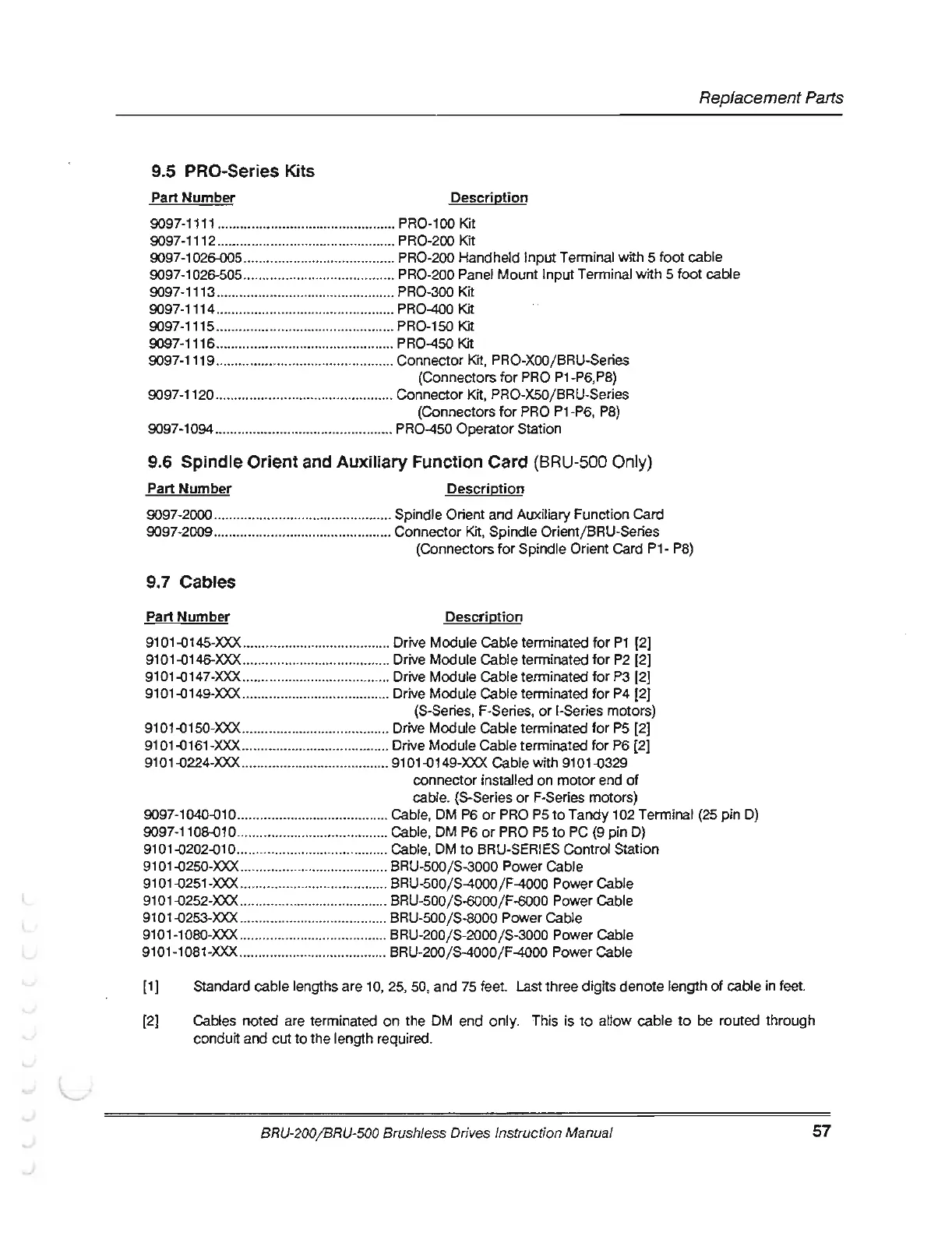

Replacement Parts
9.5 PRO-Series Kits
Part Number
Descr
i
ption
9097-1111 ............................................... PR0-100 Kit
9097-1112 ............................................... PR0-200 Kit
9097-1026-005 ......•................................. PR0-200 Handheld
Input
Terminal with 5
foot
cable
9097-1026-505 ........................................
PR0
-200 Panel
Mount
Input Terminal with 5
foot
cable
9097-1113 ....
..
...................................
..
.... PR0-300 Kit
9097-1114 ...........................
..
.................. PR0-400 Kit
9097-1115 ............................................... PR0-150 Kit
9097-1116 .............
..
................................ PR0-450 Kit
9097-
11
19 ........................................
..
..... Connector Kit,
PRO-XOO
/ BRU-Series
(Connectors
for
PRO
P1-P6,P8)
9097-1120 .....................................
..
........ Connector Kit, PRO-X50 /BRU-Series
(Connectors
for
PRO P1-P6, P8)
9097-1094 ............................................... PR0-450
Operator
Station
9.6
Spindle Orient and Auxiliary Function Card (BRU-500 Only)
Part Number
Description
9097-2000 ..............
..
..
.....
..
...........
..
......... Spindle Orient and Auxiliary Function Card
9097-2009 ....
..
..................
....
................... Connector Kit, Spindle
Or
ientj BRU-Series
(Connectors
for
Sp
indle Orient Card P1- P8)
9.7 Cables
Part Number
Description
9101-Q145-XXX ...
..
.............
..
........ .........
..
Drive Module Cable terminated
for
P1
[2]
9101-Q146-XXX ...................................
..
.. Drive Module Cable terminated
for
P2
[2]
9101-Q147-XXX ....................................... Drive Module Cable terminated
for
P3 [2]
9101-Q149-XXX ..
..
...........
....
.................... Drive Module Cable terminated
for
P4 [2]
(S-Series, F-Series,
or
1-Series motors)
9101-Q150-XXX ....................................... Drive Module Cable terminated
for
P5
[2]
9101.0161-XXX ....................................... Drive Module Cable terminated
for
P6
(2}
9101.0224-XXX ....................................... Cable with 9101-Q329
connector installed
on
motor
end
of
cable. (S-Series
or
F-Series motors)
9097-1040-QlO ........................................ Cable,
OM
P6
or
PRO P5
to
Tandy
102 Terminal {25 pin D)
9097-1108-Q10 ......................
..
..............
..
Cable,
OM
P6
or
PRO P5
to
PC
{9
pin
D)
9101-Q202-Q
10 ................
....
................
..
.. Cable,
OM
to
BRU-SERIES Control Stati
on
9101-Q250-XXX .......................
..
.............. BRU-500/S-3000 Power Cable
91
01.0251-XXX ....................................... BRU-500 /S-4000 / F-4000 Power Cable
91
01.0252-XXX ..............
..
....................... BRU-500 / S-6000 / F-6000 Power Cable
91
01-Q253-XXX ....................................... BRU-500 / S-8000 Power Cable
9101 -1 080-XXX .....................
...
............... BRU-200 / S-2000 / S-3000 Power Cable
9101-1 081-XXX ....................................... BRU-200 / S-4000 / F-4000 Power Cable
[1] Standard cable lengths are
10,
25
, 50, and 75
fee
t. Last three digits
denote
length
of
cable
in
feet.
[2) Cables noted are terminated
on
the
OM
end
only
. This is
to
allow cable
to
be routed through
conduit
and
cut
to
the length required.
BRU-200/BRU-500 Brushless
Dri
v
es
Inst
ruct
i
on
Manual
57
