Radio Fire Alarm System – User Manual Page:13
V301_user Feb 2009
Electro-Detectors

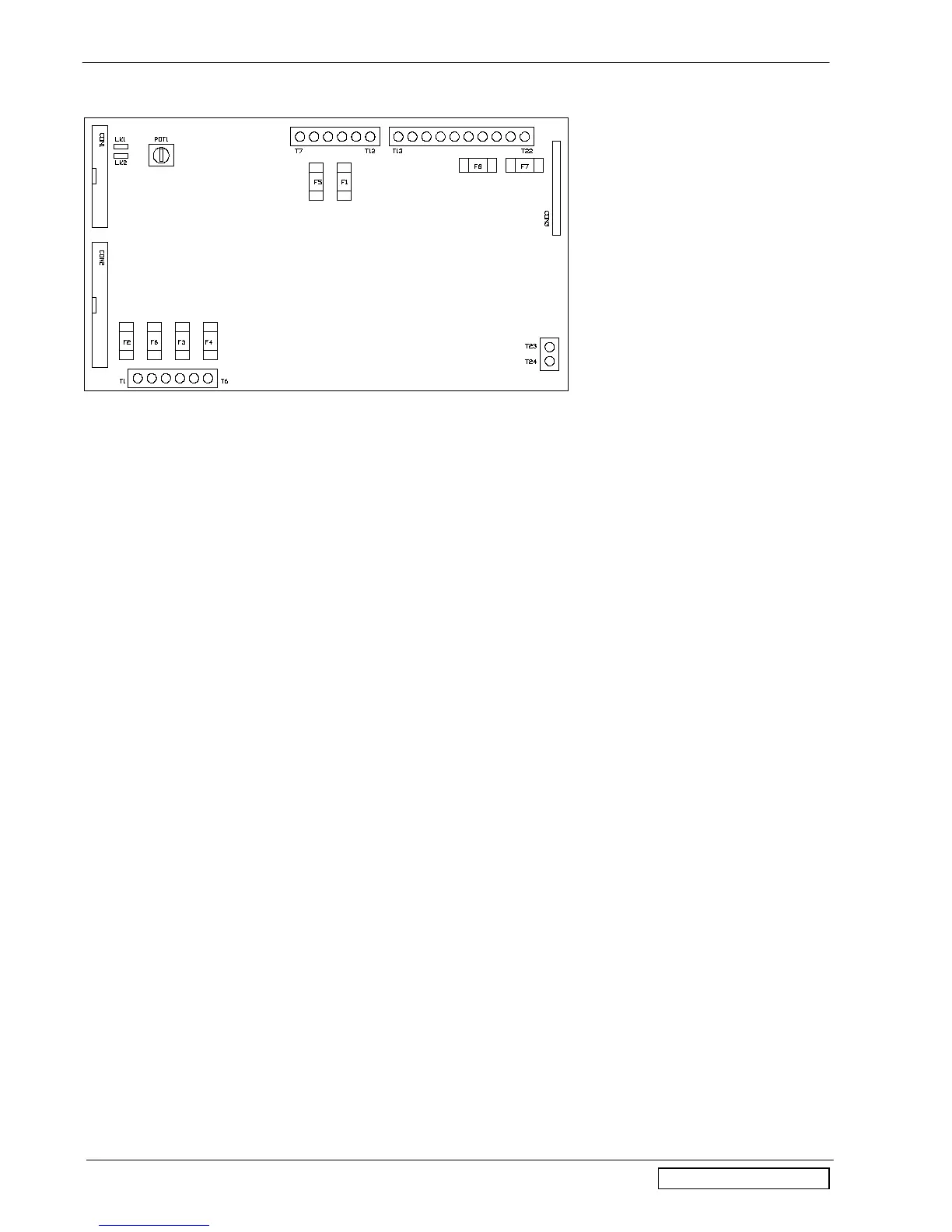

4.1 Main Panel Power Supply Board Connections (EDA-M100/M150/M200)
Connectors and Terminals
CON1 To Receiver Unit
CON2 To Processor Board
CON3 To Expansion Board
T1 External Supply Ground
T2 External Supply 24V In
T3 Battery Ground
T4 Battery 12V In
T5 Printer Ground
T6 Printer 5V
T7 External Call Point Input Gnd
T8 External Call Point Input 5 V
T9 Ground
T10 External Monitor In
T11 External 24 V Output
T12 External Ground
T13 Auxiliary Relay 1 Common
T14 Auxiliary Relay 1 Norm Closed
T15 Auxiliary Relay 1 Norm Open
T16 Fault Relay 2 Common
T17 Fault Relay 2 Norm Closed
T18 Fault Relay 2 Norm Open
T19 Sounder Relay 1 Alarm +
T20 Sounder Relay 1 Alarm -
T21 Sounder Relay 2 Alarm +
T22 Sounder Relay 2 Alarm -
T23 AC In 18V RMS
T24 AC In 18V RMS
LK1 Antenna Monitoring
LK2 Antenna Monitoring
Fuses
F1 0.5A Sounders and External 24V Supply
F2 3.15A Main 5V Power Supply to Processor
F3 6.3A Battery
F4 3.15A Printer (Control Panel Only)
F5 0.5A Battery Charger
F6 6.3A 24 External Supply Input (Control Panel Only)
F7 0.5A Sounder Circuit 2
F8 0.5A Sounder Circuit 1
