Specifications
Frequency Response:.......................... 40-100 Hz, ±3 dB
Long-Term Average Power Handling,
EIA RS-426A: ........................................................ 400 watts
AES (1984): ........................................................... 500 watts
Sound Pressure Level, 1 W/1 m:
Full space .................................................................... 98 dB
Half space .................................................................. 101 dB
Crossover: ....................... Acoustic/electronic filter output
Transducer Complement: ......................... 1 ea DL18BFH
Impedance,
Nominal: .................................................................... 8 ohms
Minimum: ............................................................... 5.1 ohms
When used with Eliminator i
™
in satellite configuration nominal
4 ohms, minimum 3.2 ohms.
Enclosure Tuning: ................................................... 50 Hz
Input connectors:
1/4-in. phone input
1/4-in. phone output to Eliminator i
™
Enclosure material/construction: ... Black carpeted MDF
Dimensions:
Height: ....................................................... 85.9 cm (33.8 in)
Width: ..................................................... 43.8 cm (17.25 in.)
Depth: ..................................................... 61.0 cm (24.13 in.)
Net Weight: ..................................................39.5 kg (87 lb)
Shipping weight: ........................................43.1 kg (95 lb)

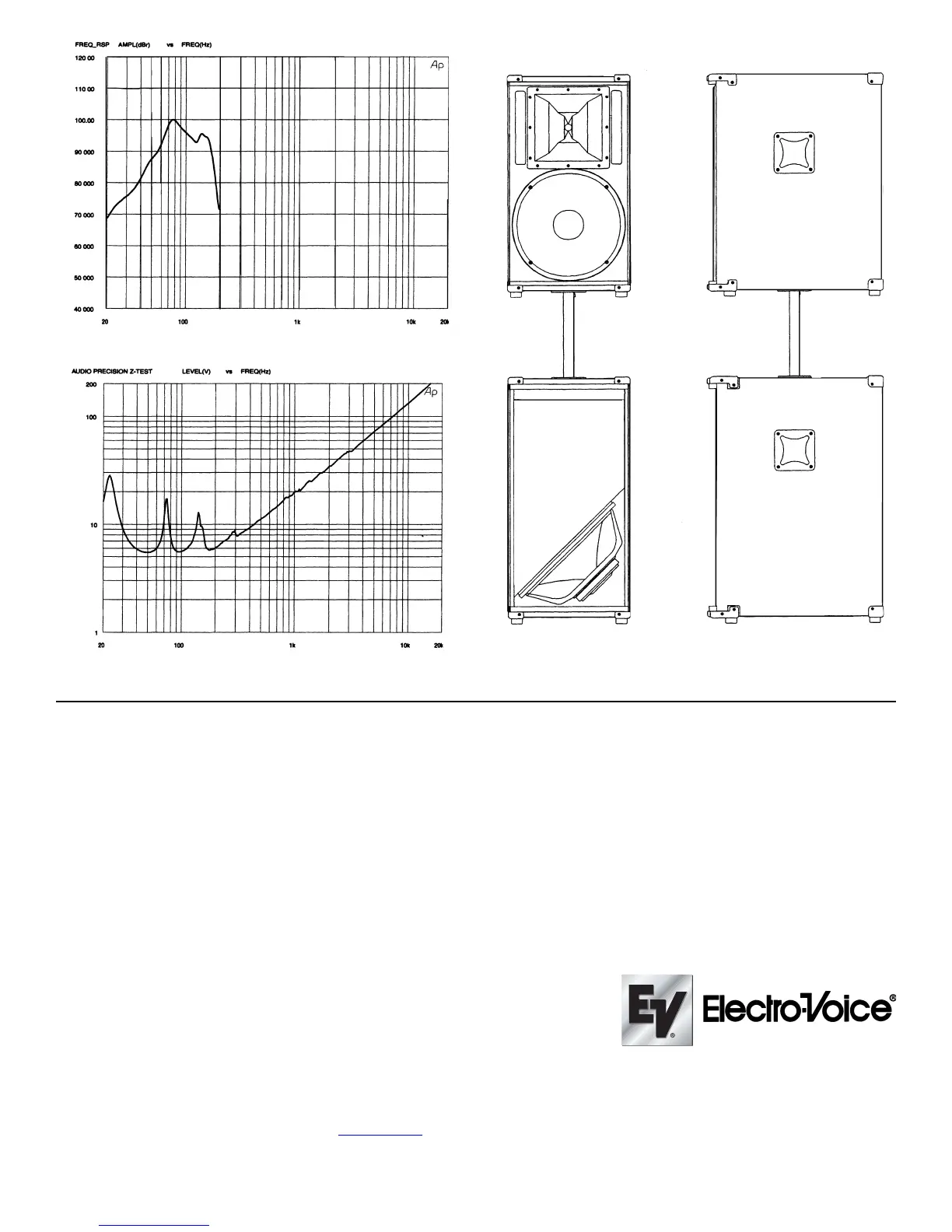

Figure 2. Impedance
Figure 1. Frequency Response
Figure 3. Eliminator i
™
with Eliminator i
™
Sub
