Engineering Data Sheet
Technical Specifications:
Generation Element:
Dual condenser, back electret
Frequency Response:
50 Hz to 20,000 Hz (see chart)
Polar Patterns: (see chart)
Omnidirectional
Cardioid
Supercardioid
Figure 8
Switches and Controls:
Top mounted momentary membrane switch
Push on/off, or push-to-mute selector
Power up on/off selector
High-pass enable
4-position polar pattern selector
Sensitivity, Open Circuit Voltage, 1 kHz:
17.8mV/Pascal
Clipping Level (1% THD):
>130 dB SPL
Equivalent Noise:
<26 dB SPL “A” weighted
(0 dB=20 micropascals)
Dynamic Range: >98 dB
Output Impedance, 1 kHz:
1000 ohms
Power Requirements:
5 VDC, supplied by optional bodypack
Current Consumption:
<1.5 mA
Polarity:
Pin 2 positive, referenced to pin 1,
with positive pressure on the diaphragm
Dimensions (without bodypack):
Length: 140.8 mm (5.5 in.)
Width: 81.2 mm (3.2 in.)
Height: 50.3 mm (2.0 in.)
Net Weight (without bodypack):
128 grams (4.5 oz)

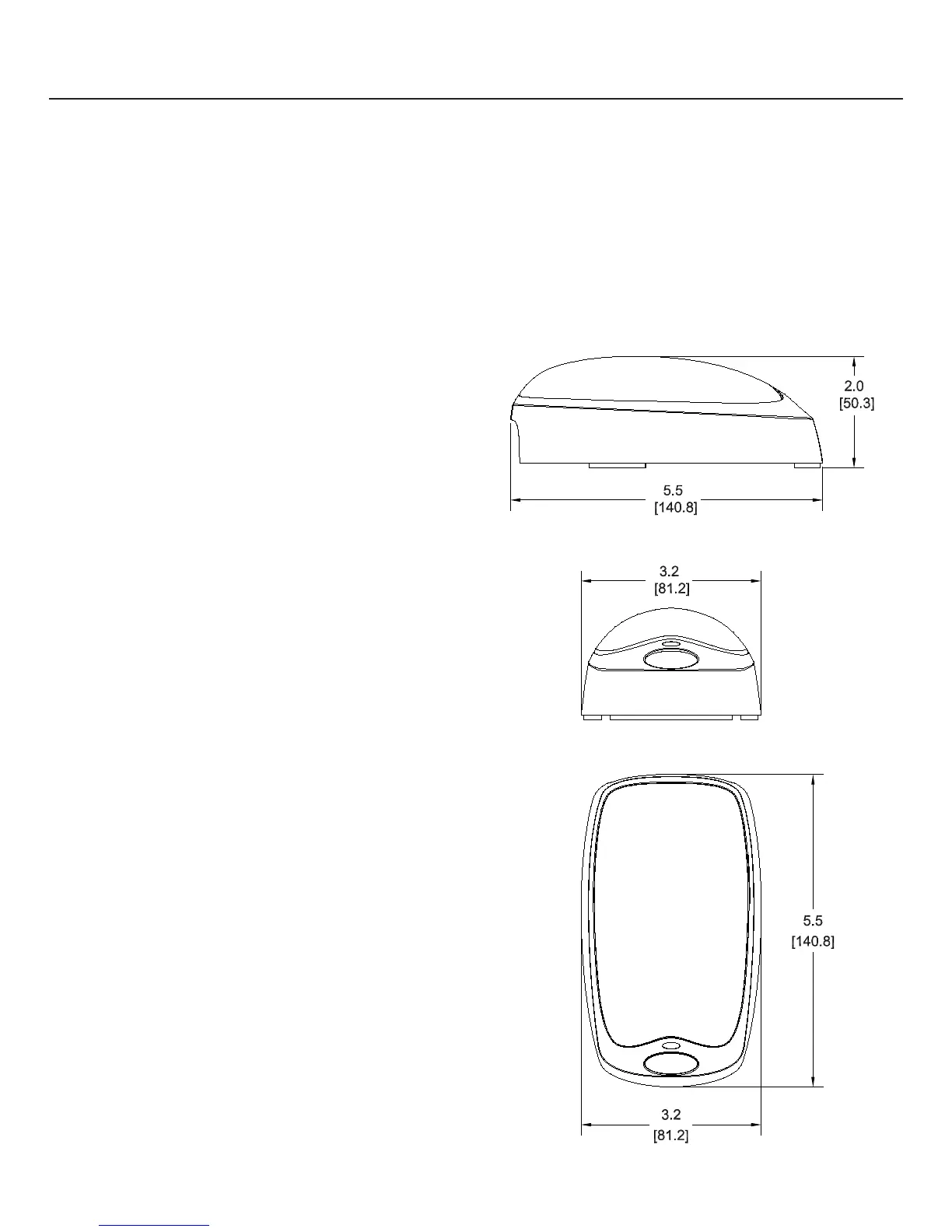

Dimension Drawings:
Applications:
The PolarChoice™ Desktop is acoustically designed for high-quality sound reinforcement and broadcast applications. The
frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up
use. The PC Desktop can be used on lecterns, podiums, desks, table-tops, or other applications. To maximize gain-before-
feedback, the PolarChoice’s™ three directional polar patterns allow the user to pick the directional polar pattern for optimum
effect. For those applications where gain-before-feedback is not a problem, an omnidirectional pattern is included.
Applications requiring speaking close to the microphone at podiums, lecterns, or pulpits normally require a windscreen
(included) to control breath noise and P-popping or, in some cases, wind noise from circulating air.
Compatible Bodypack Models:
Electro-Voice:
REV, RE-1, RE-2
Telex:
FMR-500, FMR-1000, SAFE-1000
(And all future system bodypacks produced after Fall 2006.)
