S15 Two-Way Stage Speaker System
S15 T
w
o-W
ay S
tage Speak
er System

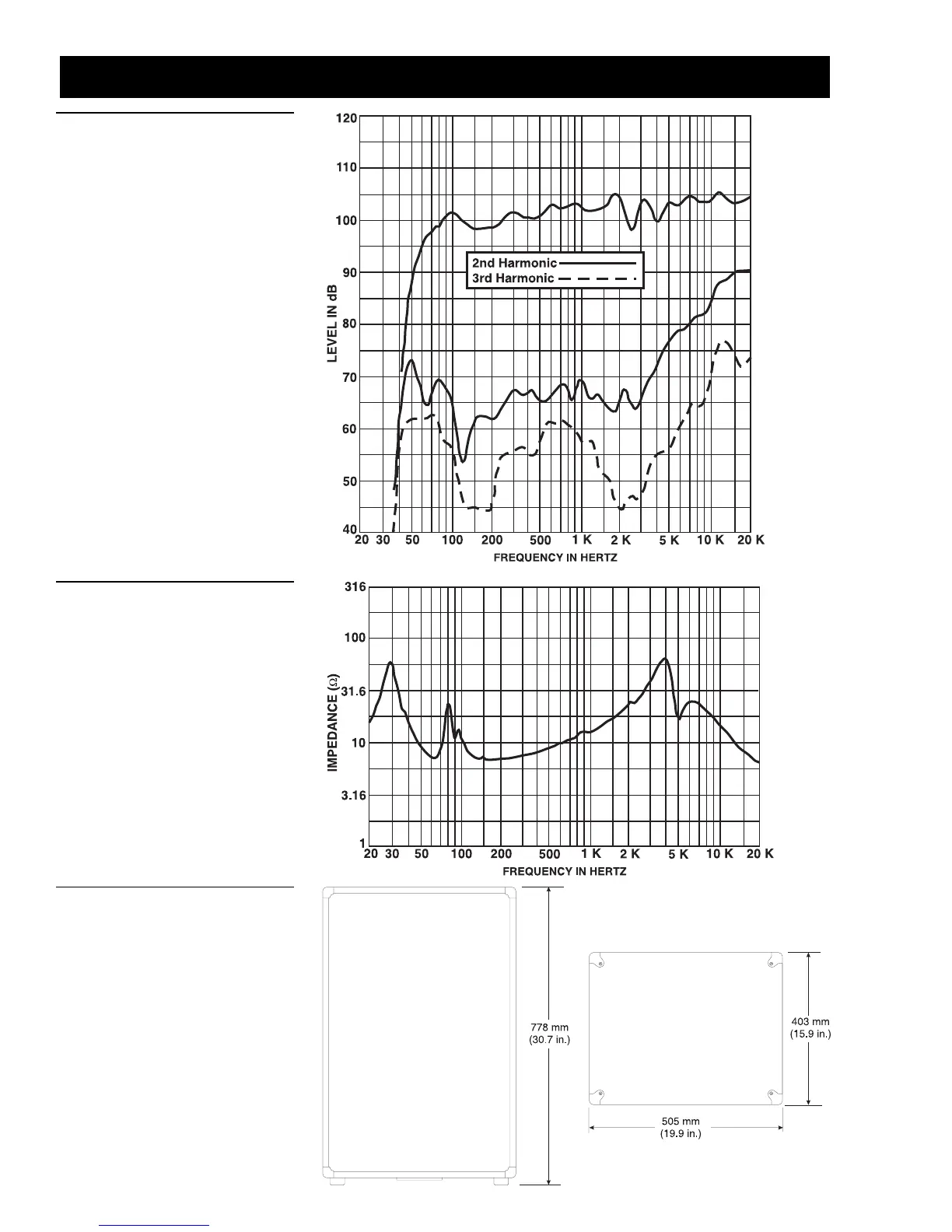

Figure 2—Harmonic Distortion
Response 10% Rated Power Input
(25 watts), (anechoic environment,
3.05 meters (10 feet) on axis)
Figure 3—Impedance Curve
Figure 4—Dimension Line Drawing
3
5
Table of Contents
Main Page
Description
1
Speaker Protection
1
Enclosure Construction
1
Frequency Response
2
Connections
2
Power-Handling Capacity
2
Amplifier Power Recommendations
2
Stand Mounting
3
Architects' and Engineers' Specifications
3
Axial Frequency Response
3
Harmonic Distortion
4
Impedance Curve
4
Dimension Line Drawing
4
One-Third-Octave Polar Responses
5
Beamwidth Vs. Frequency (Anechoic Environment)
5
Directivity Vs. Frequency (Anechoic Environment)
6
Specifications
6
