ELECTROCOMPANIET ECD 2 - Back Panel Connections; Back Panel Illustration; Connection Port Descriptions

8
ENG

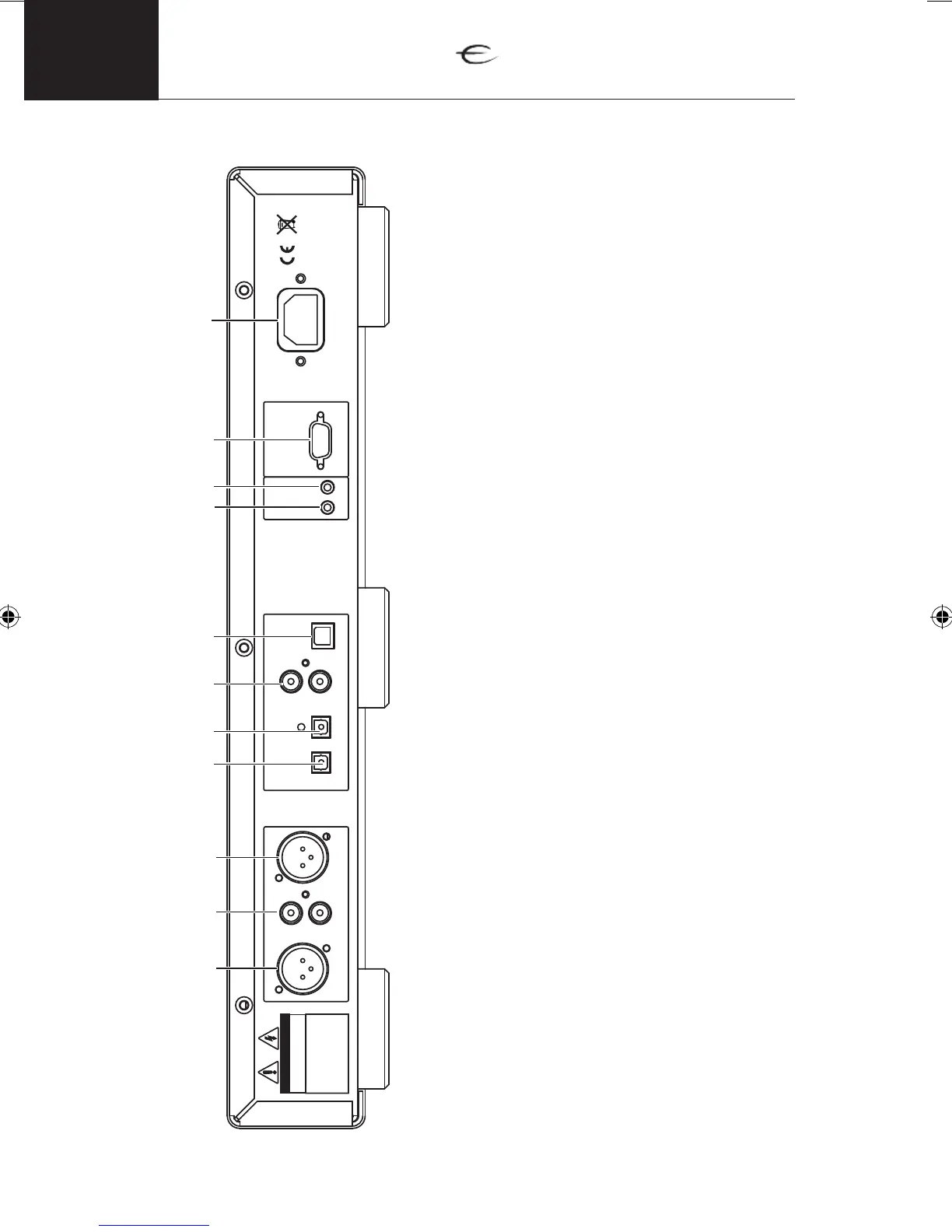

ECD 2 back panel illustration
RIGHT LEFT TOSLINK 2 TOSLINK 1 COAX USB
MODEL: ECD 2
MADE IN NORWAY
ELECTROCOMPANIET
AC INPUT
1
ANALOG OUTPUT DIGITAL INPUT TRIGGER REMOTE CONTROL
IN OUT
RS-232C
2
L
R
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
C AUTIO N
1
21 3
4
5 6 7
3
4
6 7
8
9 10
11
2
5
1. Balanced analog right output. 2. Single-ended analog outputs. 3. Balanced analog left output. 4. Optical digital input, TOSLink 2. 5. Optical digital input, TOSLink 1. 6. Coaxial digital input 1 and 2. 7. USB audio input. 8. 12 V trigger input. 9. 12 V trigger output. 10. RS 232 connection. 11. AC Power inlet.
