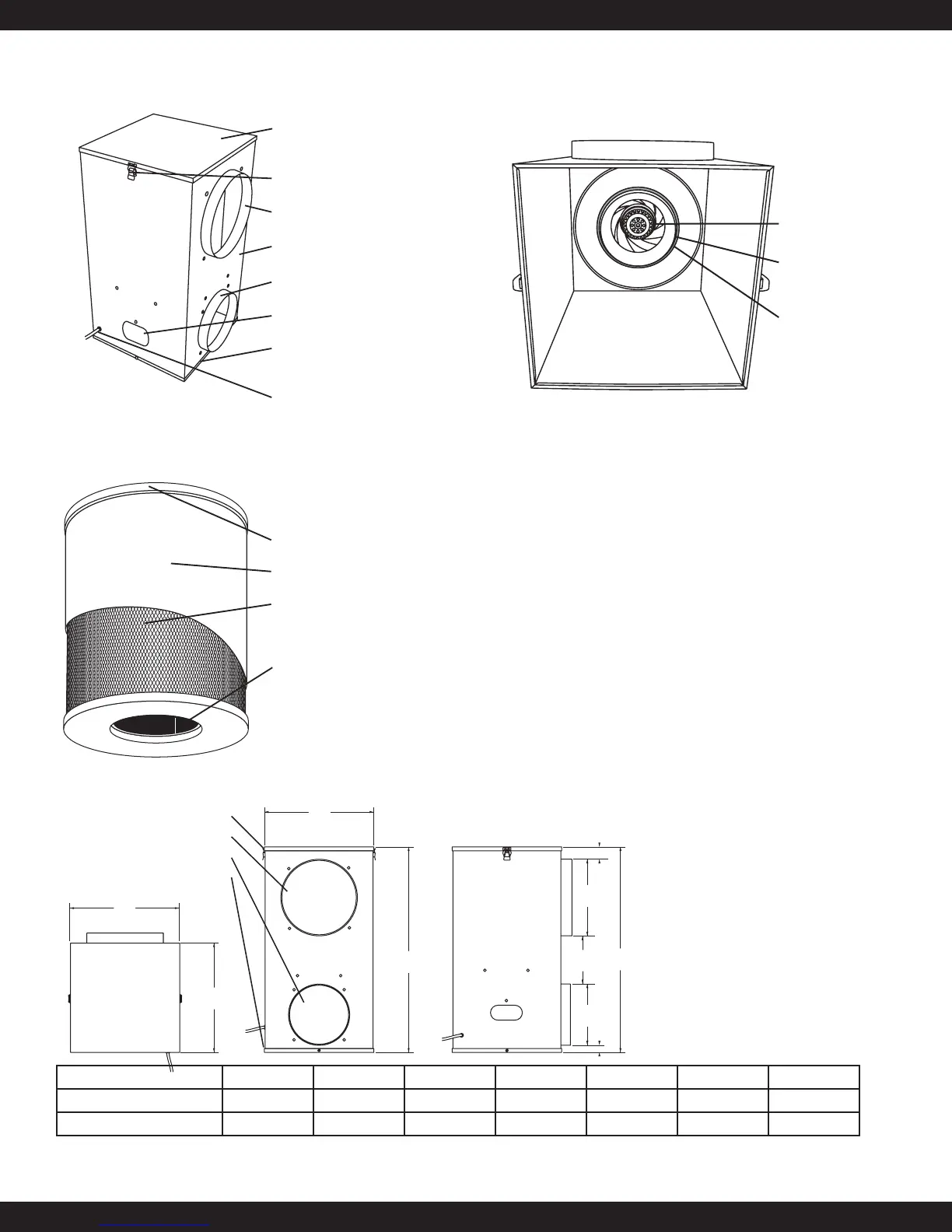

Electrolux 350 - Parts Identification; Physical Dimensions of Units

3
Filter Section Access
Panel
Retaining Clips (2)
Intake Collar
Cabinet
Outflow Collar
Motor Section
Access Panel
Power Cord
Control Panel
Cabinet Parts
HEPA Filter
Pre-Filter - Foam
HEPA Filter Mesh
(Protects HEPA
Filter)
Inner Carbon Filter
HEPA Cartridge Parts
Inside Cabinet (Filter Section)
Motor/Impeller
Filter Adapter
(threaded)
‘O’ Ring
Parts Identification
Filter parts identification
Physical dimensions of unit
E
G
C
F
A
A
A
Filter Section Access Panel
Air Intake
Air Outflow
Motor Section Access Panel
B
B
D
Model Unit A B C D E F G
350 14.5 (36.8) 27.25 (692) 7.875 (200) 5.875 (149) 8.5 (216) 3 (76) 2 (51)
675 14.5 (368) 27.25 (692) 9.875 (251) 7.875 (200) 6.5 (165) 2 (51) 1 (32)
Dimensions in inches (mm)
