Electrolux 42 - Installation Instructions

1/2"
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
23-7/8"

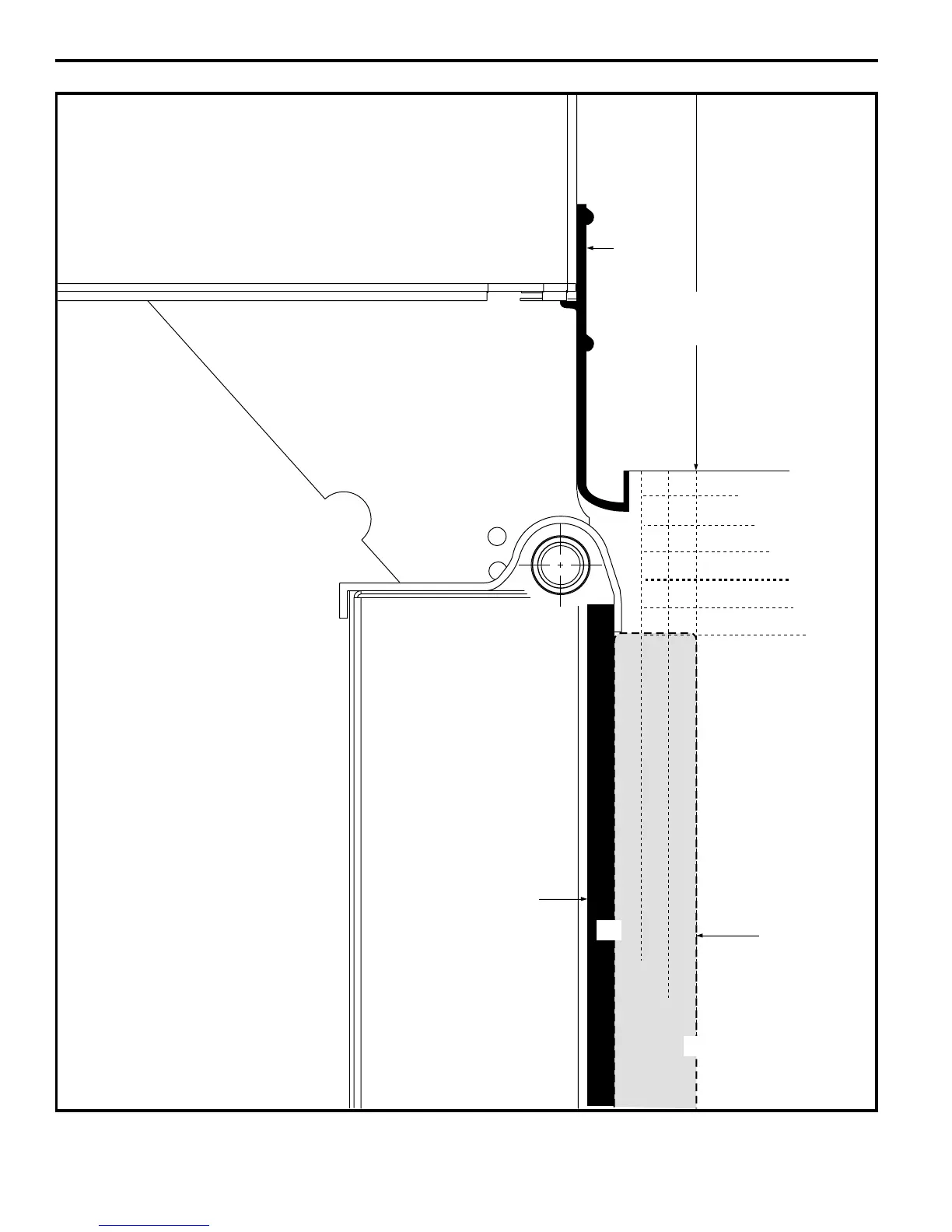

From Rear of
Refrigerator
3/4" Custom Panel
(Nominal Size)
Case Trim
Refrigerator
Fresh Food
Door
Backer Panel
3/4"
1/4"
1"
Top View
90° Door Swing
(optional setting)
Scale 1:1
Installation Instructions
19
