Electrolux 42 - Installation Instructions

3/8"
3-1/8"
5/16"
1" Thick Max.
or 3/4" Plus
1/4" Backer
B
2-1/2"
3-1/8" Min.
1/4" Max.
A
5/16"
Required for Optimal
Handle Clearance

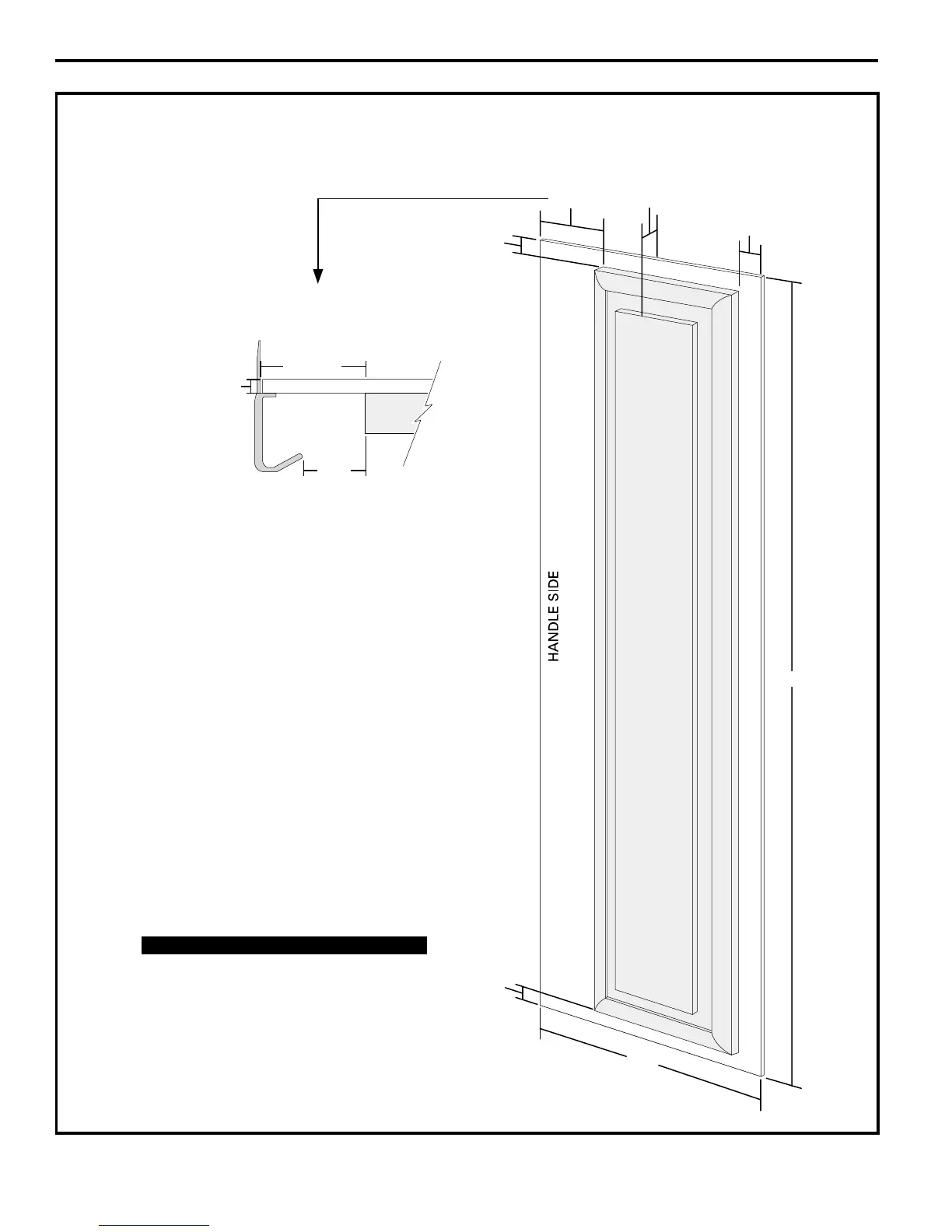

3/4″ FRAMED CUSTOM WOOD PANELS
Secured to a 1/4″ finished backer panel. This design
provides a framed appearance.
Fresh Food Panel
Installation Instructions
23
42″ Models A B
1/4″ Backer Panel 22-5/16″ 67-7/8″
3/4″ Overlay Panel 18-13/16″ 67-1/4″
