ACTIVATION AND USE OF THE FRONT
ELECTRIC BRAKE

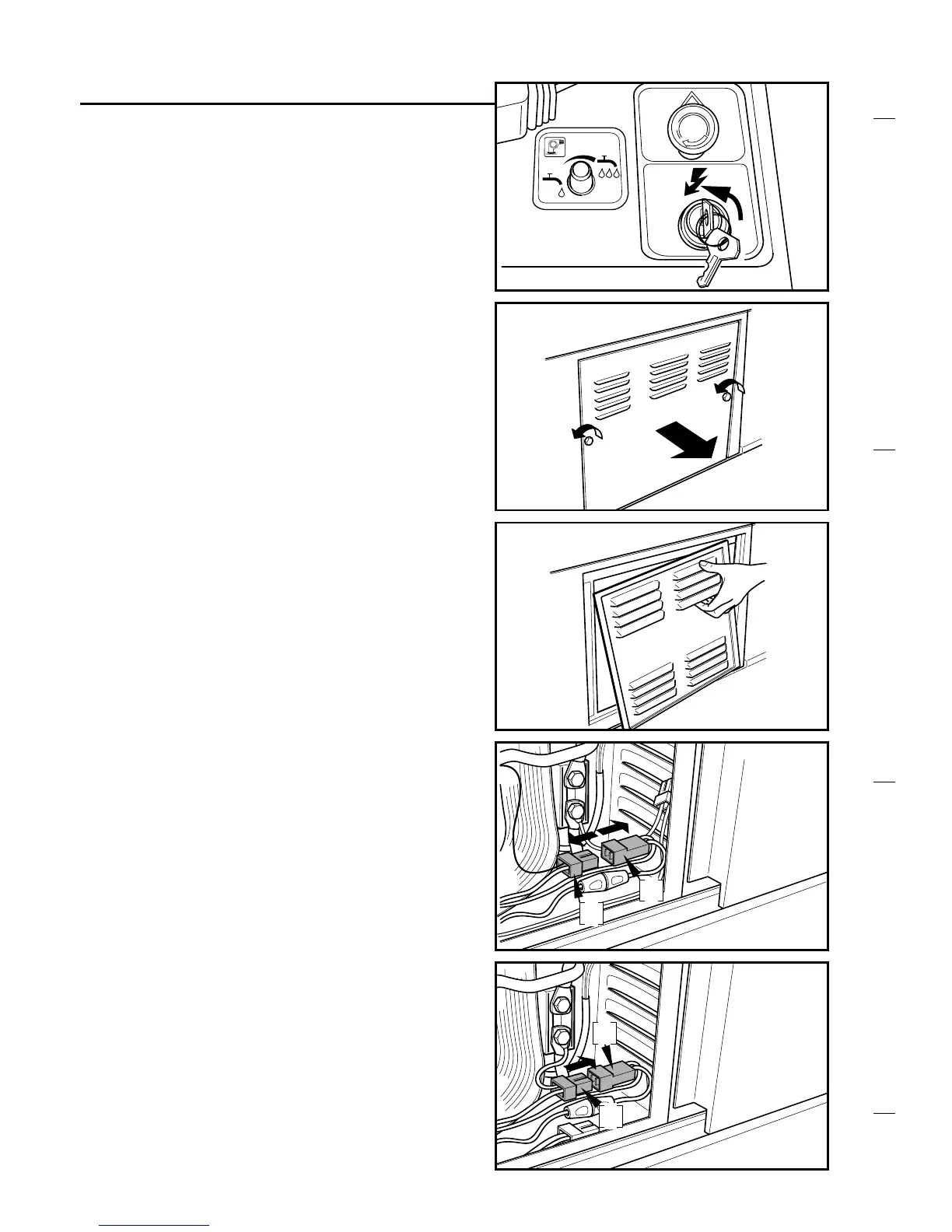

To disengage the electric brake follow the
instructions below.
Turn the master key to the Off position.
Remove the right side panel from the machine.
Remove the plastic cover.
Disconnect cable 2 from cable 1.
Note: cable 1 is connected to the brake winding
through a protection fuse (check the fuse).
Remove the protection cap from cable 3 (it is
connected to the 36V battery).
Connect cable 1 to cable 3: the operation of the
brake will be hared.
