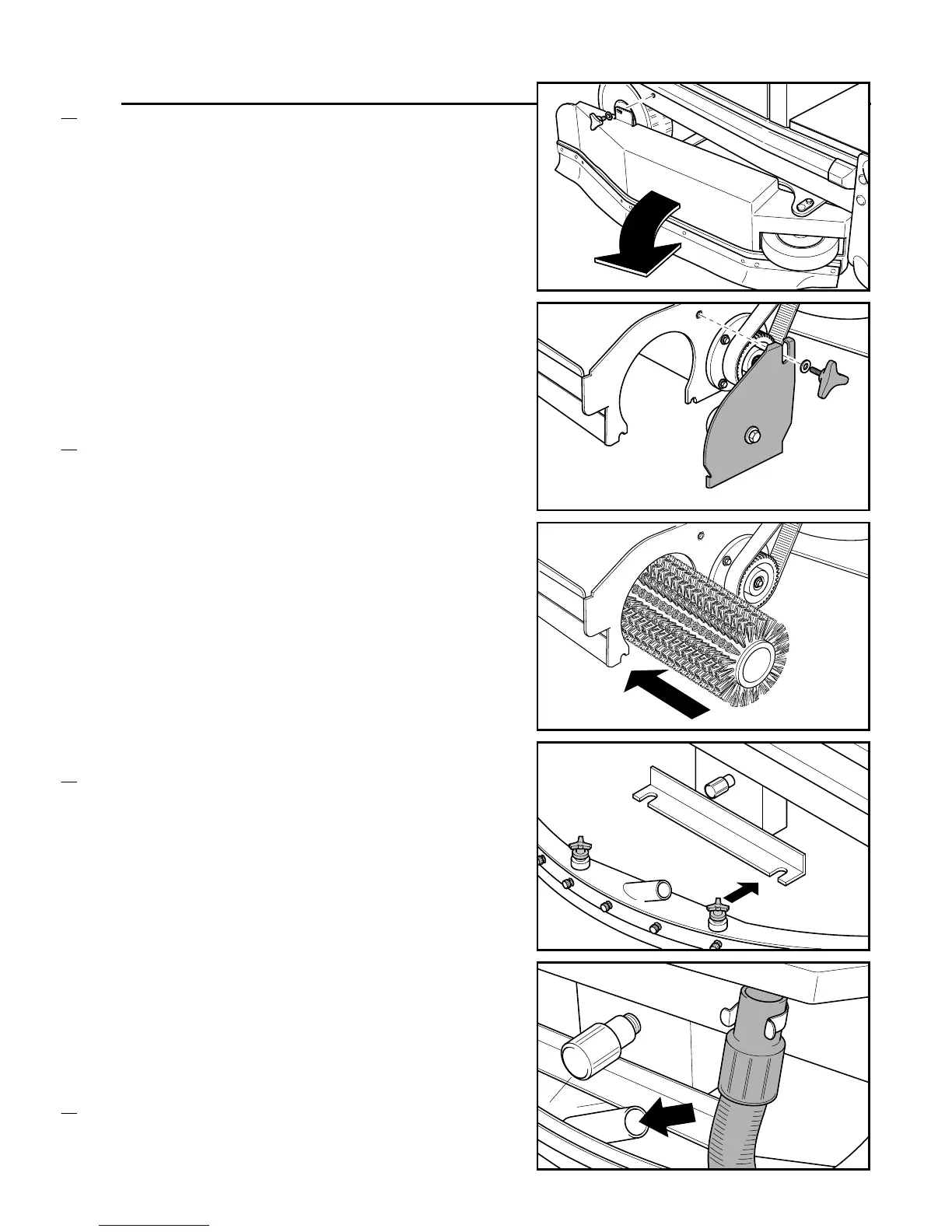

MOUNTING THE BRUSHES ON MODEL
AR 4095 FREE SCRUB
Open the left and right side doors of the
machine.
Unscrew the knobs fixing the cover of the brush
compartment and remove the cover itself (on
both sides)
Insert the cylindrical brush (one from each side):
during this operation the guide pin on the
opposite side must be properly fit inside the
brush.
Fix the cover of the brush compartment and
close the side door.
FITTING THE SQUEEGEE
Remove the squeegee from the envelope and fit
it into the holder as shown in the figure; tighten
the knobs.
Disconnect the suction hose from its support and
fit the free terminal to the squeegee.
PREPARATION OF A NEW MACHINE
