1. TESTING PROCEDURES
1.1 How to know if the board is energized
With the help of the digital multimeter, measure the alternate tension (127V or 220V) between the brown and blue

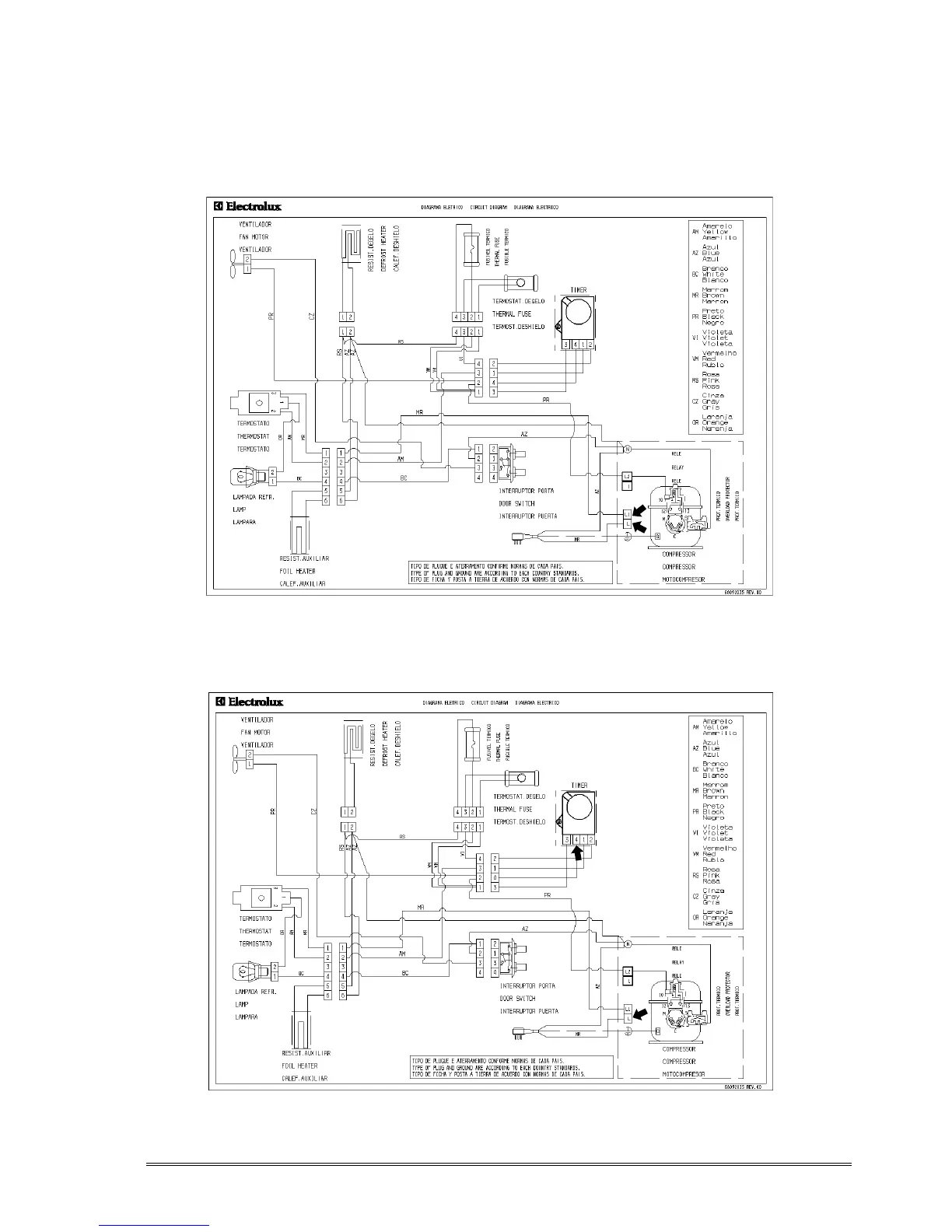

wire terminals of the compressor, as indicated in the scheme below:
1.2 Operation of the compressor and motofan
The control of the operation of the compressor and the motofan is done by the thermostat and timer. After the
product is connected to the mains, verify if there is alternate tension (127V or 220V) between the brown and blue
wire terminals and the pin 4 of the timer connector.
Note: The motofan and the compressor operate both, simultaneously. The motofan is turned off by the doors
switches when any one of them is opened.
