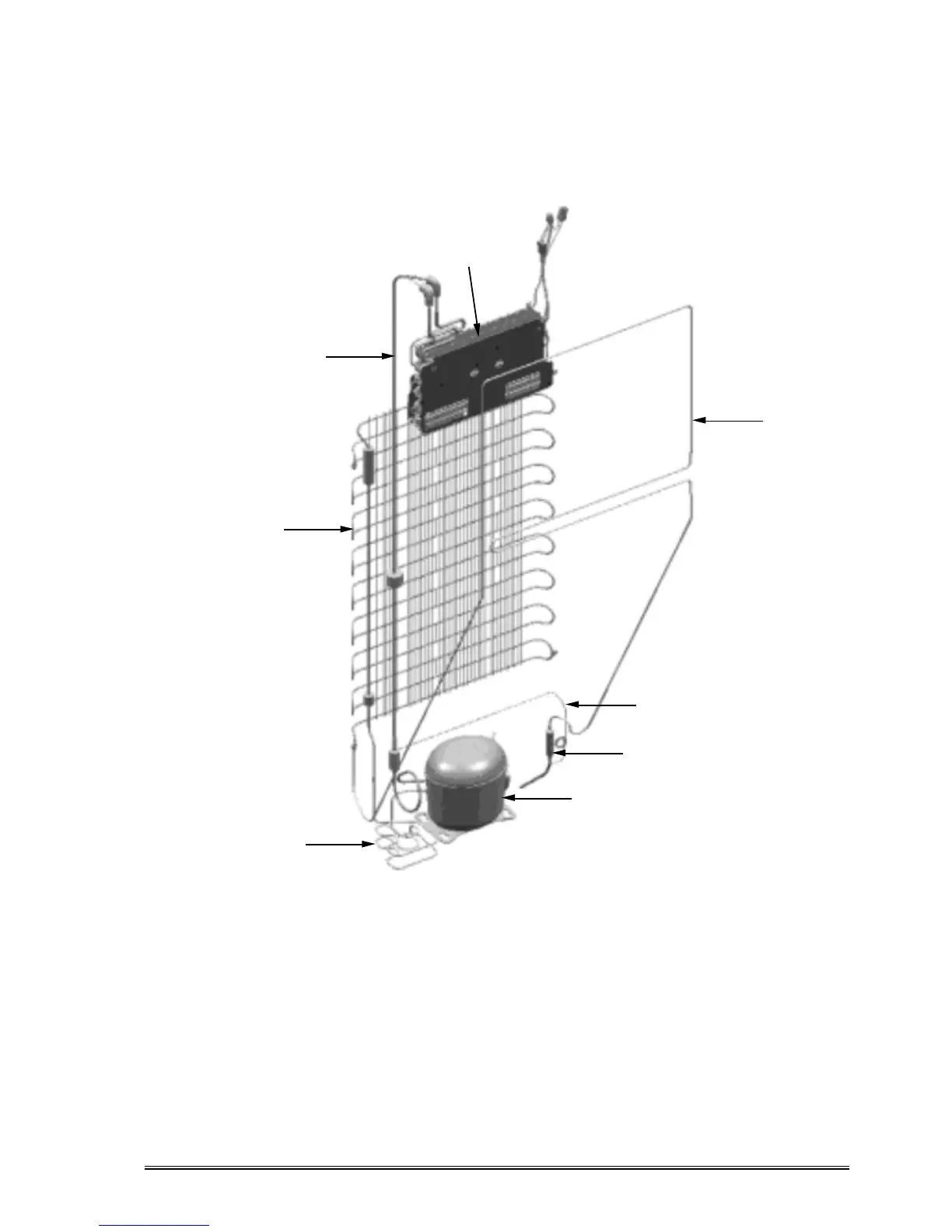

4. COOLING FLUID CIRCULATION SCHEMATIC DIAGRAM
Compressor – Evaporation Coil - Condenser – Dehumidifier Pipe – Drying Filter – Capillary Pipe - Evaporator –
Suction Accumulator – Suction Line - Compressor
Evaporator
Suction line
Dehumidifier
pipe
Drying filter
Compressor
Capillary pipe
Condenser
Evaporation coil
