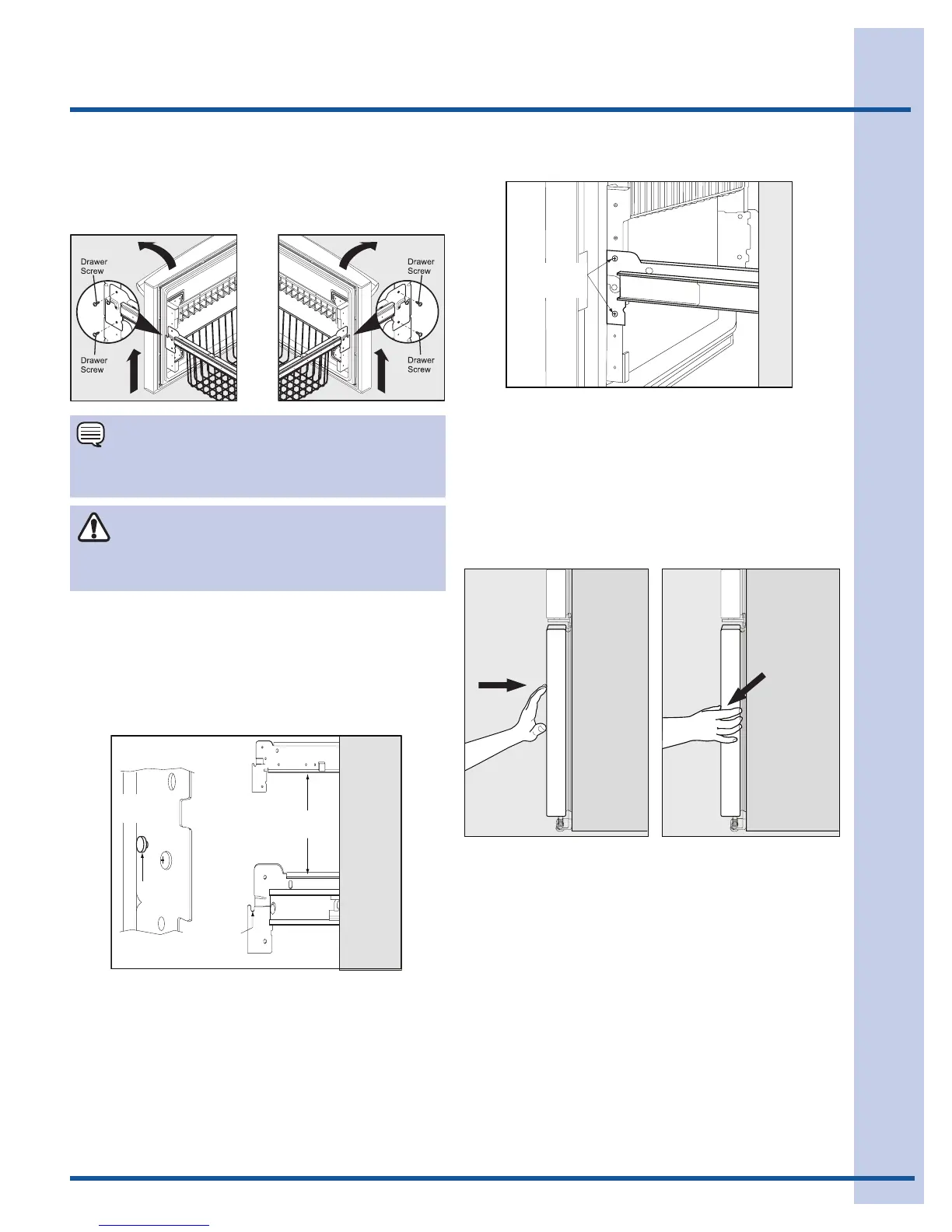

Removing the Doors
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left sides
(two (2) screws on each side).
3 Lift drawer up and out to remove.
NOTE
DO NOT remove center screw from freezer drawer.
This is a factory adjustment.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer onto
slide brackets ensuring pins on each side are
fully inserted into slots on each side.
CAUTION
Drawer is heavy. Use caution when lifting.
6 Tighten four (4) drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
2 Reinstall four (4) drawer screws (two (2) per
side), tighten down, and close drawer (C).
Pull Drawer Out
From Both Sides
Grab Drawer
At Center
Then
Push Against
Freezer Drawer
A B
Fully Extend
Assembly
Drawer Slides
Pin
Slot
Cabinet
Drawer
Install Screws
(2) Each Side
3 Check gasket seal around top, bottom, and sides
of freezer drawer.
4 If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the gasket
(A).Openthedrawergrabbingbythesidesinthe
center (B). Be careful not to rotate the drawer.
