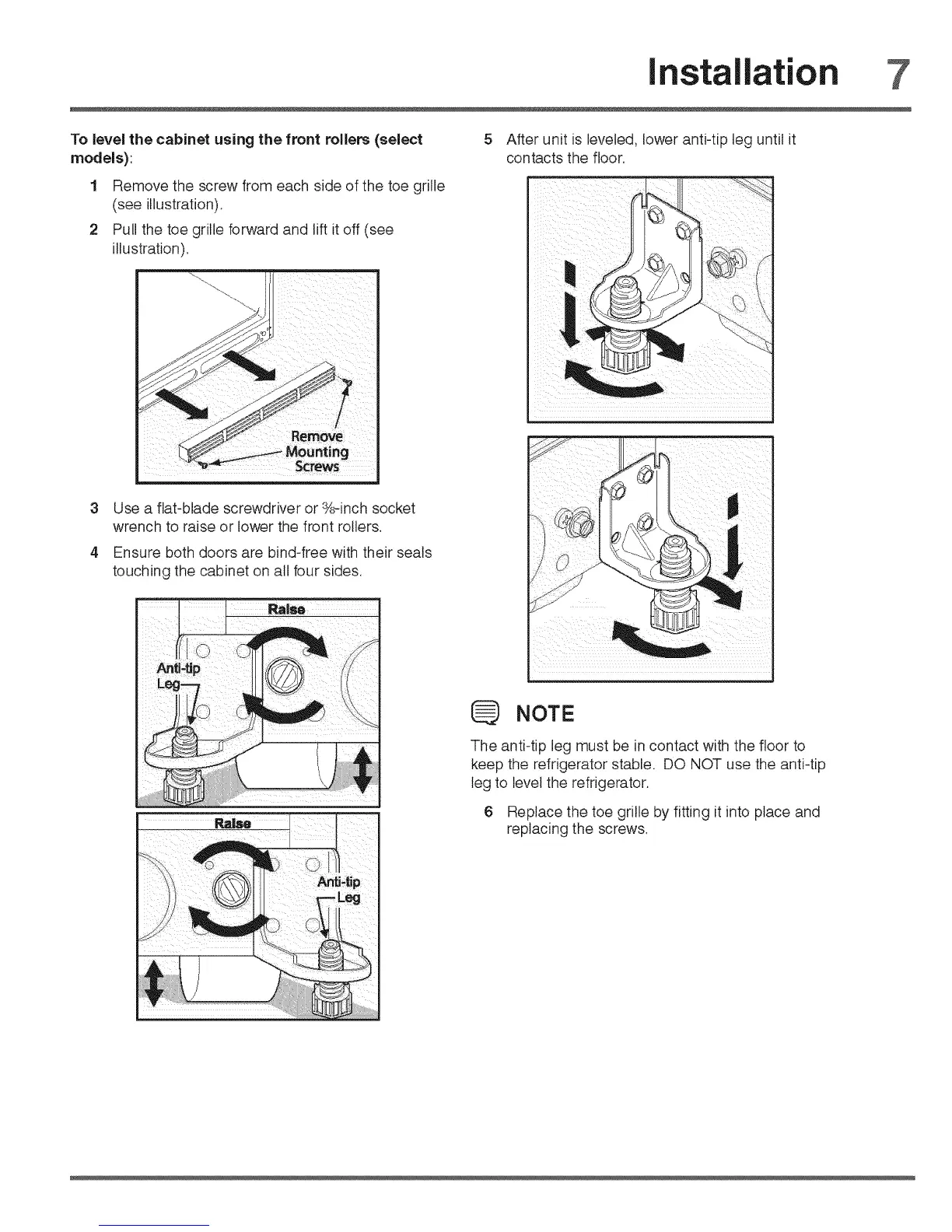

installation 7
To level the cabinet using the front rollers (select
models):
1 Remove the screw from each side of the toe grille
(see illustration),
2 Pull the toe grille forward and lift it off (see
illustration),
5
After unit is leveled, lower anti-tip leg until it
contacts the floor,
3
4
Use a flat-blade screwdriver or ¾-inch socket
wrench to raise or lower the front rollers,
Ensure both doors are bind-free with their seals
touching the cabinet on all four sides,
NOTE
The anti-tip leg must be in contact with the floor to
keep the refrigerator stable. DO NOT use the anti-tip
leg to level the refrigerator,
6 Replace the toe grille by fitting it into place and
replacing the screws,
