INSTALLATION
Cabinet Construction for your appliance

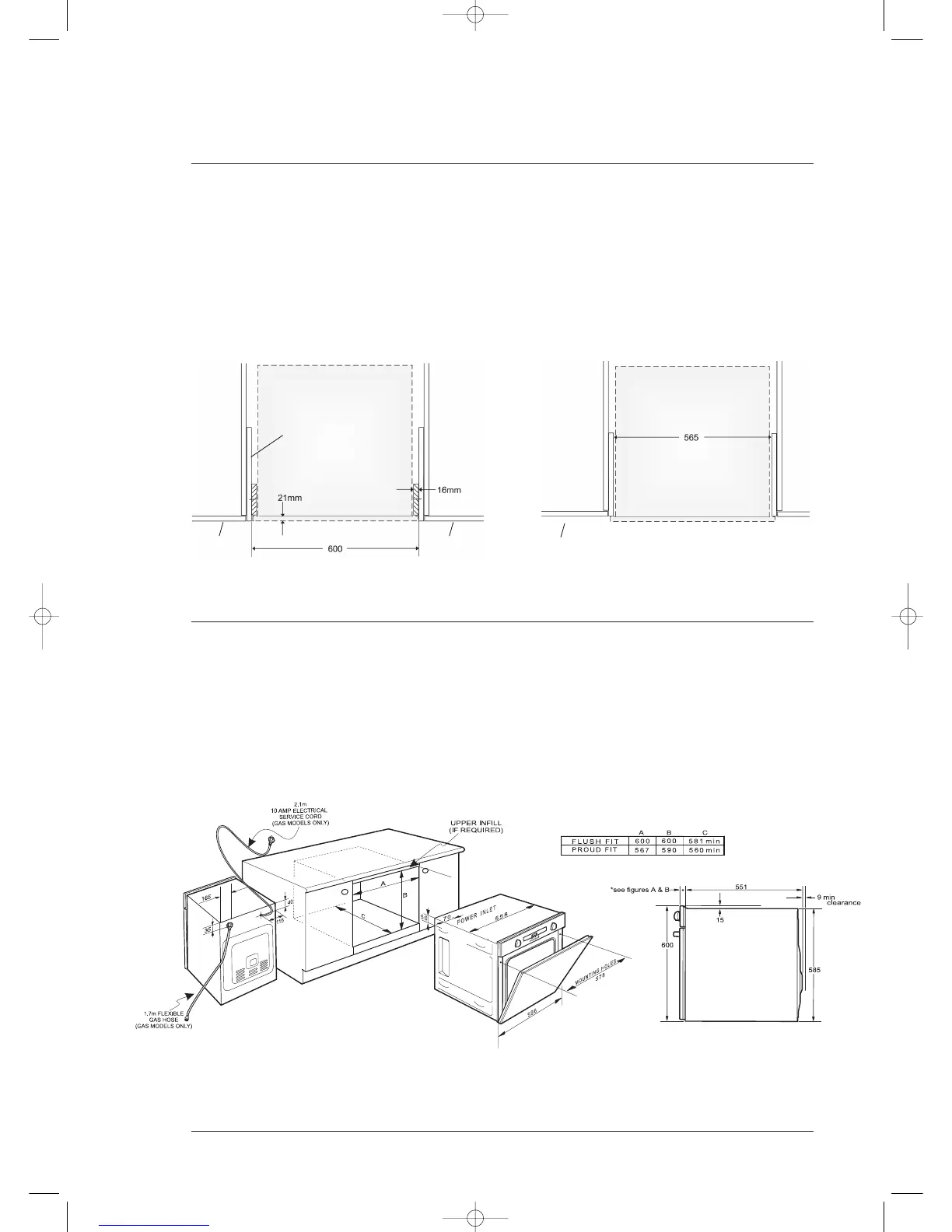

For the best integration within a kitchen, install this appliance in a standard 600mm wide
cupboard that gives a flush fit with the surrounding cupboard fronts (figure A).
A recess of 21 mm is ideal. It can also be installed using a proud fit with the surrounding cupboard
(figure B).
NOTE: Your appliance must be mounted on a flat surface for the full width and depth of the
product.
Underbench Ovens
Your underbench oven looks best when the control panel is directly under the benchtop. An
upper infill panel may have to be added if the cooktop placed above the benchtop is too deep.
Refer to cooktop installation instructions for required clearance between cooktop and oven.
Cleat
Figure A - Flush fit (top view)
Figure B - Proud fit (top view)
Cupboard
door
Cupboard
door
Infill panel
Cupboard front
NOTE: If a powerpoint is fitted it must be
accessible with the appliance installed.
