38
INSTALLATION
Separate Grill
Underbench Ovens

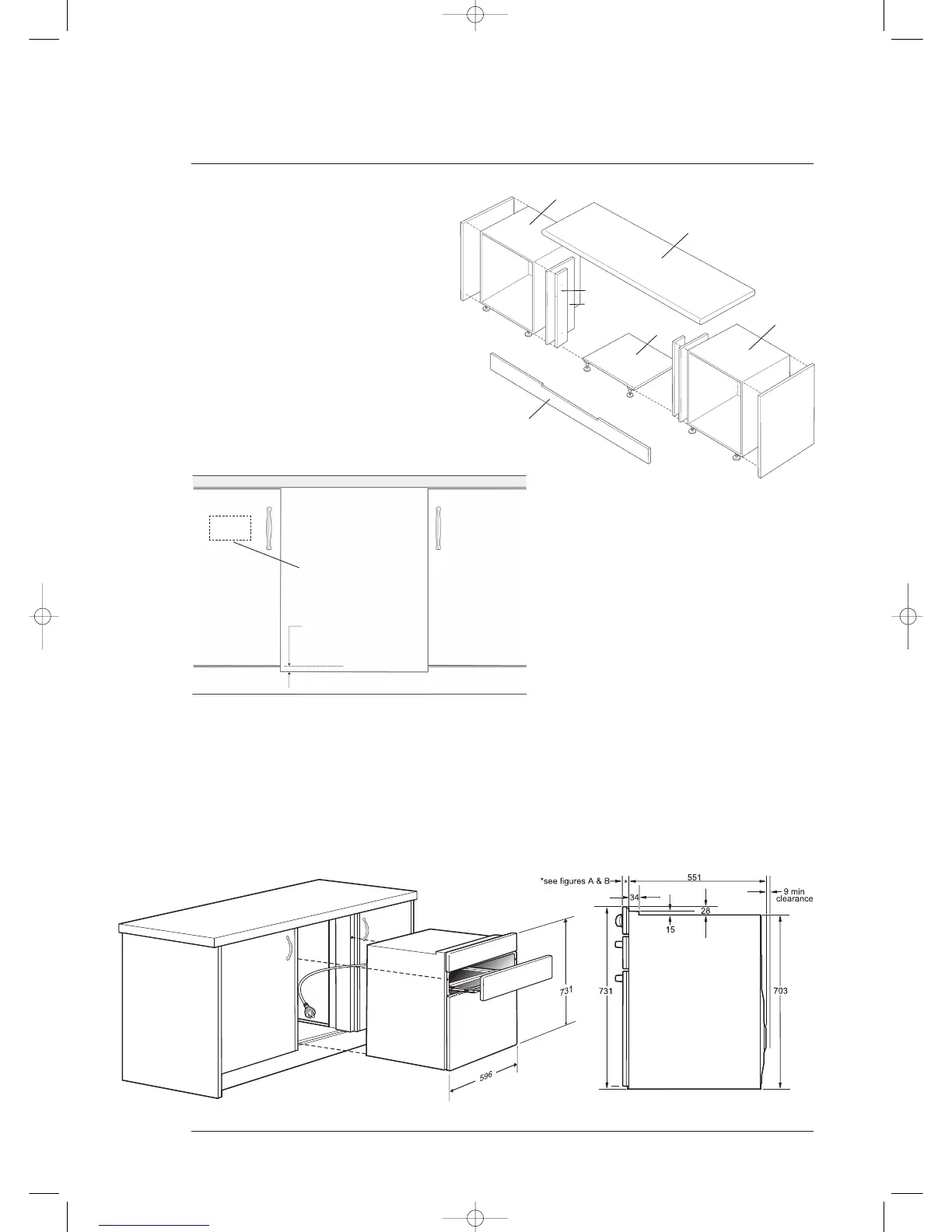

Recommended Cabinet Design
Front View
NOTE:
Power point connection must
be accessible with the appliance
installed.
NOTE: It is imperative that the kick panel be notched for
the full width of aperture to provide cooling air for the
appliance.
Cupboard Aperture:
Height 731mm - Flush fit
723mm - Proud fit
Width 600mm - Flush fit
567mm - Proud fit
Depth 581mm minimum
- Flush fit
560mm minimum
- Proud fit
Area for mounting of
power point.
Supporting shelf 10mm
below door line to give
perfect alignment of
cooker & cupboard (kick
panel notched to suit).
720mm Module(s)
Bench top
720mm Module(s)
Kick Panel
Infill panel (2)
Cleat (2)
Cooker
platform
