GAS INSTALLATION INFORMATION
40

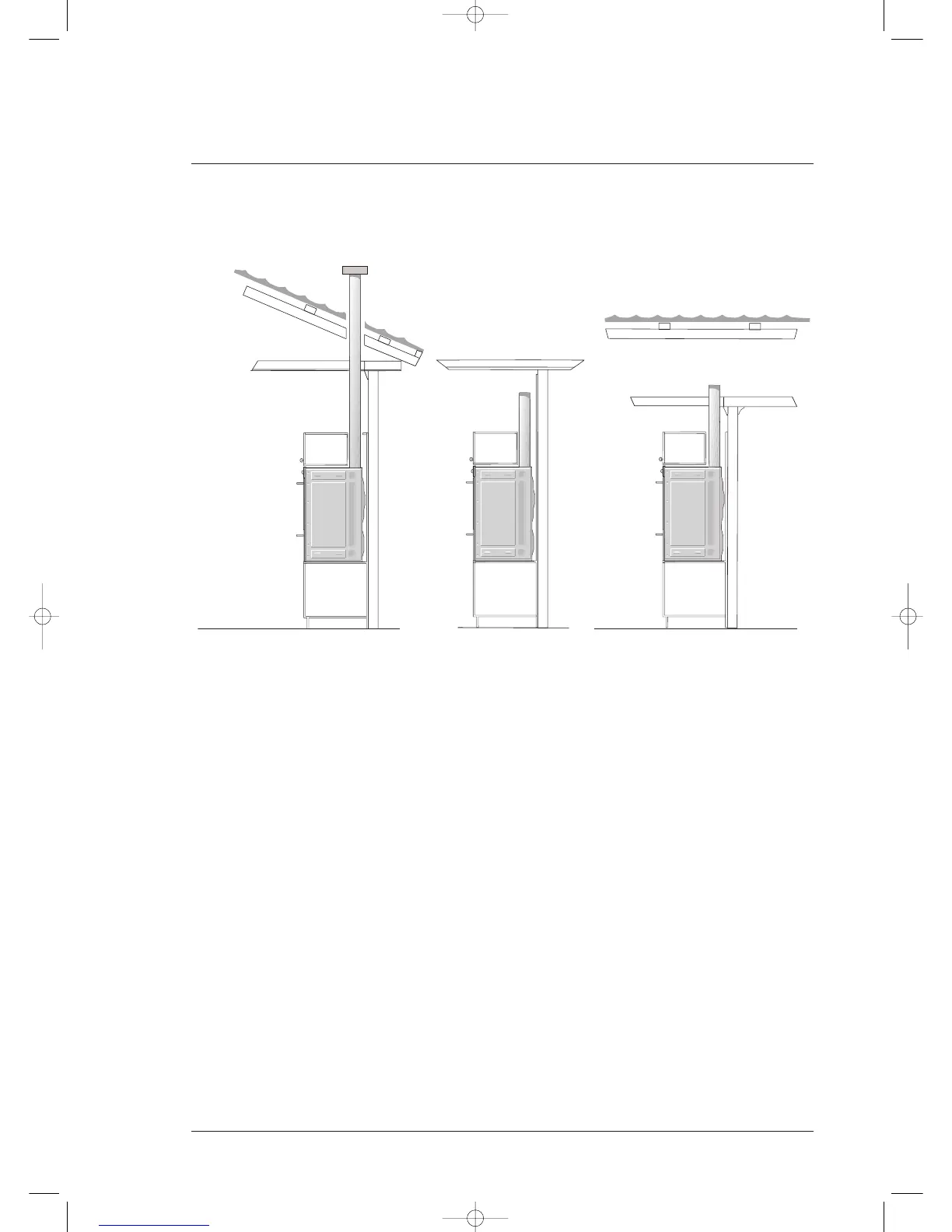

Some typical installation arrangements are shown below.
Ensure that sufficient clearance, protection and venting is provided. Installers must
refer to AS5601/AG601. When venting into the kitchen or roof cavity particular care
must be taken that the flue is terminated in a safe manner, near by combustible
surfaces will not overheat and there is adequate ventilation in the kitchen or roof
cavity.
Vented above Roof
Recommended Option
Vented in Kitchen Vented into roof cavity
