Electrolux EDW 1503 - Water Course Scheme; Dishwasher Water Flow Diagram

- 20 -
03.2004 R.K. 599 519 400 EN
1 Inlet valve
2 Regeneration dosage chamber
3 Back suction safety device
4 Ventilation
5 Washing compartment
6 Dosing device
7 Regeneration water dosage
8 Softener
9 Salt container
10 Regeneration valve
11 Base tray
12 Float switch
13 Pressure switch
14 Filter
15 Circulations pump
16 Flow heater
17 Drain pump
18 Spray arms
19 Drier reservoir
20 Reversing condensation reservoir

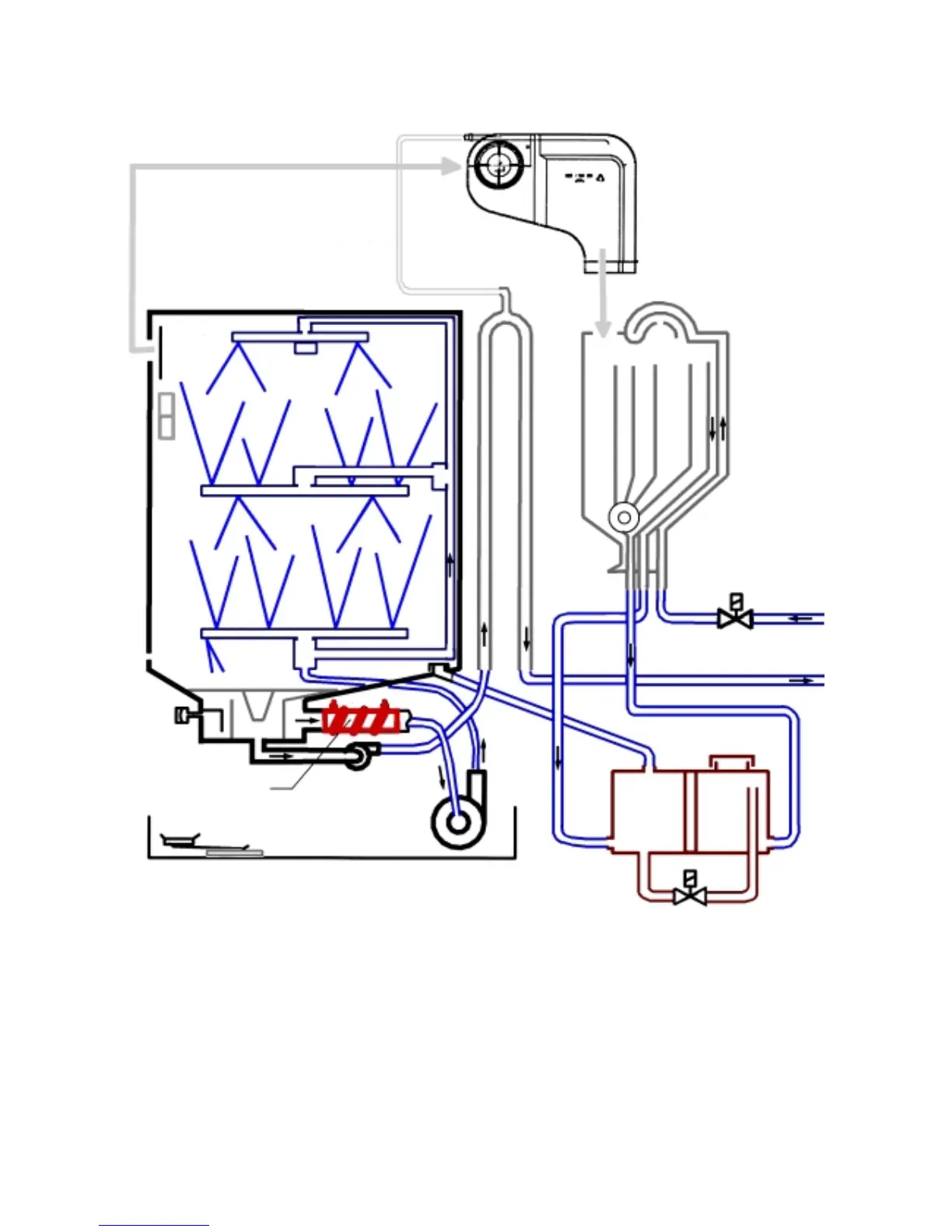

6. Water course scheme
1
2
3
4
6
5
7
89
10
11
12
13
14
15
16
17
18
19
20
18
18
