Installation electrolux 8
EN
INSTALLATION
• Mark a reference point as indicated
at 116 mm from the vertical reference
line and 306 mm above the horizontal
reference line.
• Repeat this operation on the other
side.
• Drill ø 8 mm holes at all the centre
points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the
12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the
air outlet connection support 7.3 to-
gether using the 2 screws 12a (4,2 x
44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4)
supplied in the hood body xing holes,
leaving a gap of 5-6 mm between the
wall and the head of the screw.

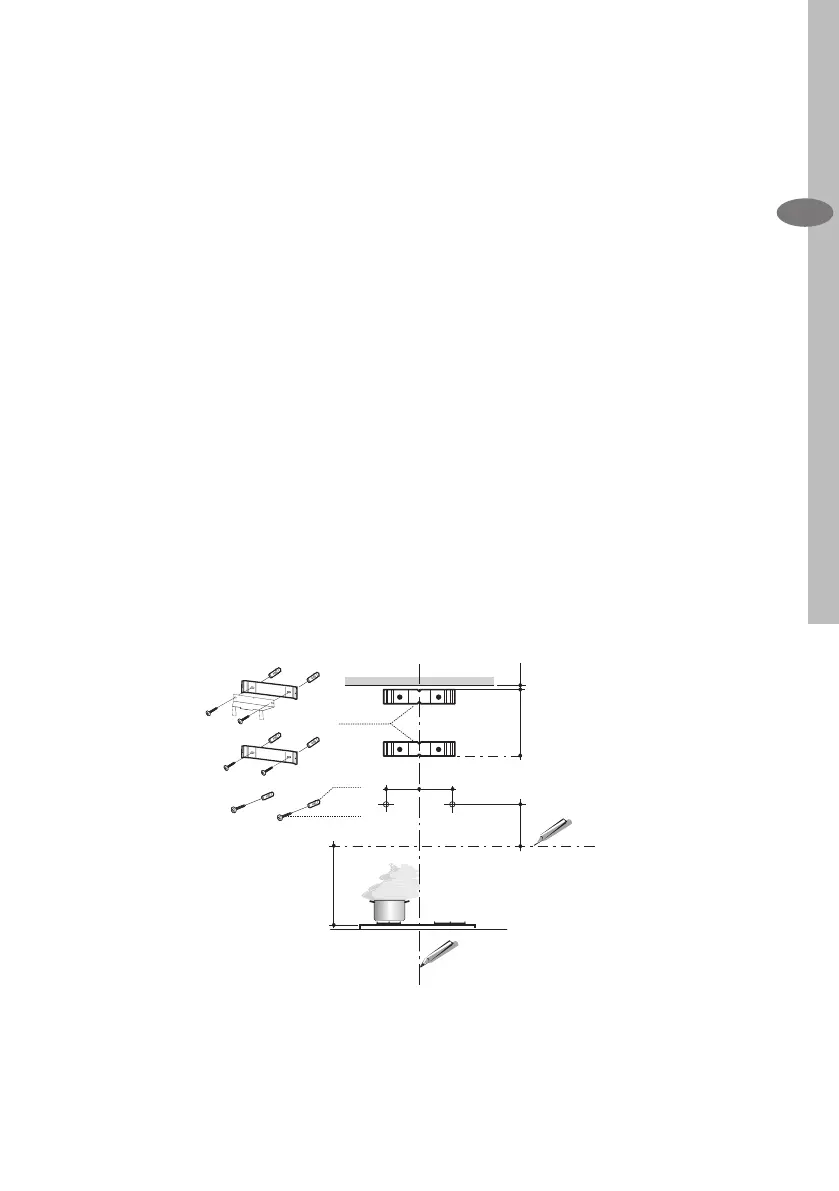

Wall drilling and bracket xing
Wall marking:
• Draw a vertical line on the supporting
wall up to the ceiling, or as high as
practical, at the centre of the area in
which the hood will be installed.
• Draw a horizontal line at 650 mm
above the hob.
• Place bracket 7.2.1 on the wall as
shown about 1-2 mm from the ceil-
ing or upper limit align-ing the centre
(notch) with the vertical reference line.
• Mark the wall at the centres of the
holes in the bracket.
• Place bracket 7.2.1 on the wall as
shown at X mm below the rst brack-
et (X = height of the upper chimney
section supplied), aligning the centre
(notch) with the vertical line.
• Mark the wall at the centres of the
holes in the bracket.
