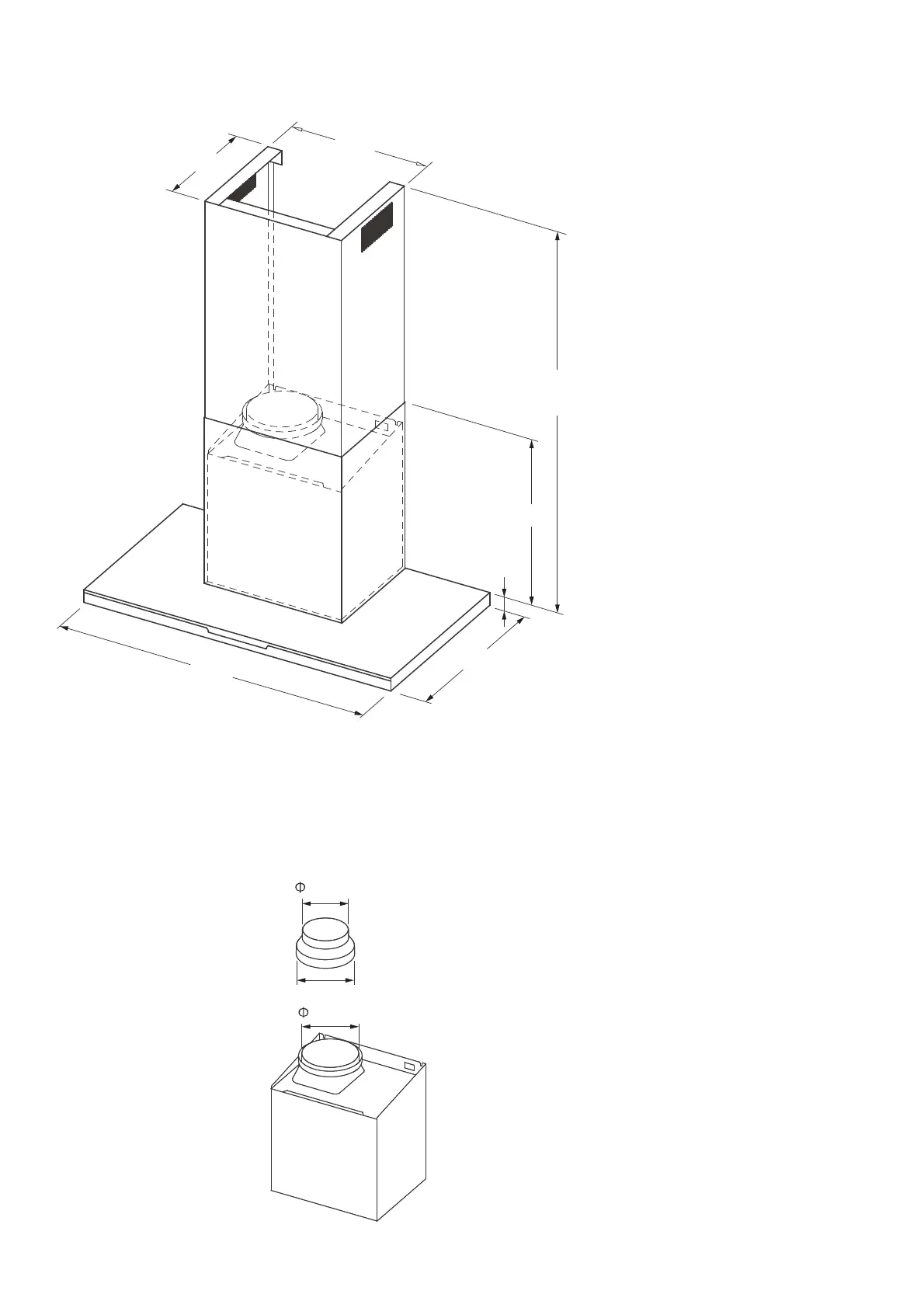

DIMENSIONS
NOTE:
1) The fan housing flue transition duct is 184mm in diameter.
2)
Flue transition duct 184mm to 150mm is for external venting
and Recirculation mode.
400mm
480mm
500mm
895mm
184mm
150mm
38mm
320mm
1120mm
(Maximum)
Fig. 4
Fig. 5
