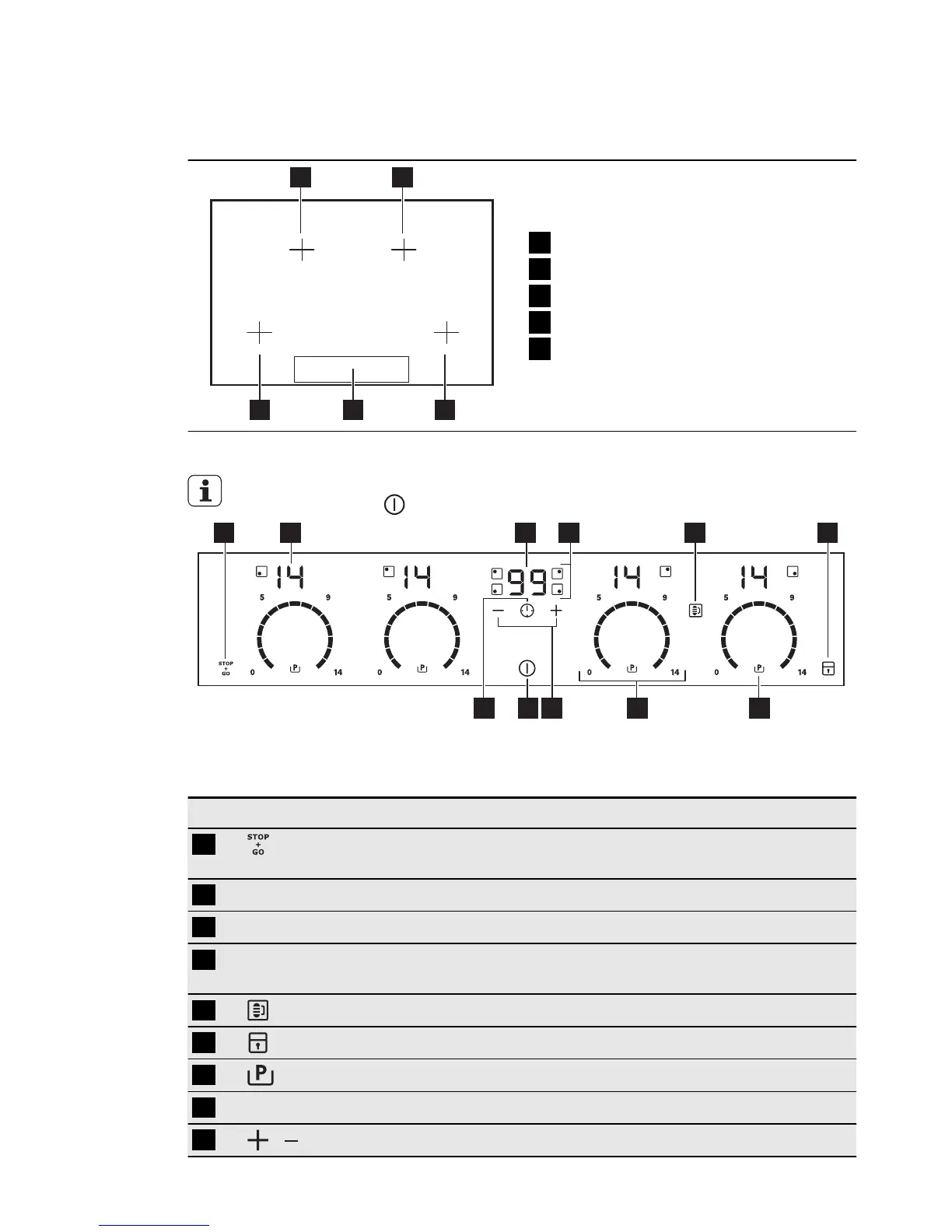

2. PRODUCT DESCRIPTION
2.1 General overview
1 2
3
5 4
1
Induction cooking zone
2
Induction cooking zone
3
Induction cooking zone
4
Control panel
5
Induction cooking zone
2.2 Control panel layout
To see the control panel activate
the appliance with
651 2
3
4
911 8
710
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
sensor field function
1
To activate and deactivate the STOP+GO
function.
2
A heat setting display To show the heat setting.
3
The timer display To show the time in minutes.
4
Timer indicators of cooking
zones
To show for which cooking zone you set
the time.
5
To activate the Connect Function.
6
To lock/unlock the control panel.
7
To activate the Power function.
8
A control bar To set the heat setting.
9
/
To increase or decrease the time.
