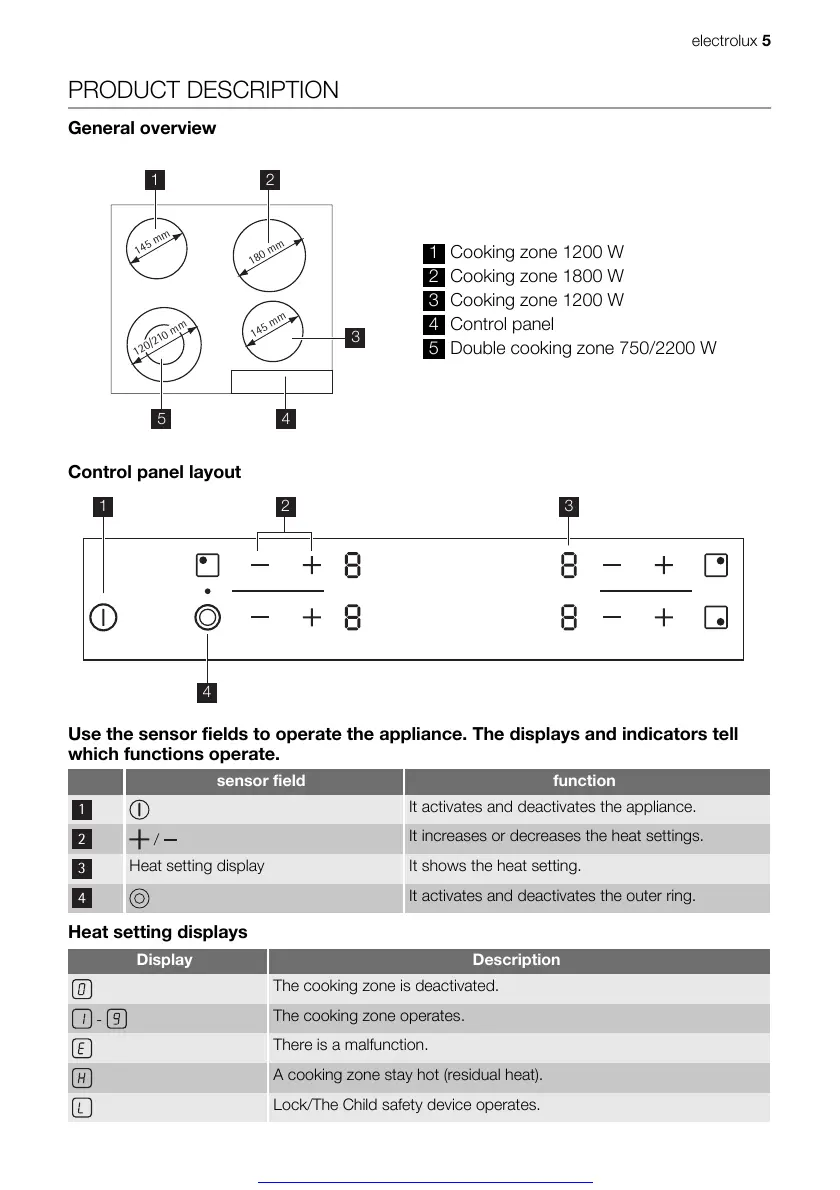

PRODUCT DESCRIPTION
General overview
145 mm
145 mm
120/210 mm
180 mm
3
5
1 2
4
1 Cooking zone 1200 W
2 Cooking zone 1800 W
3 Cooking zone 1200 W
4 Control panel
5 Double cooking zone 750/2200 W
Control panel layout
1 3
4
2
Use the sensor fields to operate the appliance. The displays and indicators tell
which functions operate.
sensor field function
1
It activates and deactivates the appliance.
2
/
It increases or decreases the heat settings.
3
Heat setting display It shows the heat setting.
4
It activates and deactivates the outer ring.
Heat setting displays
Display Description
The cooking zone is deactivated.
-
The cooking zone operates.
There is a malfunction.
A cooking zone stay hot (residual heat).
Lock/The Child safety device operates.
electrolux 5
