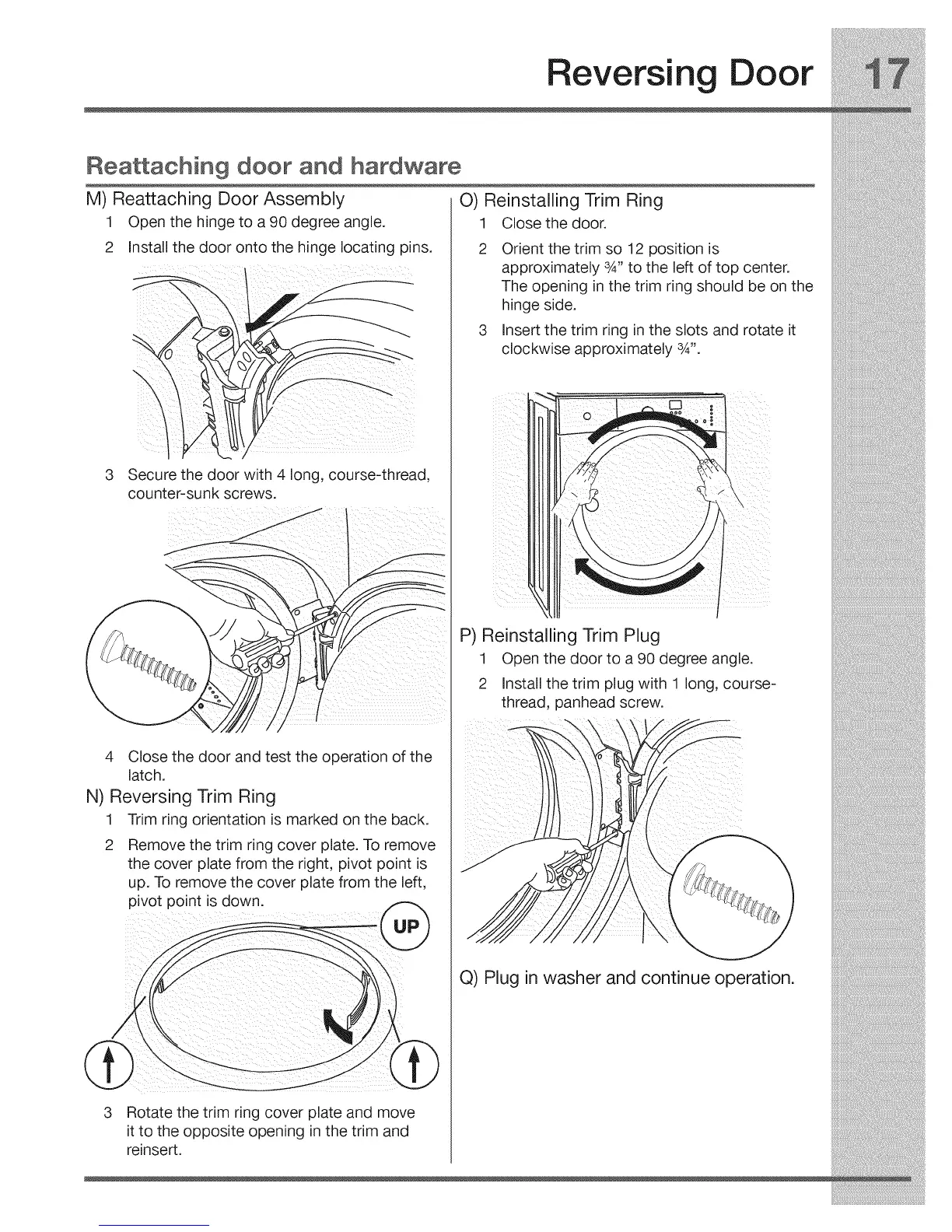

Reversing Door
Reattach[ng door and hardware
M) Reattaching Door Assembly
1 Open the hinge to a 90 degree angle.
2 Install the door onto the hinge locating pins.
\
\
3 Secure the door with 4 long, course-thread.
counter-sunk screws.
4 Close the door and test the operation of the
latch.
N) Reversing Trim Ring
1 Trim ring orientation _smarked on the back.
2 Remove the trim ring cover plate. To remove
the cover plate from the right, pivot point is
up. To remove the cover plate from the left,
pivot point is down.
3 Rotate the trim ring cover plate and move
it to the opposite opening in the trim and
reinsert.
O) Reinstalling Trim Ring
1 CIosethe door.
2 Orient the trim so 12 position is
approximately 3A"to the left of top center.
The opening in the trim ring should be on the
hinge side.
3 Insert the trim ring in the slots and rotate it
clockwise approximately 3A".
P) Reinstalling Trim Plug
1 Open the door to a 90 degree angle.
2 Install the trim plug with 1 long, course-
thread, panhead screw.
Q) Plug in washer and continue operation.
