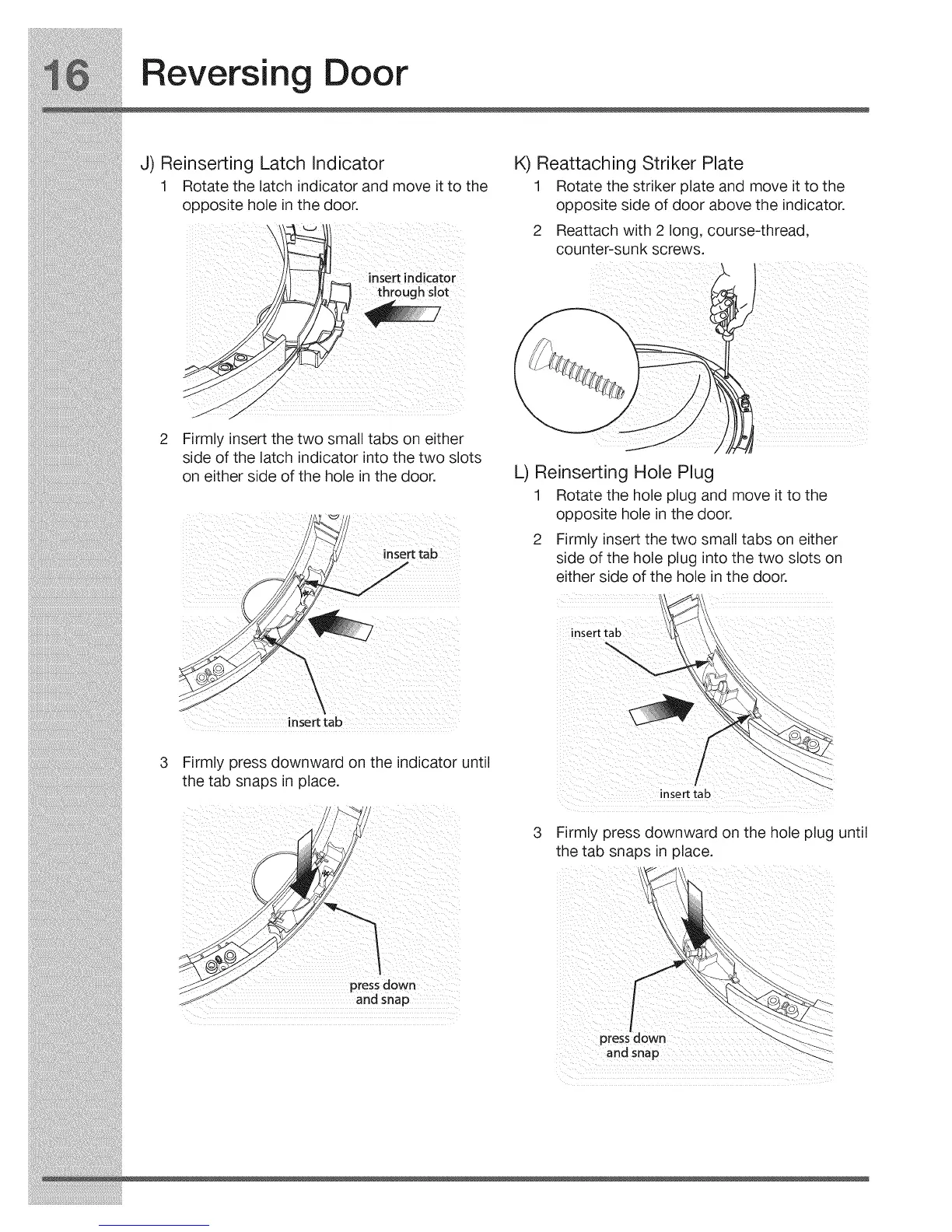

Reversing Door
J) Reinserting Latch Indicator
1 Rotate the latch indicator and move it to the
opposite hole in the door.
2 Firmly insert the two small tabs on either
side of the latch indicator into the two slots
on either side of the hole in the door.
insert tab
Firmly press downward on the indicator until
the tab snaps in place.
K) Reattaching Striker Plate
1 Rotate the striker plate and move it to the
opposite side of door above the indicator.
Reattach with 2 long, course-thread,
counter-sunk screws.
L) Reinserting Hole Plug
1 Rotate the hole plug and move it to the
opposite hole in the door.
2 Firmly insert the two small tabs on either
side of the hole plug into the two slots on
either side of the hole in the door.
insert tab
/
I
h
insert tab
Firmly press downward on the hole plug until
the tab snaps in place.
and snap
