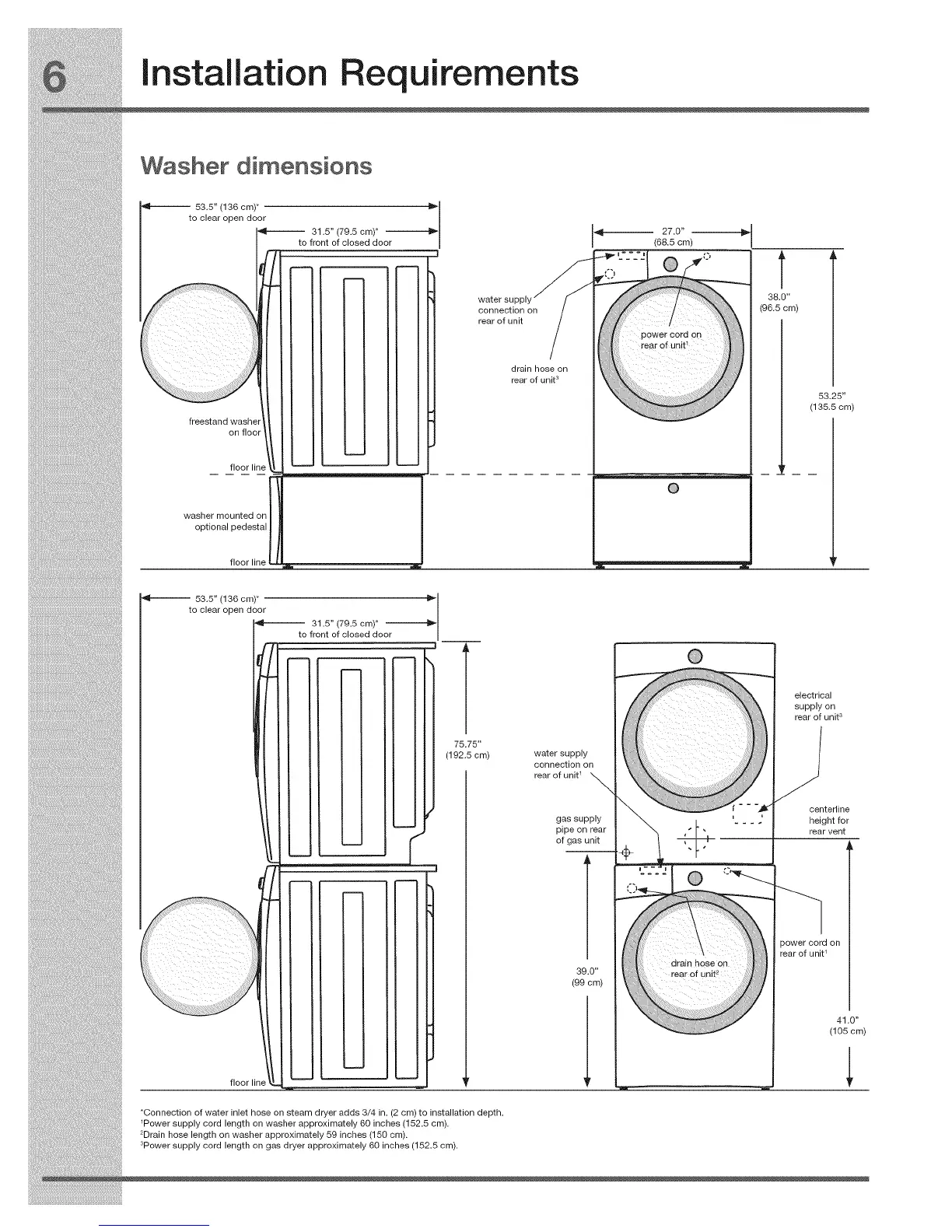

Installation Requirements
Washer dimensions
53.5" (136 cm)*
to clear open door
freestand washer
on floor
floor lin_
washer mounted on
optional pedestal
floor line
31.5" (79.5 cm)* ----------4_
to front of c osed door
water su
connection on
rear of unit
drain hose on
rear of unit 3
_t-- 27.0" --(68.5 cm) fl
T
38.0"
(96.5 cm)
®
53.25"
(135.5 cm)
53.5" (136 cm)*
to clear open door
floor lin
75.75"
(192.5 cm)
water supply
connection on
rear of unit _
gas supply
pipe on rear
of gas unit
39.0"
(99 cm)
÷
electrical
supply on
rear of unit 3
centerline
L . _ height for
rear vent
drain hose on
power cord on
rear of unit _
*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
_Power supply cord length on washer approximately 60 inches (152.5 cm).
2Drain hose length on washer approximately 59 inches (150 cm).
SPower supply cord length on gas dryer approximately 60 inches (152.5 cm).
41.0"
(105 cm)
