IInnssttaallllaattiioonn IInnffoorrmmaattiioonn
2-19
RReemmoovviinngg SSttrriikkeerr PPllaattee
1. Remove 2 long, course-thread, counter-sunk
screws and striker plate. (See Figure 2-33)
2. Set the striker plate to the side for later.
RReemmoovviinngg LLaattcchh IInnddiiccaattoorr
1. Grasp the indicator on the latch side
between finger and thumb and rock it
upward, pivoting away from the center of the
glass.
(See Figure 2-34)
2. Gently push the indicator toward the center
of the lens to release the tab.
3. Rock the tab upward.
(See Figure 2-35)
4. Pull the indicator out and set it aside.
(See Figure 2-36)

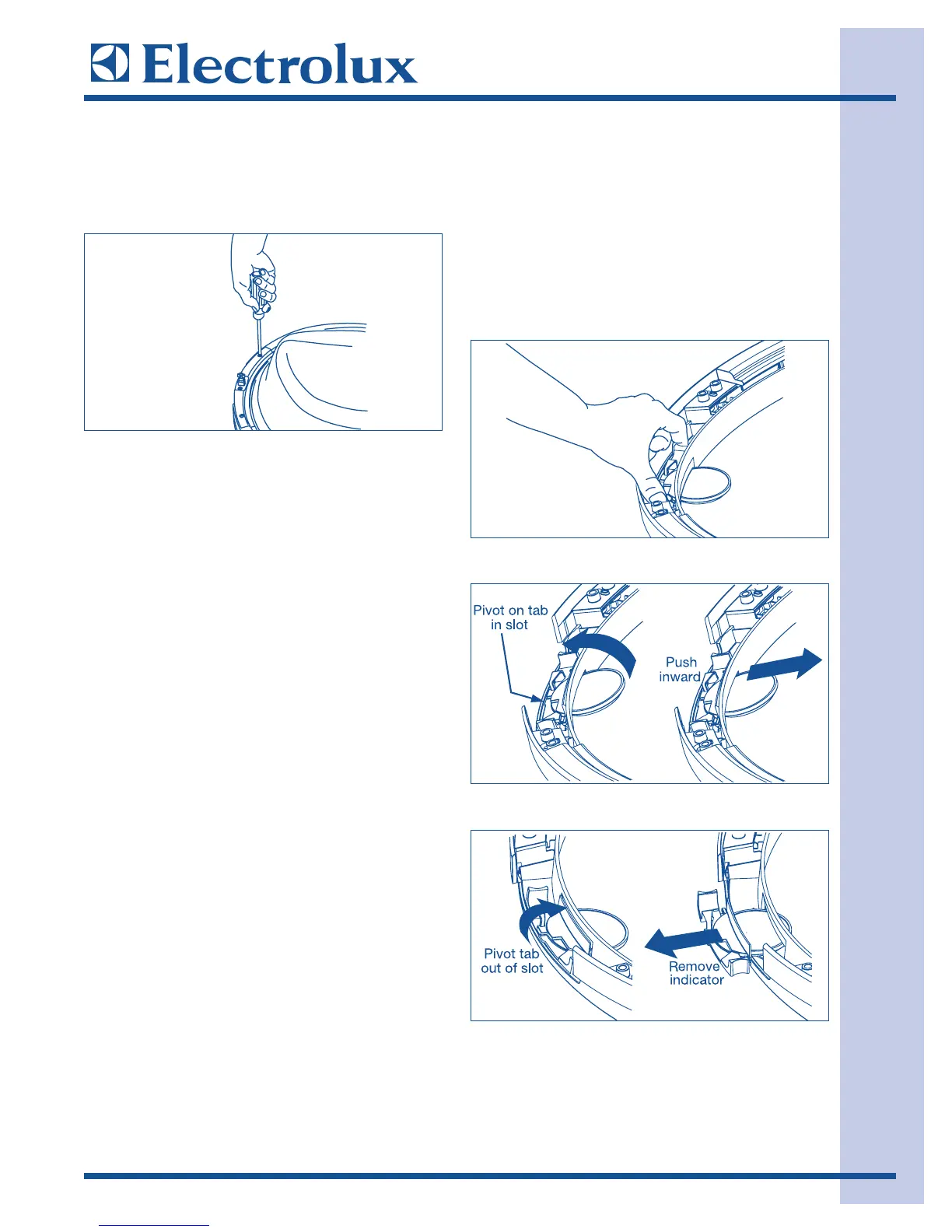

FFiigguurree 22--3333..
FFiigguurree 22--3344..
FFiigguurree 22--3355..
FFiigguurree 22--3366..
