CCoommppoonneenntt TTeeaarrddoowwnn
EExxhhaauusstt TThheerrmmaall LLiimmiitteerr RReemmoovvaall
((EElleeccttrriicc aanndd GGaass MMooddeellss))
The exhaust thermal limiter is mounted with
screws to the right side of the exhaust tube and is
accessible from the rear of the machine.
To remove the exhaust thermal limiter:
1. Remove the top panel, rear top brace and the
rear panel.
2. From the rear of the unit, disconnect the
wire leads from the exhaust thermal limiter
terminals.
3. Using a #2 square bit screwdriver, extract
the two screws securing the exhaust thermal
limiter to the exhaust tube. (See Figure 4-33)
EExxhhaauusstt TTuubbee RReemmoovvaall ((EElleeccttrriicc aanndd GGaass MMooddeellss))
The exhaust tube is secur
ed at the rear of the unit
with a screw to the unit base. A rubber seal slides
over the connection between the exhaust tube and
the blower assembly.
To remove the exhaust tube:
1. Remove the top panel, rear panel, console,
front panel, front inner panel and drum.
2. Disconnect the wire leads from the exhaust
thermal limiter terminals. Slide rubber seal onto
the exhaust tube. (See Figure 4-34)
3. Using a #2 square bit screwdriver, extract
the screw securing the exhaust tube to the unit
base. Pull tube out of blower assembly outlet.
OOuuttlleett ((EExxhhaauusstt)) TThheerrmmiissttoorr RReemmoovvaall
((EElleeccttrriicc aanndd GGaass MMooddeellss))
The outlet thermistor is mounted with a screw to
the front of the exhaust side of the blower outlet
ducting.
To remove the outlet thermistor:
1. Remove the top panel, rear panel, console,
front panel, front inner panel and drum.
2. Disconnect the wire leads from the outlet
thermistor terminals.
3. Using a #2 square bit screwdriver, extract the
screw securing the outlet thermistor to the
blower outlet duct. (See Figure 4-35)

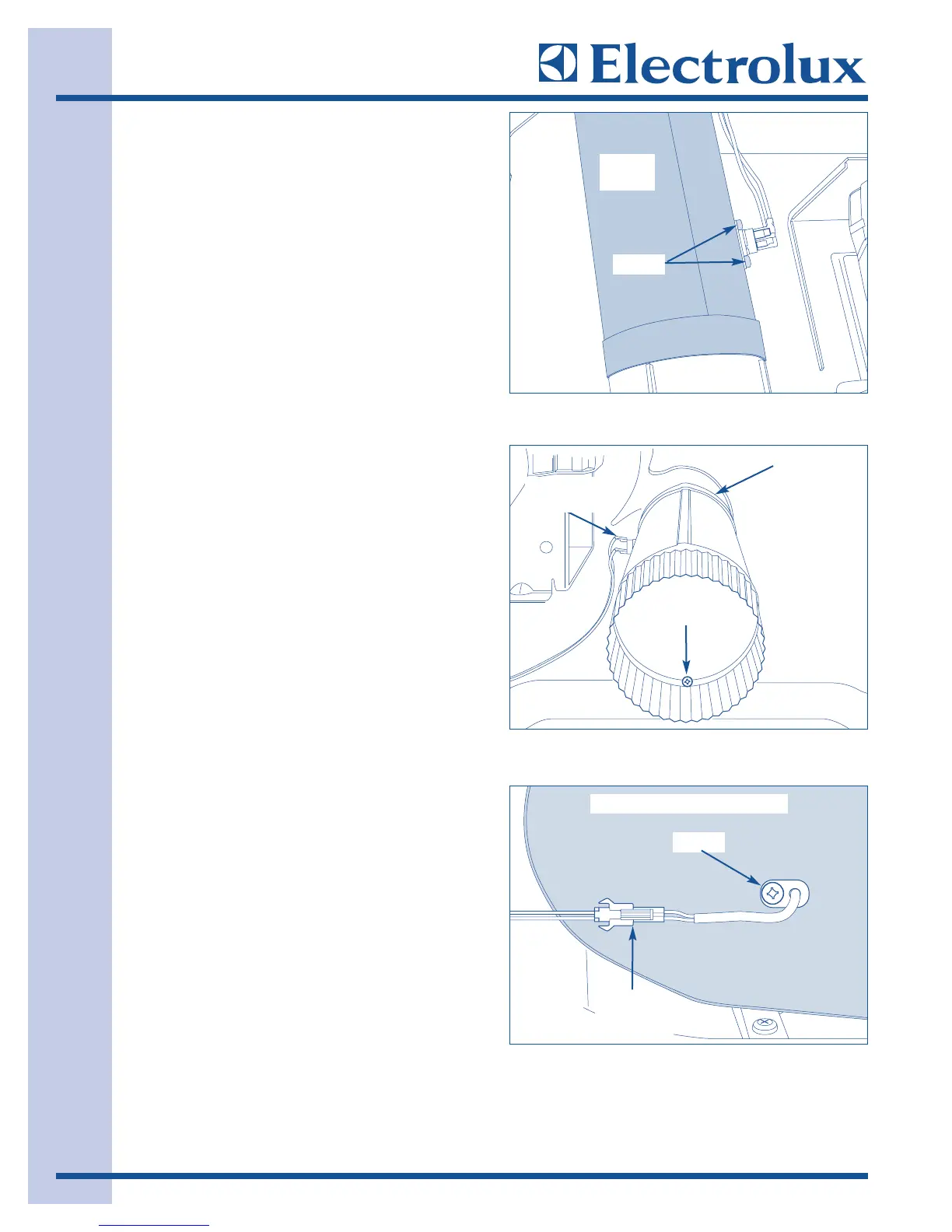

FFiigguurree 44--3333..
FFiigguurree 44--3355..
Screw
Screws
Blower Outlet Duct
Electrical
Connection
Exhaust
Duct
Rubber Seal
FFiigguurree 44--3344..
Screw
Electrical
Connection
