3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information bellow from the rating plate.
The rating plate is on the bottom of the
hob.
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you
assemble the hob into correct built-in
units and work surfaces that align to the
standards.
3.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable,
use the cable type: H05V2V2-F which
withstands a temperature of 90°C or
higher. Speak to your local Service
Centre.

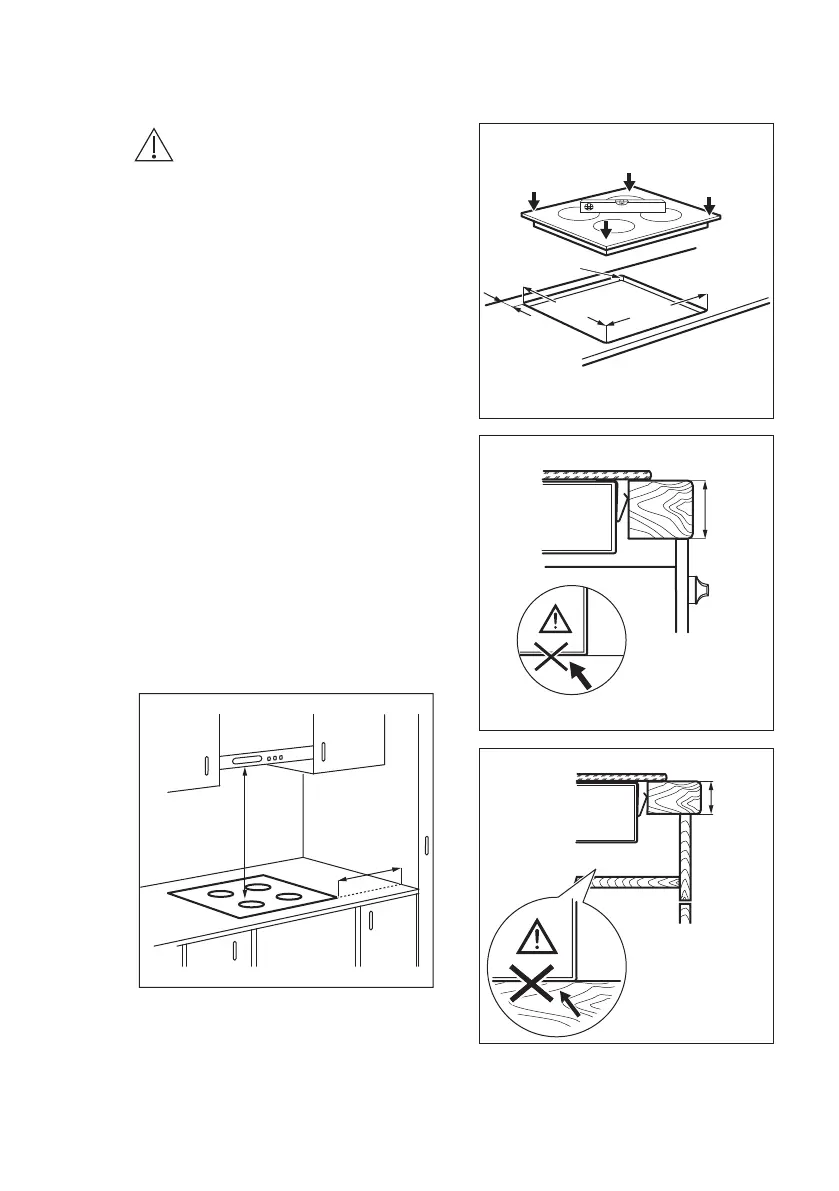

3.4 Assembly
min.
50mm
min.
500mm
R 5mm
min.
55mm
560
+1
mm
490
+1
mm
min.
28 mm
min.
12 mm
