26 electrolux using the oven
Mechanical door lock
When the appliance is delivered the
door lock is deactivated.

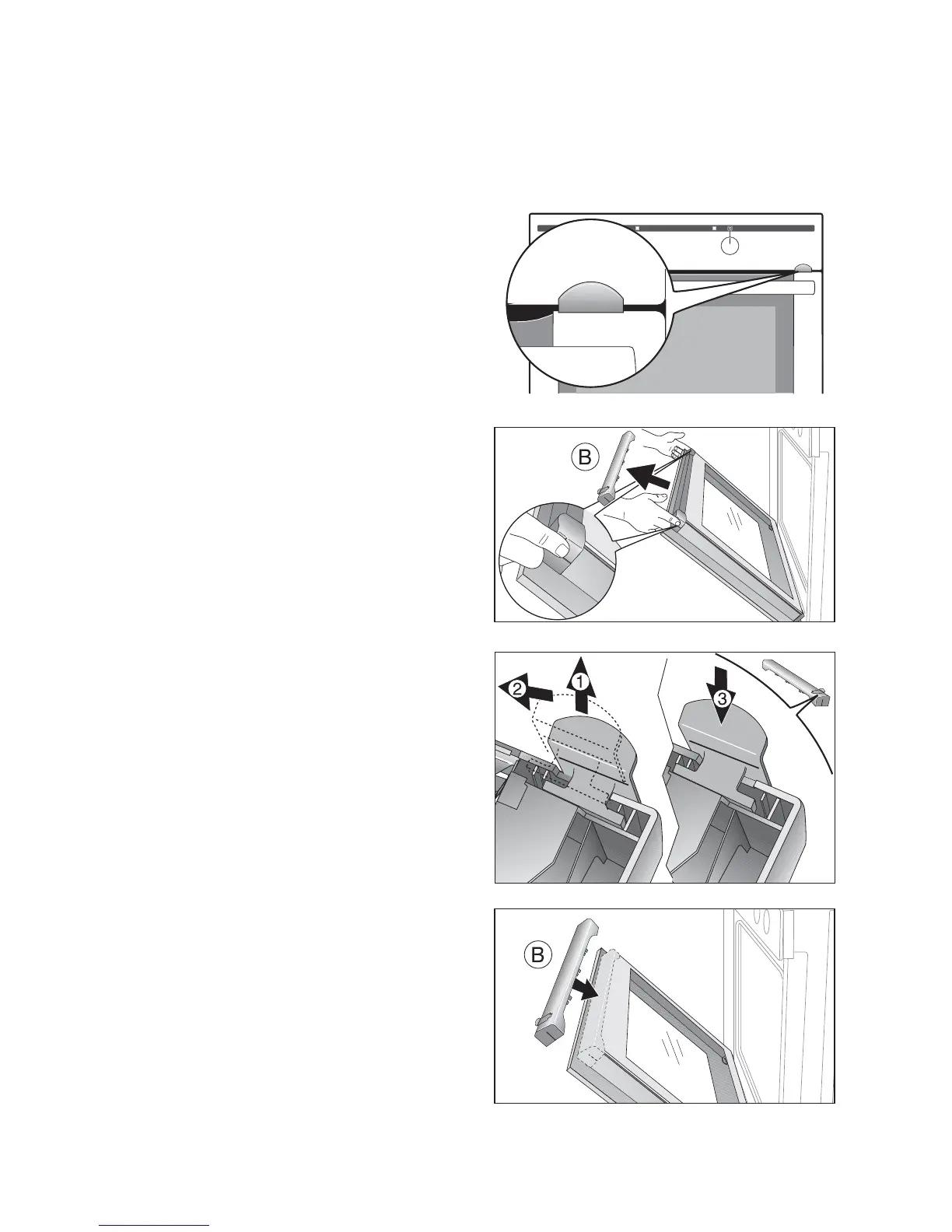

Activating door lock
1. Take hold of the door trim(B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling it upwards.
2. Activate lever:
Remove lever (1) and
move 4mm to the left (2)
and insert (3).
3. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim (B)
into the upper edge of the door
