Electrolux EOC3430 - Appliance Installation; Building In and Securing; Electrical Installation and Cable

We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
12. INSTALLATION
WARNING!
Refer to Safety chapters.

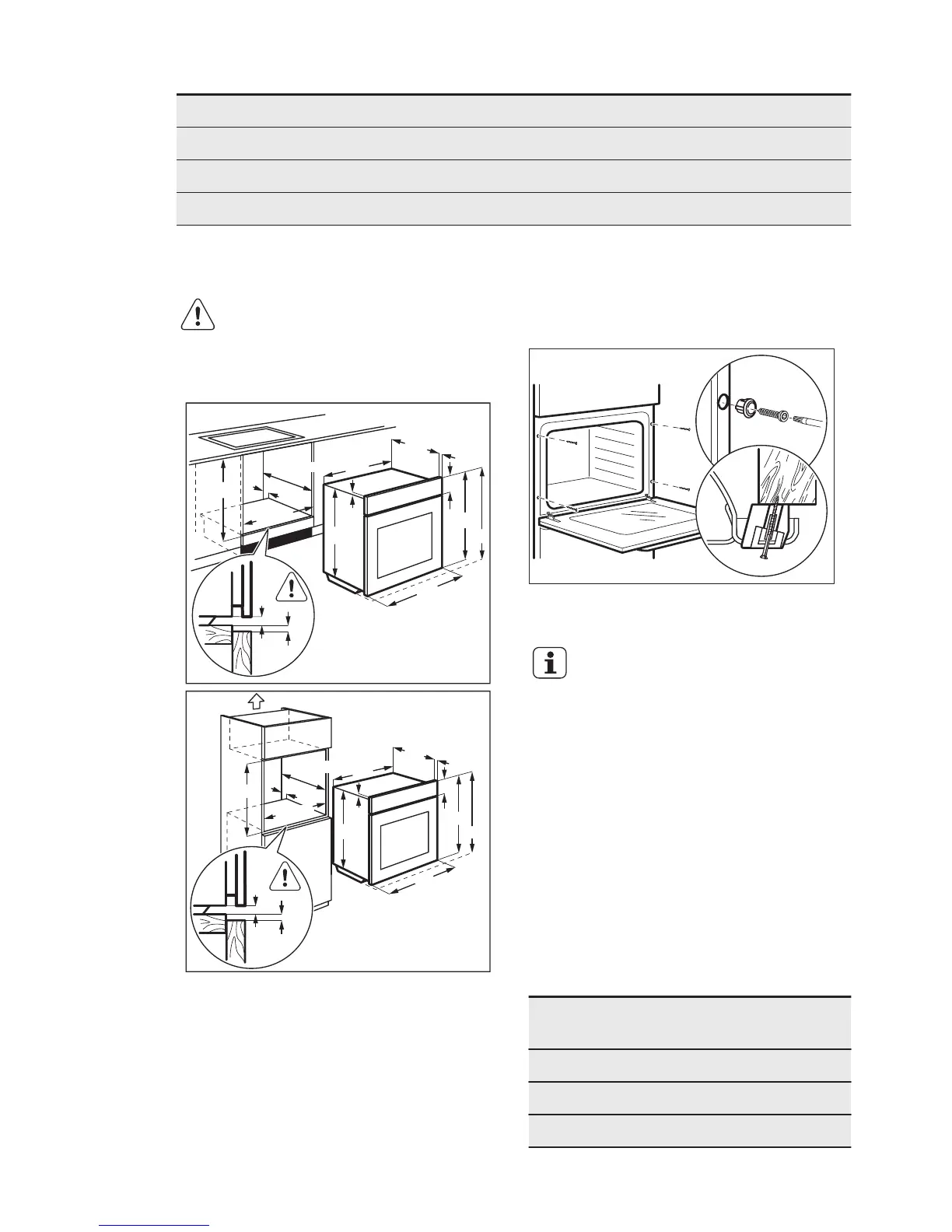

12.1 Building In
594
16
573
21548
min. 550
20
600
min. 560
558
589
114
594
3
5
558
21548
min. 550
20
589
594
114
16
573
590
min. 560
594
3
5
12.2 Securing the appliance to
the cabinet
A
B
12.3 Electrical installation
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
This appliance is supplied with a main plug
and a main cable.
12.4 Cable
Cable types applicable for installation or
replacement: H07 RN-F, H05 RN-F, H05
RRF, H05 VV-F, H05 V2V2-F (T90), H05
BB-F.
For the section of the cable refer to the
total power on the rating plate and to the
table:
Total power (W) Section of the
cable (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
ENGLISH
27
