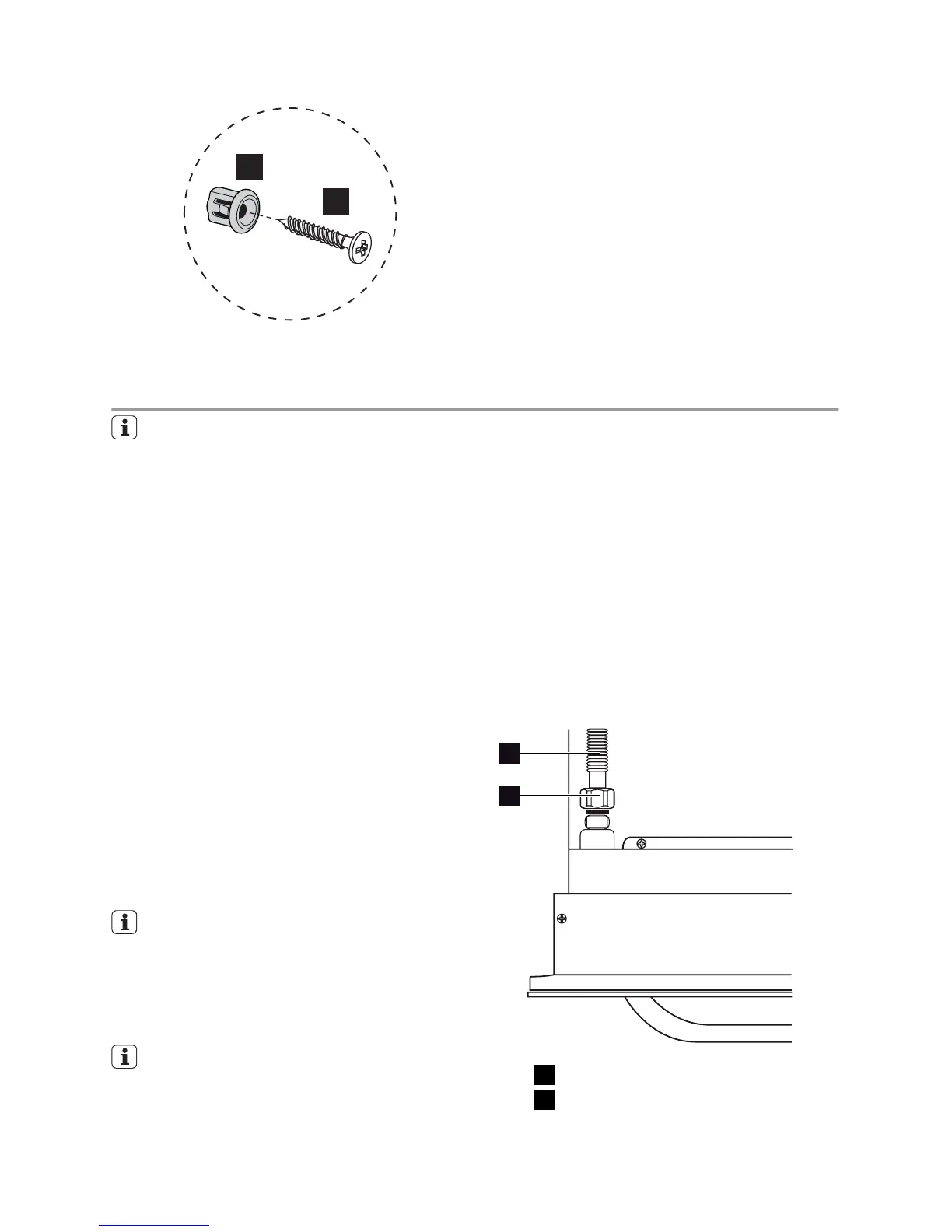

1. Open the oven door.
2. Fasten the oven to the cabinet placing the
four distance holders provided with the
appliance (A) which fit exactly into the
holes in the frame and then fit four wood
screws (B).
When installing a hob over the oven, the hob
electrical connection and the oven one have
to be carried out separately for security rea-
sons and to let the oven be taken off the
cabinet easier, if necessary.
Any extensions must be made with cables
suitable for the required power.
Gas supply
The gas connection must be carried out
in compliance with the current regula-
tions.
The appliances leave the factory, tested and
adjusted for the type of gas specified on the
plate located in the bottom protection, near
the gas connection pipe. Make sure the type
of gas used is the same as that specified on
the plate. Otherwise, proceed according to
the instructions given in the section “Con-
verting to different types of gas”.
To ensure maximum efficiency and lower
consumption, make sure the gas supply
pressure respects the values given in the
“Oven burner specifications” table.
If the pressure of the gas used is different (or
variable) from that provided for, a suitable
pressure regulator for the gas (NOT LPG),
complying with current standards, must be
installed on the inlet pipe. The use of pres-
sure regulators for liquified gases (LPG) is al-
lowed provided they comply with current
standards.
The use of a gas cooking appliance pro-
duces heat and humidity in the room
where it is installed. Ensure good venti-
lation in the room by keeping air inlets
open and efficient, or install an extractor
hood with exhaust flue.
Intensive and prolonged use of the ap-
pliance may require extra ventilation,
e.g. by opening a window or by increas-
ing the power of the extractor, if present.
Connection
The oven feed gas train is located at the front,
behind the control panel.
Connection:
1. Partially insert the oven in the cabinet (ap-
prox. 30 cm) and access the gas train
from above. Make the gas connection,
choosing from one of the two systems:
– flexible metal tube limited to those
not longer than 2 m: screw the union
onto the 1/2 inch gas train, inserting
the gasket, which is included in the bag
of accessories.
1
2
1 Flexible tube
2 Gasket
