LOCATION OF APPLIANCE
This appliance must not be installed in a bed-sitting room of volume less than 20m³ or in a bathroom, shower
room or garage.
It is essential that there is a minimum clearance of 3mm between the top surface of the appliance and
the inside top of the cabinet. The unit must be fitted into a cabinet conforming to Fig. 1. The following
internal dimensions are particularly important.
Height 874............Minimum 879..........Maximum
Width 560............Minimum 570..........Maximum
Solid Pipe Depth 560........... Minimum N/A.........Maximum
Flexible Pipe Depth 575............Minimum N/A.........Maximum
NOTE: Where a cupboard door with a handle is situated above the appliance, we recommend a minimum
clearance gap of 5mm between fascia top trim and door.
L.P.G. cookers MUST NOT be installed below ground level, i.e. in a basement, or aboard any boat, yacht or
other vessel.
35
2000 recommended
560 min
879 max
874 min

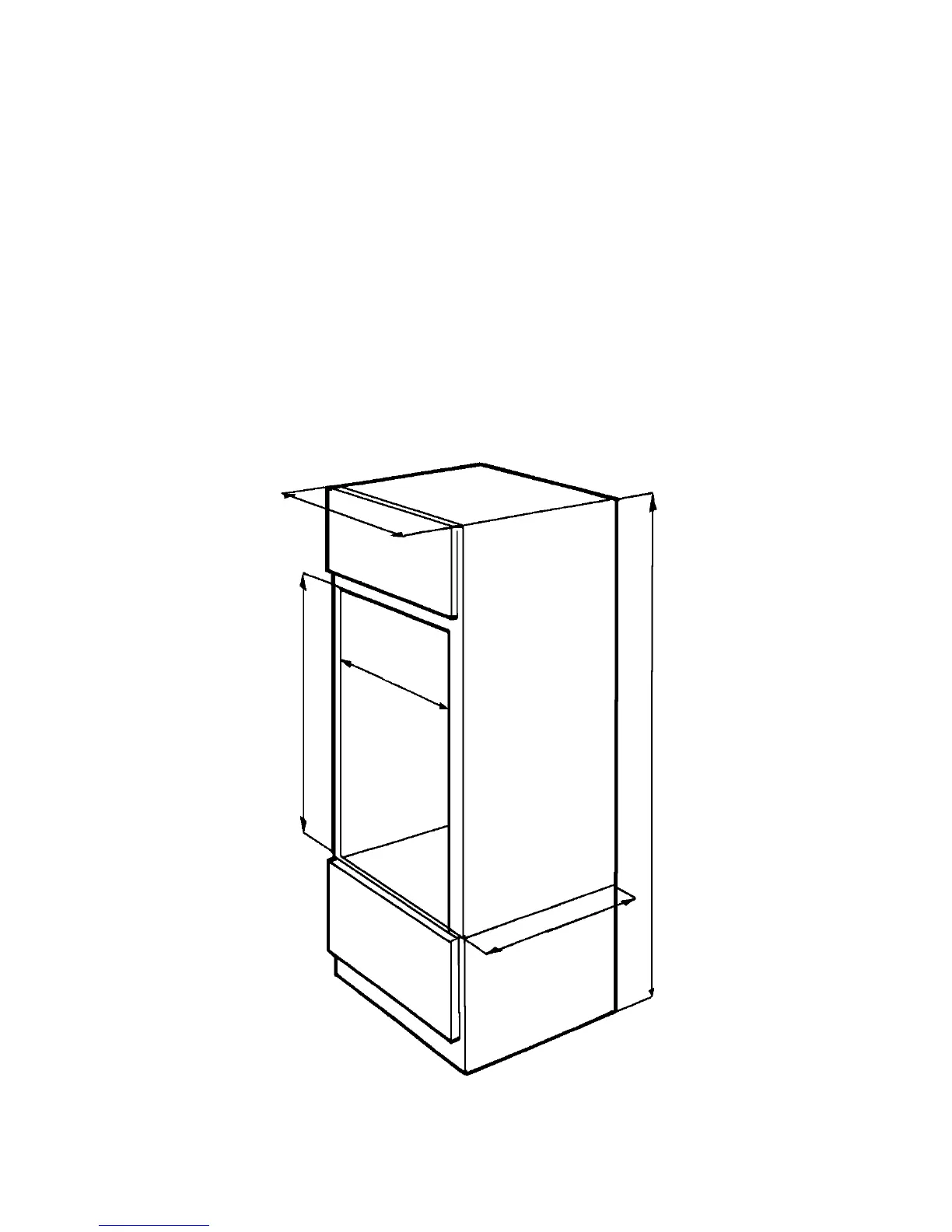

Fig.1
600 min
560 min
570 max
