6 installation of window kit electrolux EPV09CRA & EPV12CRA
Installation in a double-hung sash window

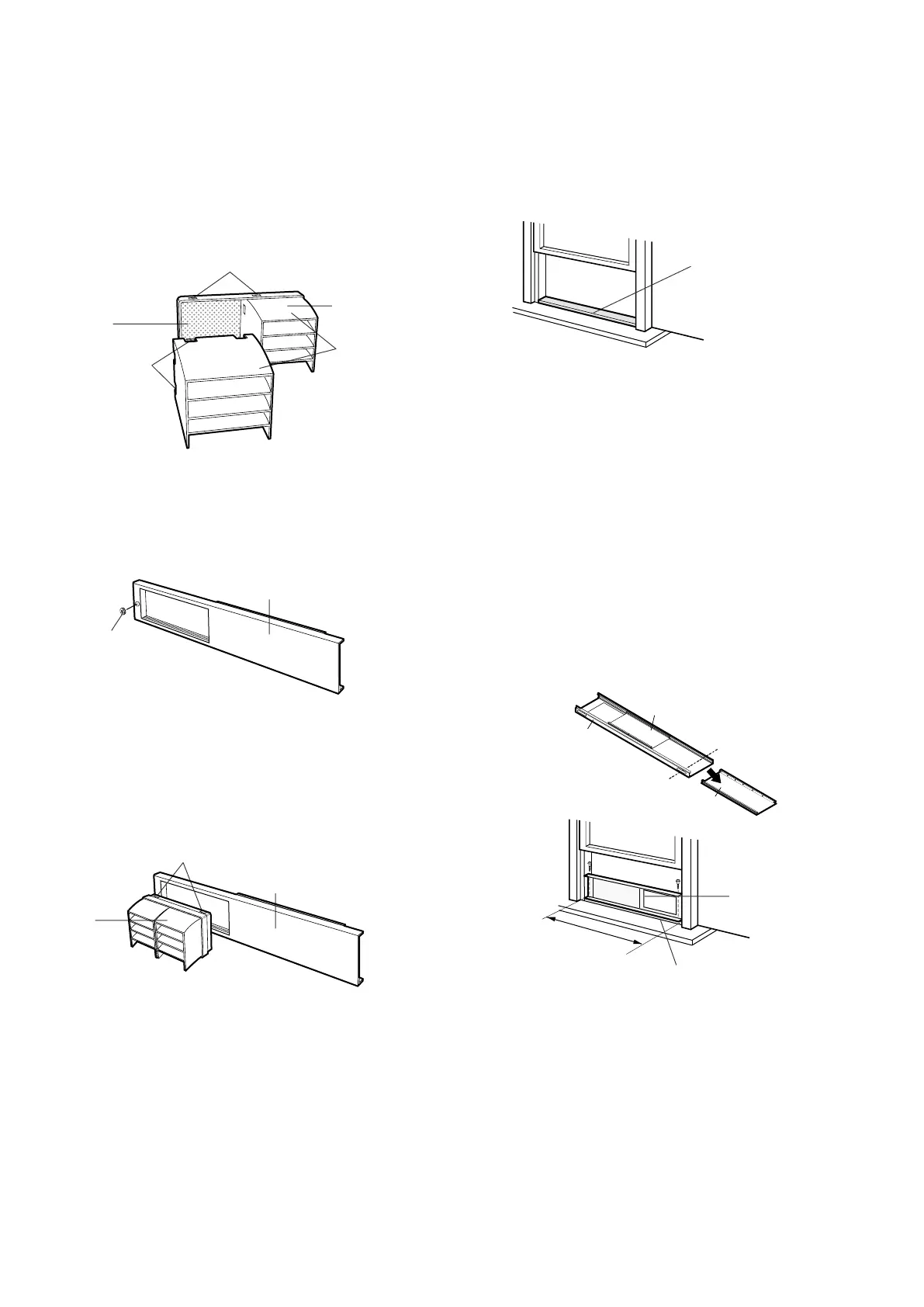

1. Connect the rain guards to the insect guard net.
• Insert all three pr
ojections on each rain guard into the
holes in the insect guard net.
• Side “A” will now be uppermost, as indicated in the
diagram.
2. Attach the bushing into the hole of the window panel.
• This bushing can be used as a point to run the drain
hose for external drainage.
3. Attach the guard combined above to the window panel
• Push the insect guard net firmly to ensure that its four
projections fit into the holes in the window panel.
• Side “A” will now be at the top, as indicated in the
diagram.
Installation of window kit
Window panel
559mm - 609mm
Window sill
Hole
Projection
Insect guard
net
Rain guard
“A”
Bushing
Window panel
Window panel
Projection
“A”
Foam seal A
(adhesive type)
Adjustment panel
Exhaust cover
Window
panel
Cut
Window panel
559mm - 609mm
Window sill
Hole
Projection
Insect guard
net
Rain guard
“A”
Bushing
Window panel
Window panel
Projection
“A”
Foam seal A
(adhesive type)
Adjustment panel
Exhaust cover
Window
panel
Cut
4. Cut the foam seal A (adhesive type) to the proper length
and attach it to the window sill
5. Attach the window panel to the window sill
(A) If the inner width of the window is between 559mm and
609mm inclusive:
The window panel cannot be installed in windows less
than 559mm wide, as you will be unable to shut the
exhaust cover.
In such cases the exhaust cover will have to be removed
prior to installing the window panel.
• Remove the adjustment panel from the window panel,
and cut the window panel to the same width as the
window
• Open the window sash and place the window panel
on the window sill
• Secure the window panel to the window stool with 2
screws
Window panel
559mm - 609mm
Window sill
Hole
Projection
Insect guard
net
Rain guard
“A”
Bushing
Window panel
Window panel
Projection
“A”
Foam seal A
(adhesive type)
Adjustment panel
Exhaust cover
Window
panel
Cut
Window panel
559mm - 609mm
Window sill
Hole
Projection
Insect guard
net
Rain guard
“A”
Bushing
Window panel
Window panel
Projection
“A”
Foam seal A
(adhesive type)
Adjustment panel
Exhaust cover
Window
panel
Cut
Window panel
559mm - 609mm
Window sill
Hole
Projection
Insect guard
net
Rain guard
“A”
Bushing
Window panel
Window panel
Projection
“A”
Foam seal A
(adhesive type)
Adjustment panel
Exhaust cover
Window
panel
Cut
