electrolux EPV09CRA & EPV12CRA installation of window kit 7
Installation in a double-hung sash window (cont.)

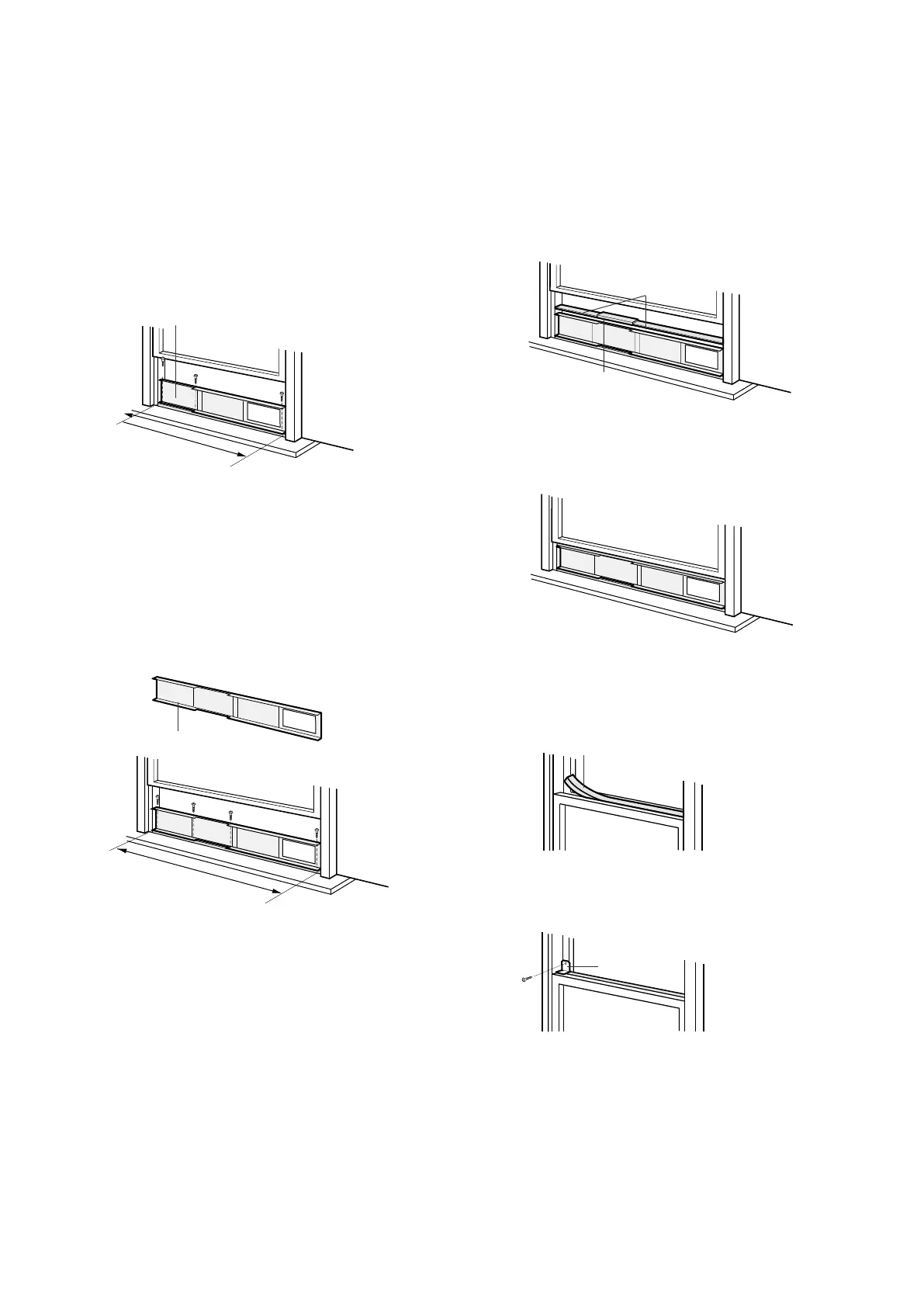

(B) If the inner width of the window is between 609mm and
934mm inclusive:
• Open the window sash and place the window panel
on the window stool.
• Slide the adjustment panel to fit the window frame
width.
• Secure the window panel to the sill with 3 screws.
(C) If the inner width of the window is between 934mm and
1219mm inclusive:
• Attach the extension panel to the adjustment panel.
• Open the window sash and place the window panel
on the window stool.
• Slide the adjustment and extension panels to fit the
window frame width.
• Secur
e the window panel to the window stool with
4 screws.
Adjustment panel
609mm - 934mm
Extension panel
934mm - 1219mm
Foam seal A
(adhesive type)
Foam seal B
(adhesive type)
Foam seal
Bracket
6. Cut the foam seals A and B (adhesive type) to the proper
length and attach it to the window panel
• Attach foam seal A to the window panel and extension
panel, and attach foam seal B to the adjustment panel.
7. Close the window sash securely against the window
panel
8. Cut the foam seal to an appropriate length and seal the
opening between the top of the inner window sash and
the outer window sash
9. Attach a bracket with the screw
