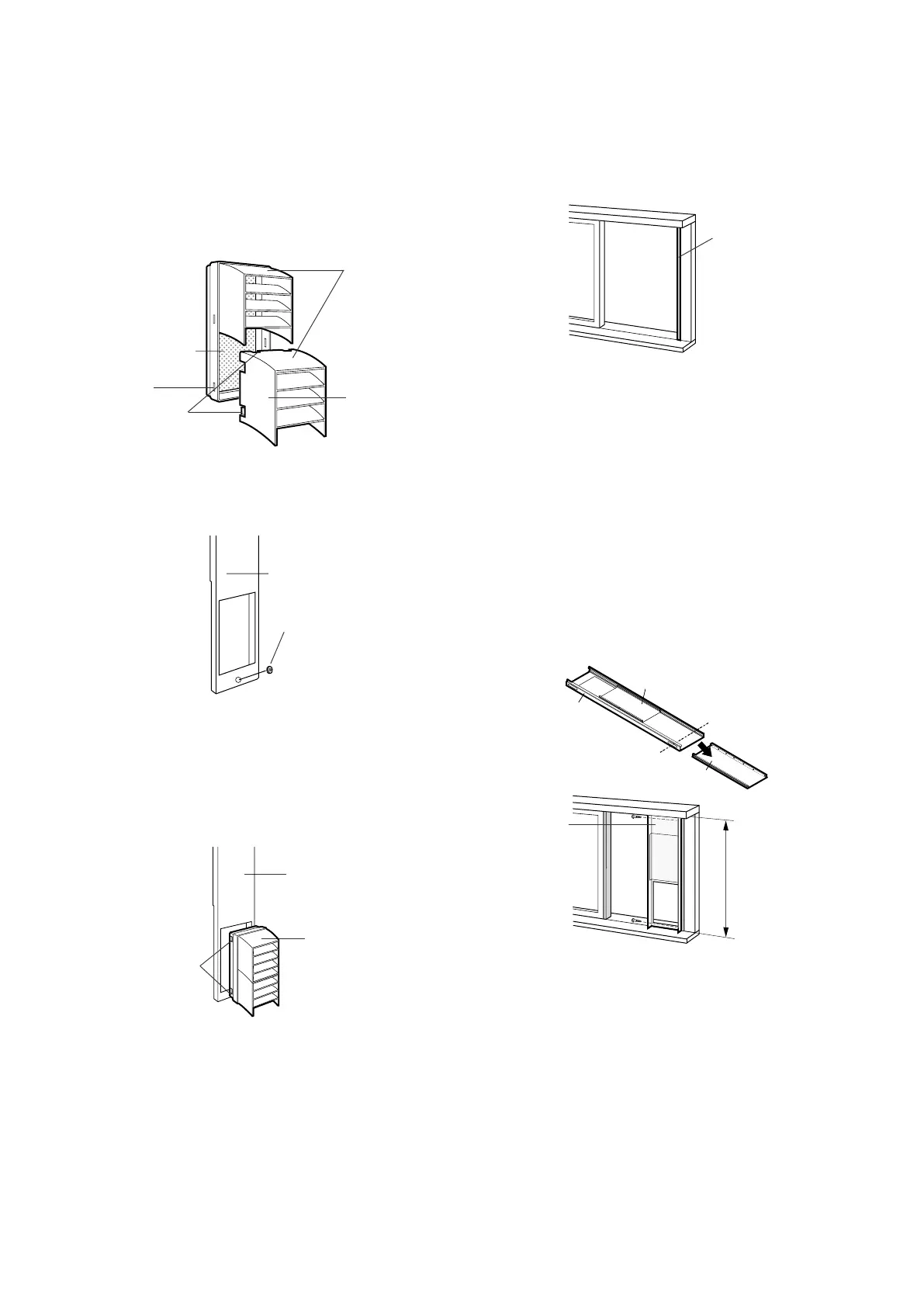

Installation in a sliding sash window
1. Connect the rain guards to the insect guard net
• Insert all three projections on each rain guard into the
holes in the insect guard net.
• Side “A” will now be uppermost, as indicated in the
diagram.
2. Attach the bushing into the hole of the window panel
• The bushing can be used as a point to run the drain
hose for external drainage.
3. Attach the guard combined with insect guard net to the
window panel
• Push the insect guard net firmly to ensure that its four
projections fit into the holes in the window panel.
• Side “A” will now be at the top, as indicated in the
diagram, when it is installed in the window.
Foam seal A
(adhesive type)
Window
panel
559mm - 609mm
Hole
Projection
Insect guard net
Rain guard
“A”
Window
panel
Projection
“A”
Window
panel
Bushing
Adjustment panel
Exhaust cover
Window
panel
Cut
8 installation of window kit electrolux EPV09CRA & EPV12CRA
4. Cut the foam seal A (adhesive type) to the proper length
and attach it to the window frame
5. Install the window panel into the window frame
(A) If the inner height of the window is between 559mm and
609mm inclusive:
The window
panel cannot be installed in windows less
than 559mm high, as you will be unable to shut the
exhaust cover.
In such cases the exhaust cover will have to be removed
prior to installing the window panel.
• Remove the adjustment panel from the window panel,
and cut the window panel to the same height as the
window.
• Open the window sash and place the window panel
on the window frame.
• Secure the window panel to the window frame with
2 screws.
Foam seal A
(adhesive type)
Window
panel
559mm - 609mm
Hole
Projection
Insect guard net
Rain guard
“A”
Window
panel
Projection
“A”
Window
panel
Bushing
Adjustment panel
Exhaust cover
Window
panel
Cut
Foam seal A
(adhesive type)
Window
panel
559mm - 609mm
Hole
Projection
Insect guard net
Rain guard
“A”
Window
panel
Projection
“A”
Window
panel
Bushing
Adjustment panel
Exhaust cover
Window
panel
Cut
Foam seal A
(adhesive type)
Window
panel
559mm - 609mm
Hole
Projection
Insect guard net
Rain guard
“A”
Window
panel
Projection
“A”
Window
panel
Bushing
Adjustment panel
Exhaust cover
Window
panel
Cut
Foam seal A
(adhesive type)
Window
panel
559mm - 609mm
Hole
Projection
Insect guard net
Rain guard
“A”
Window
panel
Projection
“A”
Window
panel
Bushing
Adjustment panel
Exhaust cover
Window
panel
Cut
